Zebra TC51 User Manual

6 - 16 TC51 User Guide

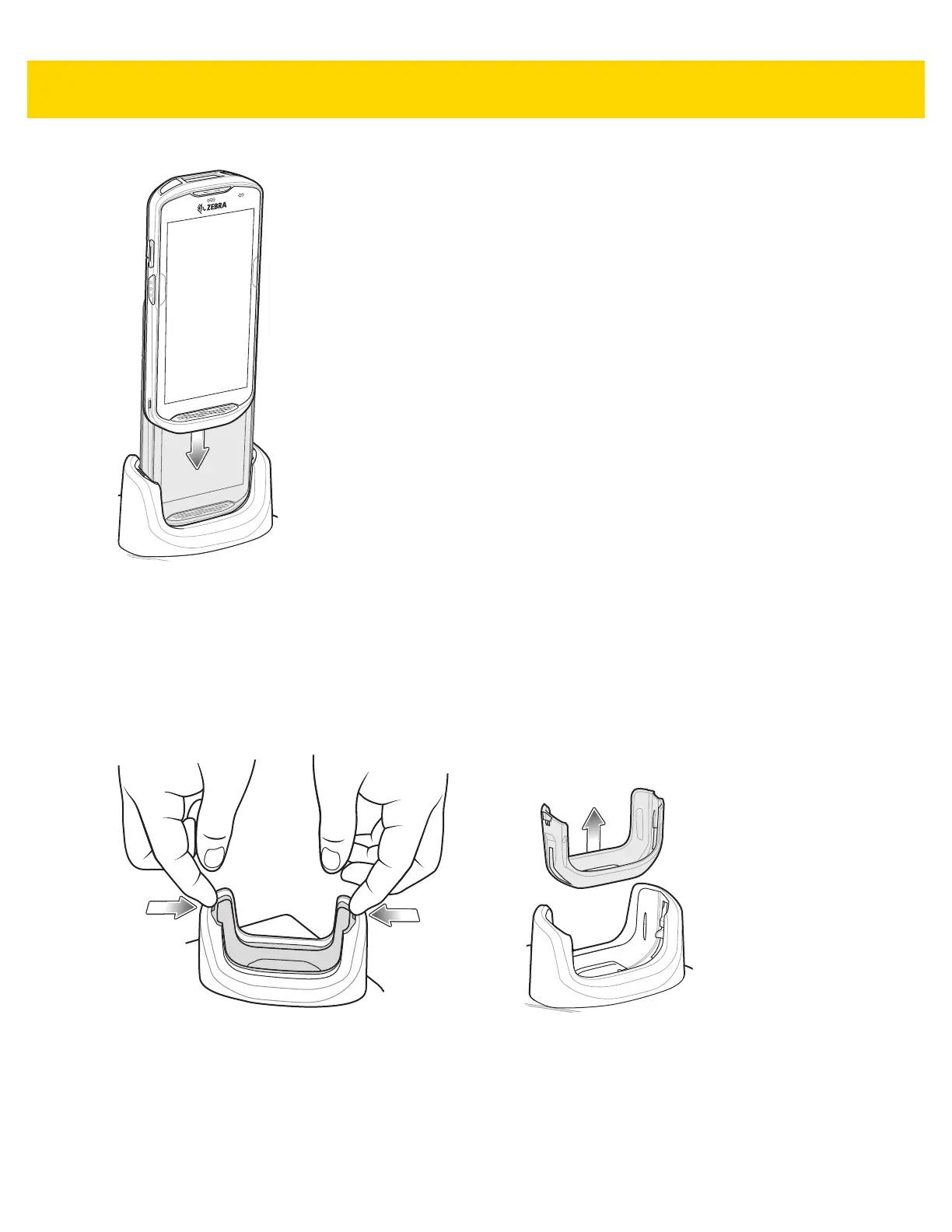

Figure 6-12 TC51 Battery Charging
2. Ensure the TC51 is seated properly.
Inserting a TC51 with Rugged Boot into Cradle
Each cradle cup has an insert that must be removed prior to inserting the TC51 with Rugged Boot. Remove the
insert and then insert the TC51 into the cup.
Figure 6-13 Remove Insert from Cup
Battery Charging
The device’s Charging/Notification LED indicates the status of the battery charging in the device. See Table 1-3 on
page 1-8 for device charging status. The 4,300 mAh (typical) / 4,050 mAh (minimum) battery charges from fully
depleted to 90% in approximately 2.5 hours and from fully depleted to 100% in approximately three hours.

Zebra TC51 Specifications

General

RFID reader	-
Scanner type	2D
Product color	Black, Silver
Phone function	Yes
International Protection (IP) code	IP68
Display diagonal	5 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	128 GB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	4300 mAh
Number of cores	8
Processor model	650
Processor family	Snapdragon
Processor frequency	1.8 GHz
Processor manufacturer	Qualcomm
Operating system version	6.0
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Security algorithms	AES, EAP-TTLS, FIPS 140-2, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA2, WPA2-Enterprise
Rear camera aperture number	2.4
Rear camera resolution (numeric)	13 MP
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	18.6 mm
Width	75.5 mm
Height	155 mm
Weight	249 g
