Zebra TC51 - Removing the Device from the Trigger Handle

6 - 40 TC51 User Guide

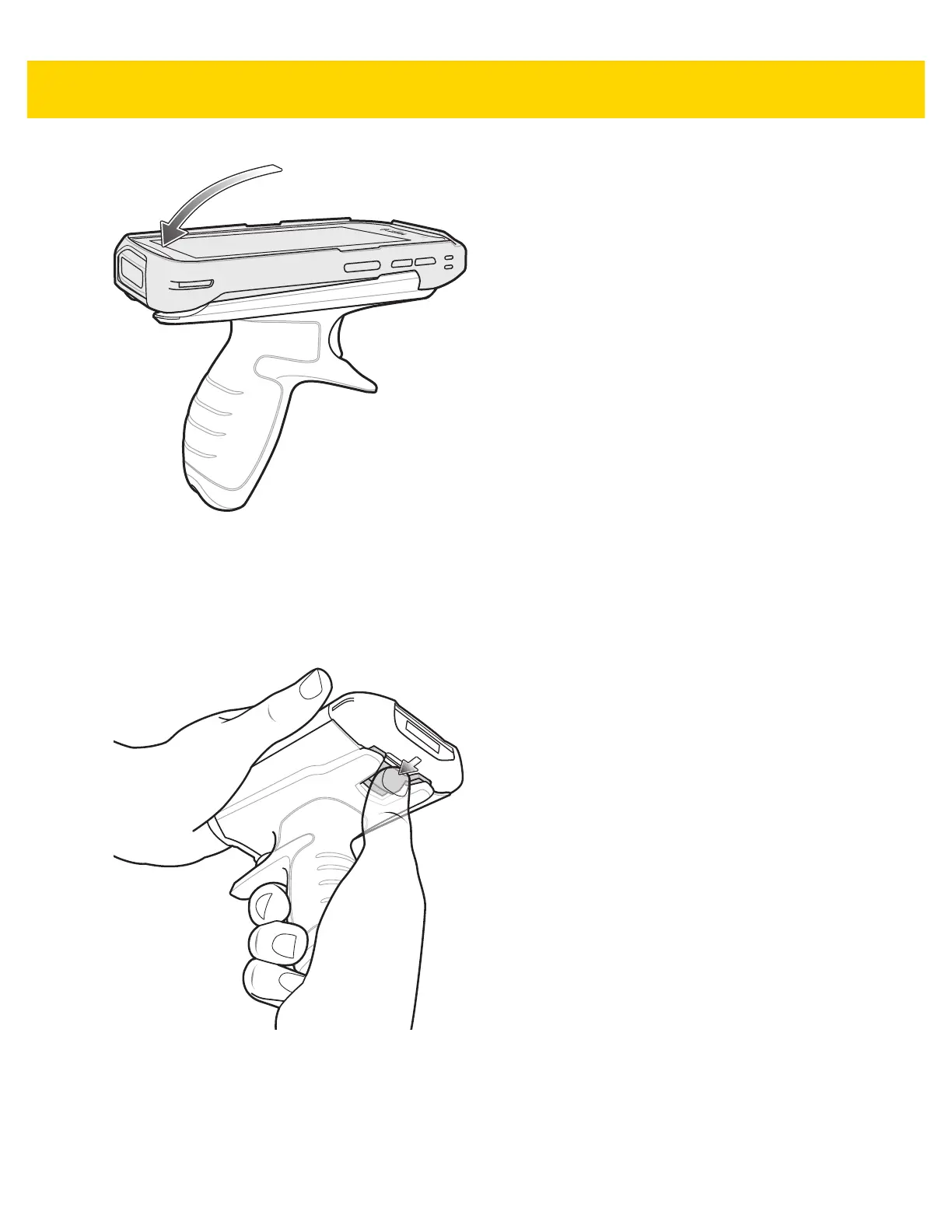

Figure 6-49 Rotate Device onto Trigger Handle
Removing the Device from the Trigger Handle
To remove the device from the Trigger Handle:
1. Press Trigger Handle release latch.
Figure 6-50 Press Release Latches
2. Slide the device forward and then rotate the bottom of the device up.
