6 - 8 TC51 User Guide
4-Slot Charge Only Cradle with Battery Charger
The 4-Slot Charge Only Cradle with Battery Charger:
• Provides 5 VDC power for operating the TC51.
• Simultaneously charges up to four TC51s and up to four spare batteries using the Battery Charger Adapter.

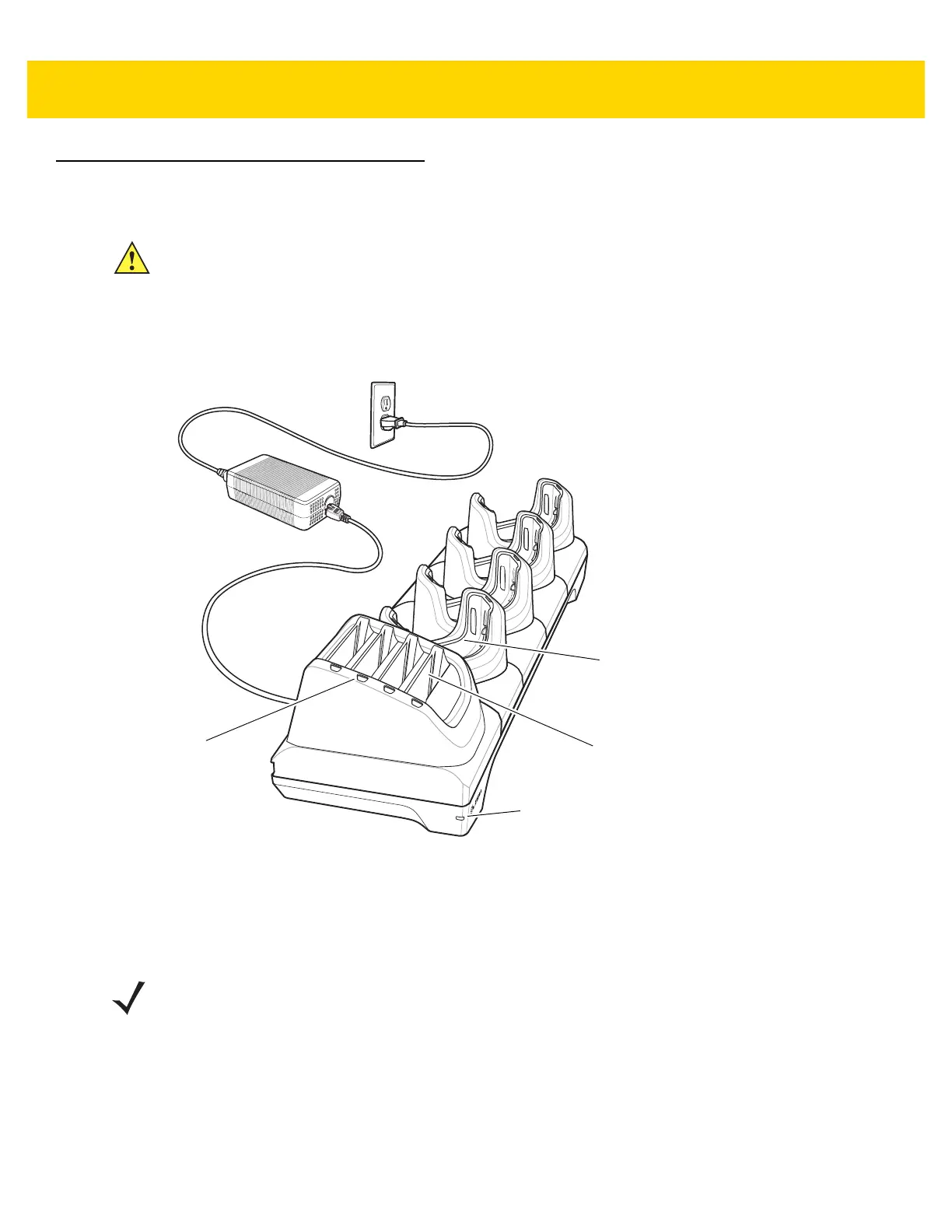

Figure 6-4 4-Slot Charge Only Cradle with Battery Charger
Charging the TC51
To charge a device:
1. Insert the TC51 into a slot to begin charging.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
7-2.
Spare Battery
Charging LED
Power LED
Spare Battery Slot
TC51 Charing Slot
NOTE If the device has a Rugged Boot, remove the cup insert before inserting the device. See TC51 Touch
Computer Integrator Guide for Android Version 6.0.1 for details.
