Getting Started 1 - 3

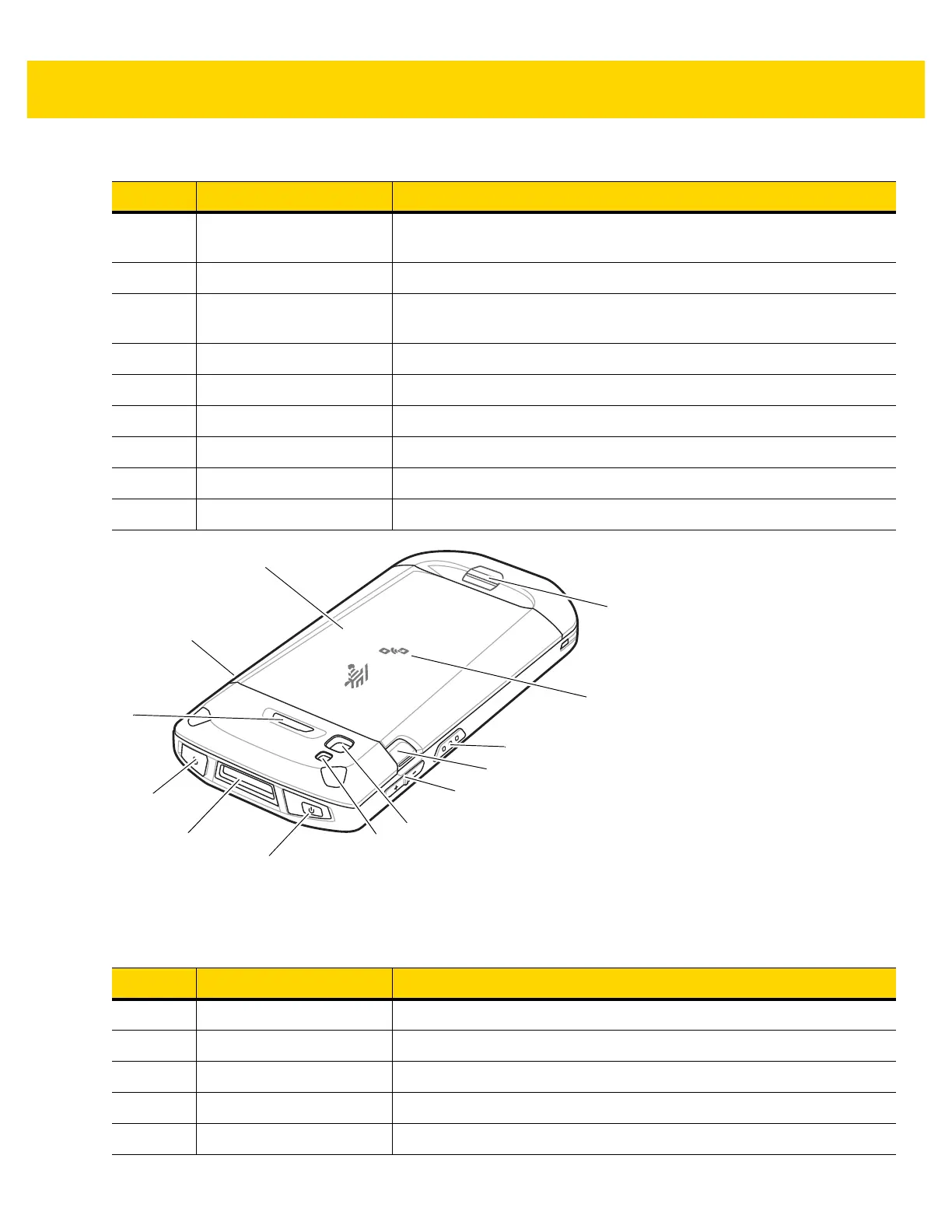

Figure 1-2 TC51 Rear View
6 Speaker Provides audio output for video and music playback. Provides audio in
speakerphone mode.
7 Touch Screen Displays all information needed to operate the TC51.
8 Charging/Notification LED Indicates battery charging status while charging and application
generated notifications.
9 Light Sensor Determines ambient light for controlling display backlight intensity.
10 Proximity Sensor Determines proximity for turning off display when in handset mode.
11 Microphone Use for communications in Speakerphone mode.
12 Data Capture LED Indicates data capture status.
13 Receiver Use for audio playback in Handset mode.
14 Front Camera (TC51-HC) Takes photos and videos.
Table 1-2 Back View Features
Number Item Function
15 Battery Provides power to the device.
16 Battery Release Latches Press to remove the battery.
17 Programmable Button Programmable.
18 Headset Jack (TC51 Standard) For audio output to headset.
19 Exit Window Provides data capture using the imager.
Table 1-1 Front View Features (Continued)
Number Item Function
17
24
23
22
19
15
20
18
16
16
21
25
26
