Getting Started 1 - 9
4. Wait for the LED to turn off.
5. If hand strap is attached, remove hand strap.
6. Press the two battery latches in.

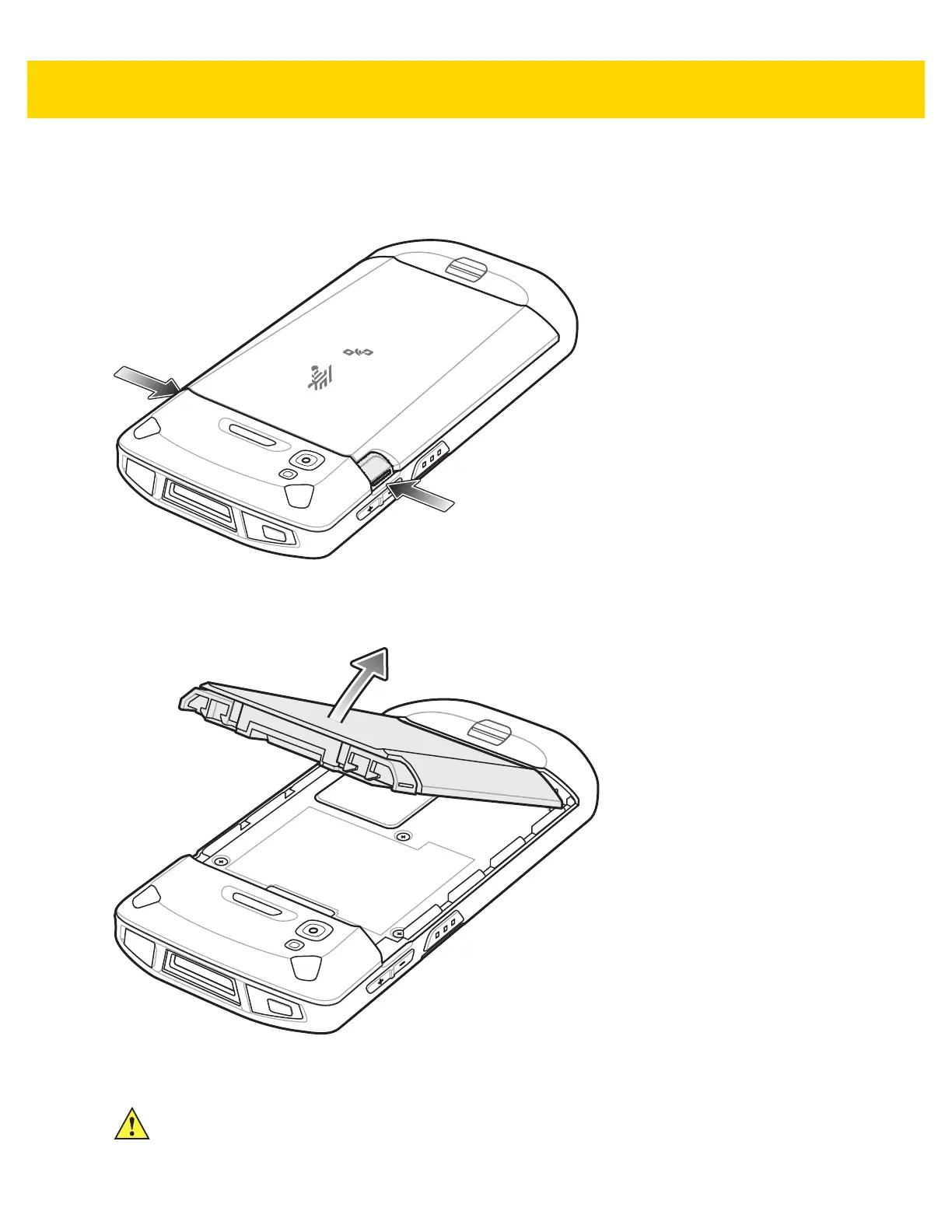

Figure 1-10 Press Battery Latches
7. Lift the battery from the TC51 or TC51-HC.
Figure 1-11 Lift the Battery
8. Insert the replacement battery, bottom first, into the battery compartment in the back of the TC51 or TC51-HC.
CAUTION Replace the battery within 90 seconds. After 90 seconds the device reboots and data may be lost.
