Zebra ZE500 User Manual

27
Introduction

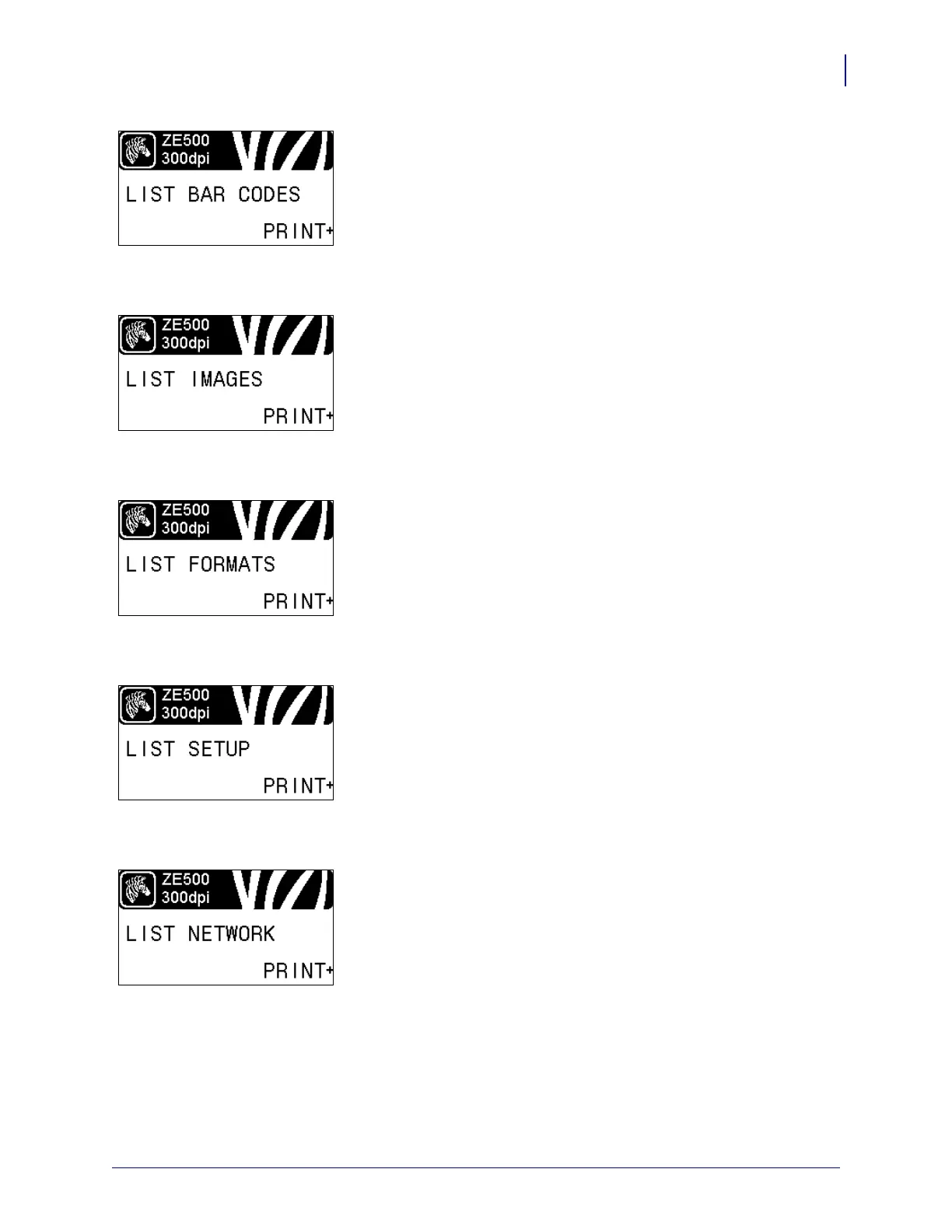

Control Panel Display
8/23/12 P1051584-002
Print Bar Code List
This option prints a label that lists the available bar codes in the
print engine. Bar codes may be stored in RAM or Flash memory.
See Print Information on page 84 for more information.
Print Image List
This option prints a label that lists the available images stored in
the print engine’s RAM, Flash memory, or optional memory card.
See Print Information on page 84 for more information.
Print Format List
This option prints a label that lists the available formats stored in
the print engine’s RAM, Flash memory, or optional memory card.
See Print Information on page 84 for more information.
Print Configuration Label
This option prints a configuration label (see Figure 12
on page 131), which lists the current print engine configuration.
See Print Information on page 84 for more information.
Print Network Configuration Label
This option prints a configuration label (see Figure 13
on page 131), which lists the settings for any print server that is
installed.
See Print Information on page 84 for more information.

Zebra ZE500 Specifications

General

Print technology	-
Maximum resolution	300 x 300 DPI
Maximum printing width	168 mm
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	64 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Processor frequency	133 MHz
Page description languages	XML, ZPL, ZPL II
Display	LCD
Product color	Black
Housing material	Metal
Core diameter	25.4 mm
Ribbon length	600 m
Maximum label width	180 mm
Maximum media length	3810 mm
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 71 °C
Operating temperature (T-T)	32 - 104 °F
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	438 mm
Width	245 mm
Height	300 mm
Weight	17300 g
