Zebra ZE500 User Manual

29
Introduction

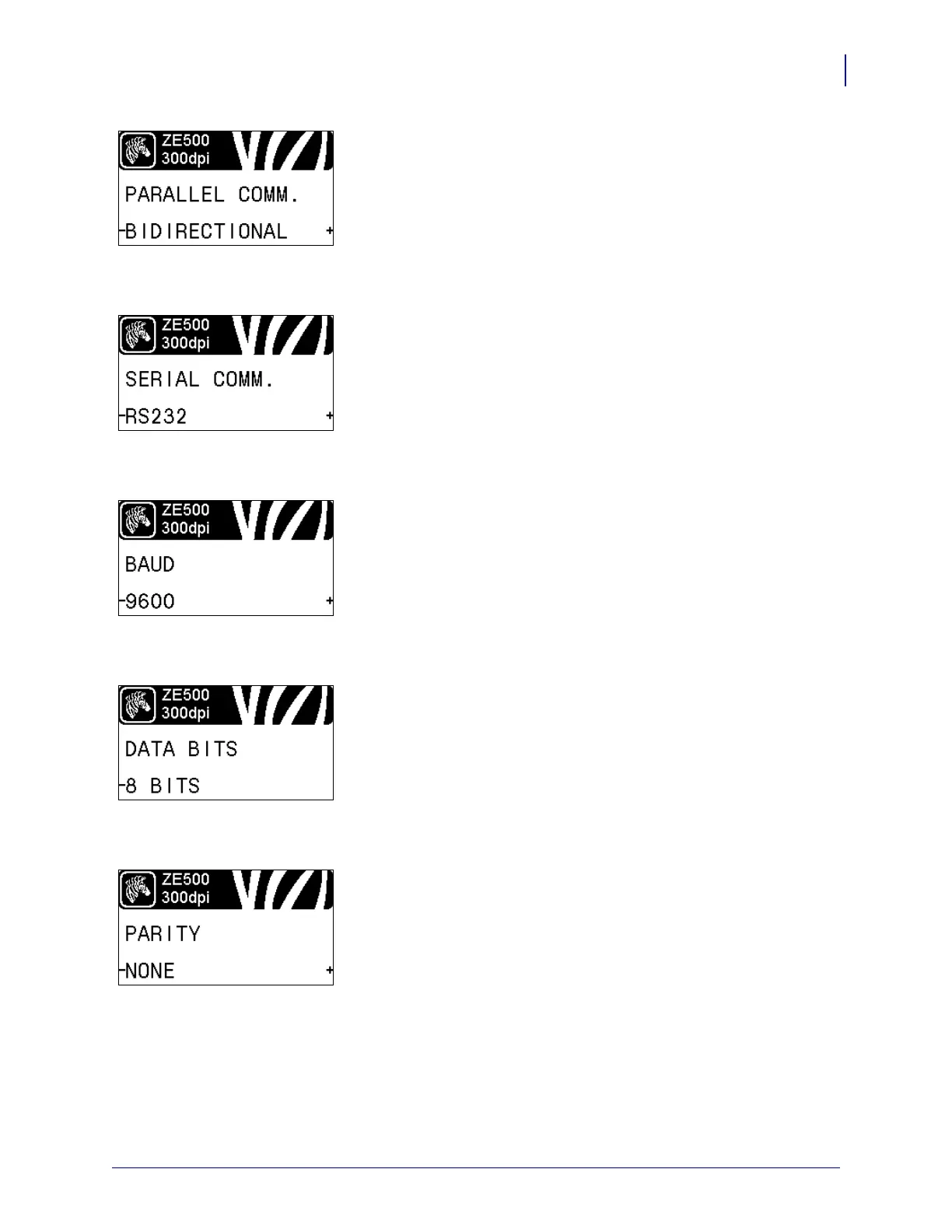

Control Panel Display
8/23/12 P1051584-002
Set Parallel Communications
Select the communications port that matches the one being used by
the host computer.
See Parallel Communications on page 96 for more information.
Set Serial Communications
Select the communications port that matches the one being used by
the host computer.
See Parallel Communications on page 96 for more information.
Set the Baud Rate
Select the baud value that matches the one being used by the host
computer.
See Baud Rate on page 97 for more information.
Set the Data Bits Value
Select the data bits value that matches the one being used by the
host computer.
See Data Bits on page 97 for more information.
Set the Parity Value
Select the parity value that matches the one being used by the host
computer.
See Parity on page 97 for more information.

Zebra ZE500 Specifications

General

Print technology	-
Maximum resolution	300 x 300 DPI
Maximum printing width	168 mm
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	64 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Processor frequency	133 MHz
Page description languages	XML, ZPL, ZPL II
Display	LCD
Product color	Black
Housing material	Metal
Core diameter	25.4 mm
Ribbon length	600 m
Maximum label width	180 mm
Maximum media length	3810 mm
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 71 °C
Operating temperature (T-T)	32 - 104 °F
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	438 mm
Width	245 mm
Height	300 mm
Weight	17300 g
