Introduction
Control Panel Display
34
P1051584-002 8/23/12

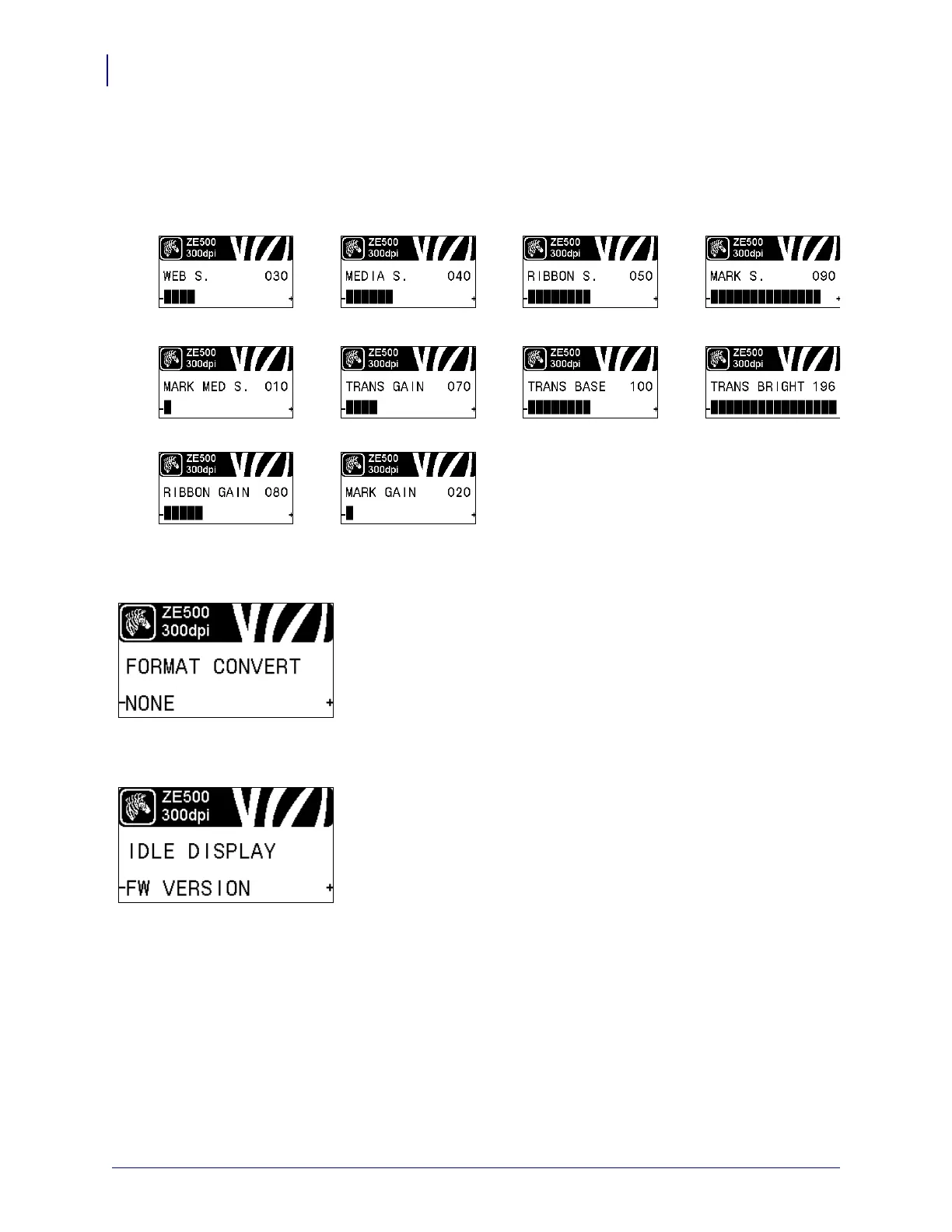

View Sensor Settings
The following parameters are automatically set during the
calibration procedure and should be changed only by a qualified
service technician.
Select Format Conversion Scaling Factor
Selects the bitmap scaling factor. The first number is the original
dots per inch (dpi) value; the second, the dpi to which you would
like to scale.
See Format Conversion on page 87 for more information.
Select the Idle Display
Select the information shown on the printer’s display when the
printer is idle.
See Idle Display on page 88 for more information.
