5.5 Data Analysis
Also called Live Data, Data List, Data Stream or Current Data by the automakers, it is one of
the basic diagnostic functions that shows the sensor input value readings and the actuator
status of a control system to monitor the control system’s operation of both input and output
sides.
⚫ Data Reading

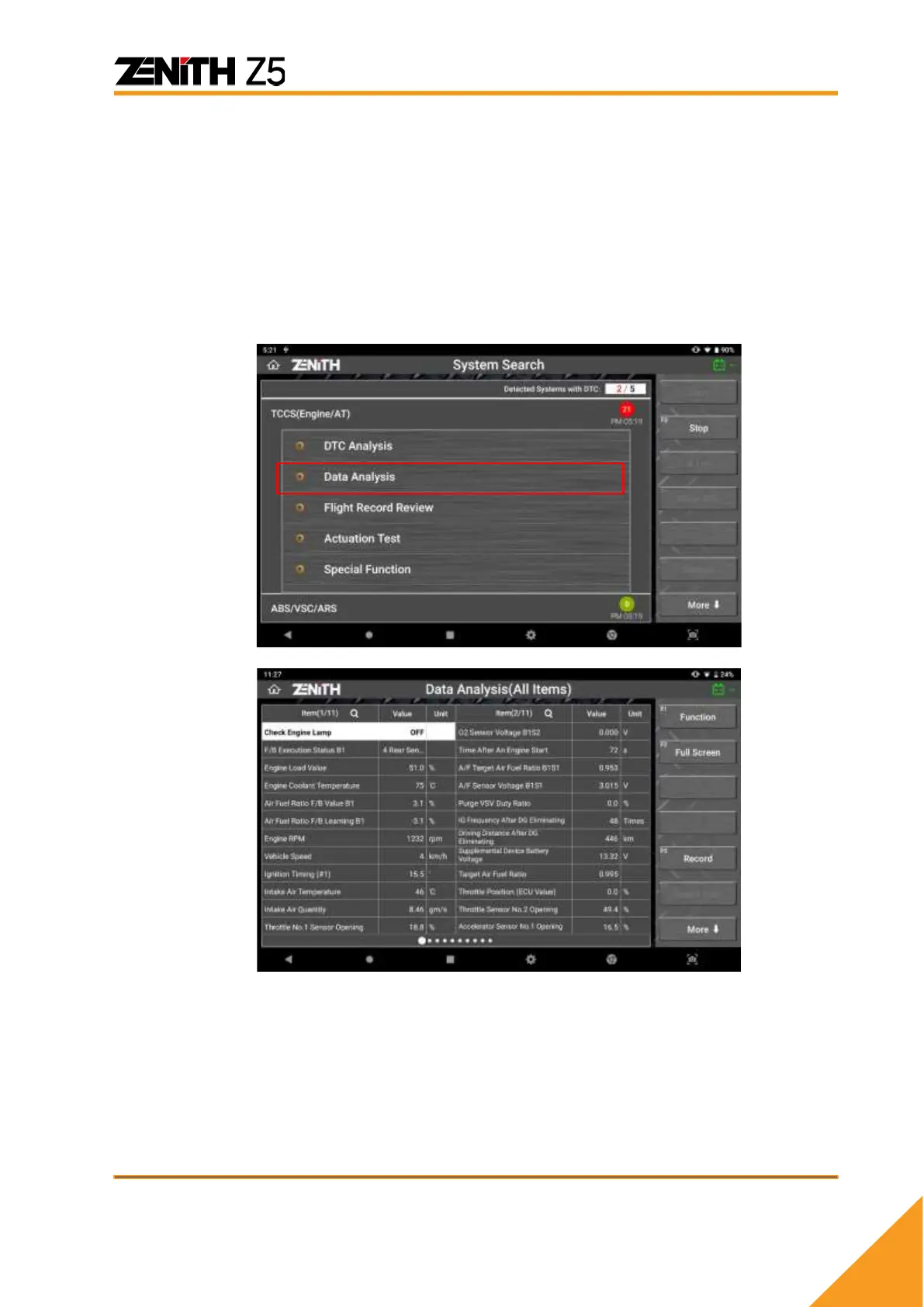

Select [Data Analysis] from the menu then the data parameters are listed as
shown below.
