Chapter 6. OBD-II Mode (Service)
OBD-II Function
OBD-II function is used for diagnosis of OBD-II or EOBD complaint vehicle’s emission-
related powertrain control system and inter-system network that support the industrial
standard protocols.

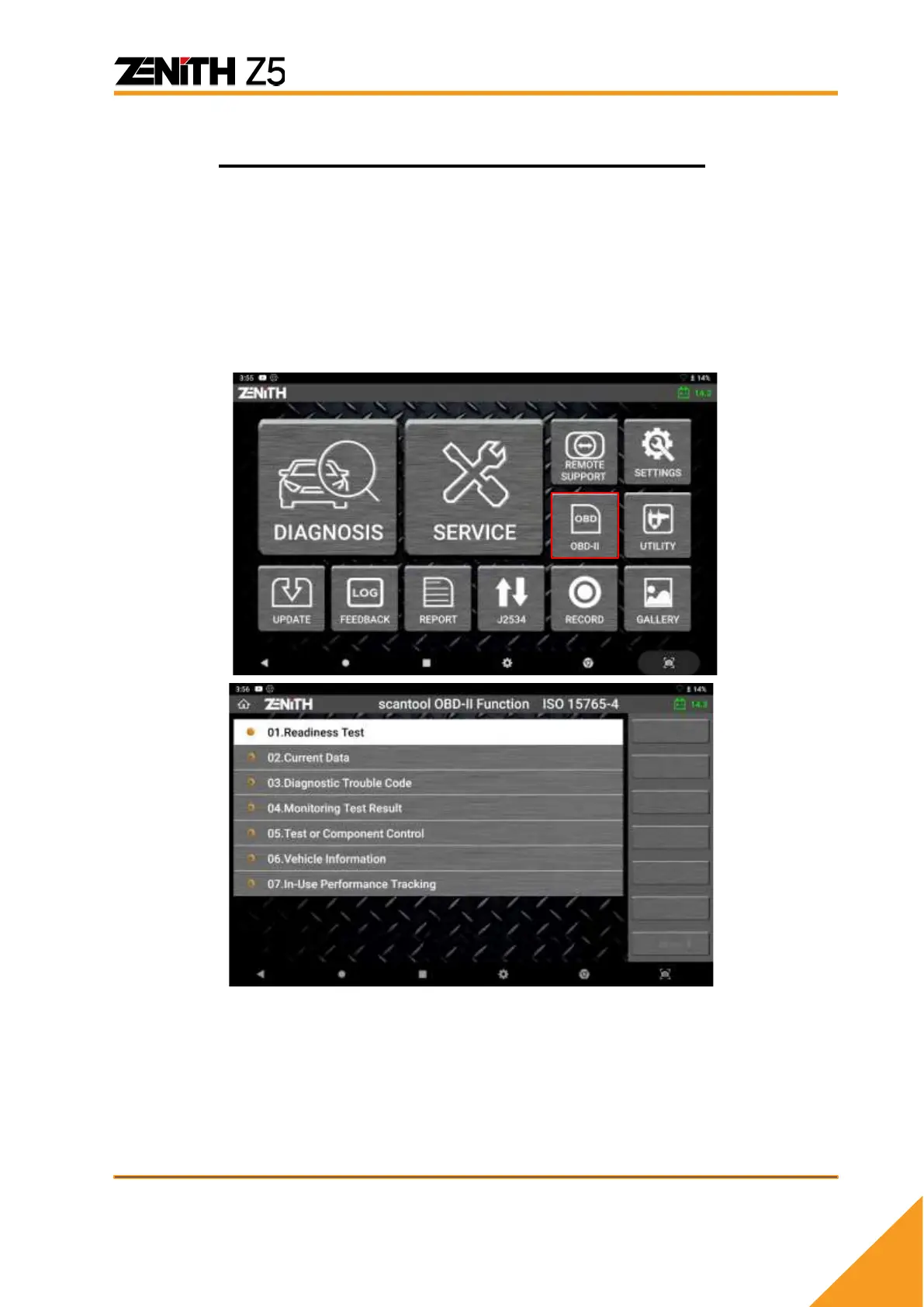

Please extend the main DLC cable to the vehicle side diagnostic socket and select
[OBD-II].
Typical OBD2 menu for a CAN-Bus type vehicle
