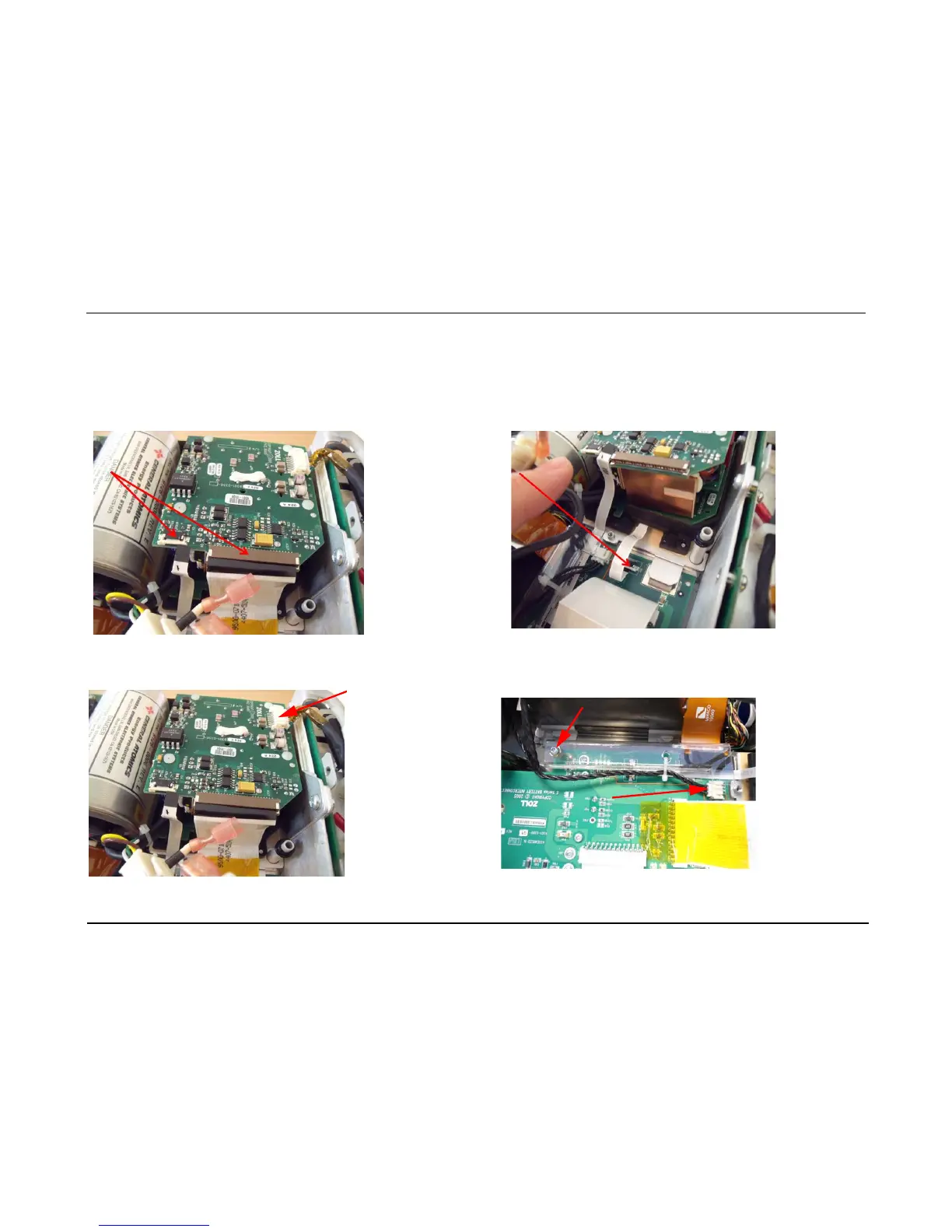

1. Disconnect small flat cable by lifting up jams on each side and

pull straight out, then disconnect larger cable by pulling straight

out.

2. Disconnect J104 cable by lifting up jams on each side and

pull straight out.

3. Disconnect colored cable (MFC signal cable). Pull high voltage

module straight out.

4. Disconnect black cable. Remove screw holding plastic

cover in place. Slide plastic cover out.

E Series Service Manual

9650-1450-01 Rev. D 5-23

High Voltage Assembly Removal
