ZOLL E Series Service Manual

E Series Service Manual
5-20 9650-1450-01 Rev. D

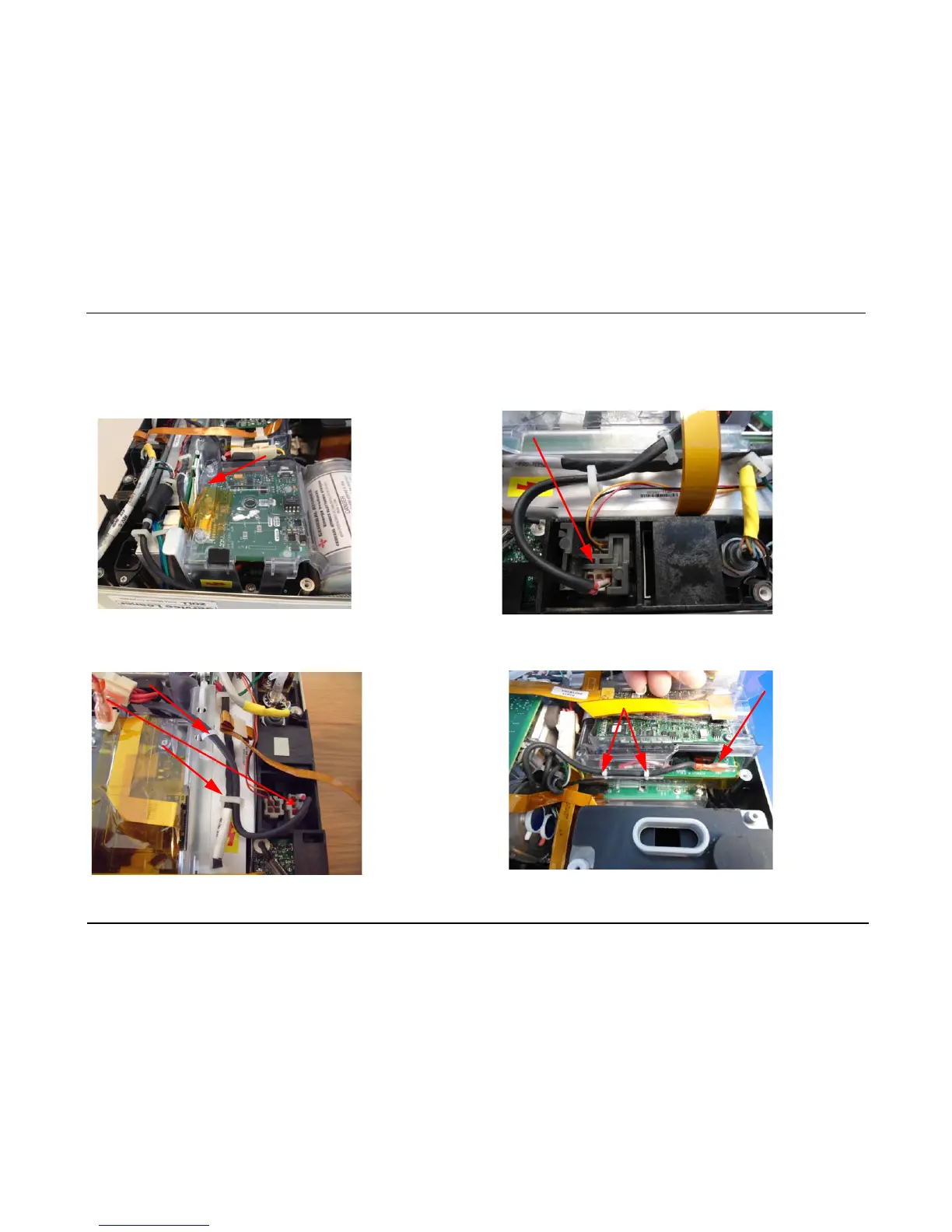

Bridge Board Removal
1. Remove high voltage isolator (clear) by removing tape and then
rotating around MFC signal cable.
2. Remove MFC retainer (if present).
3. Remove MFC socket from the chassis and wire loom. Cut tie
wrap from bridge board frame.
4. Cut the 2 cable ties, and disconnect spade connector.

ZOLL E Series Specifications

General

Display Type	Color LCD
ECG Monitoring	Yes
Pacing	Yes
Pacing Rate	30-180 ppm
SpO2	Optional
NIBP	Optional
EtCO2	Optional
Printer	Integrated
Data Management	Yes
CPR Feedback	Yes
IP Rating	IP55
Pacing Output	0 - 140 mA
Battery Type	Rechargeable lithium ion
Battery Life	4 hours
Energy Selection	1-360 Joules
Display Size	6.5 inches
