ZOLL E Series Service Manual

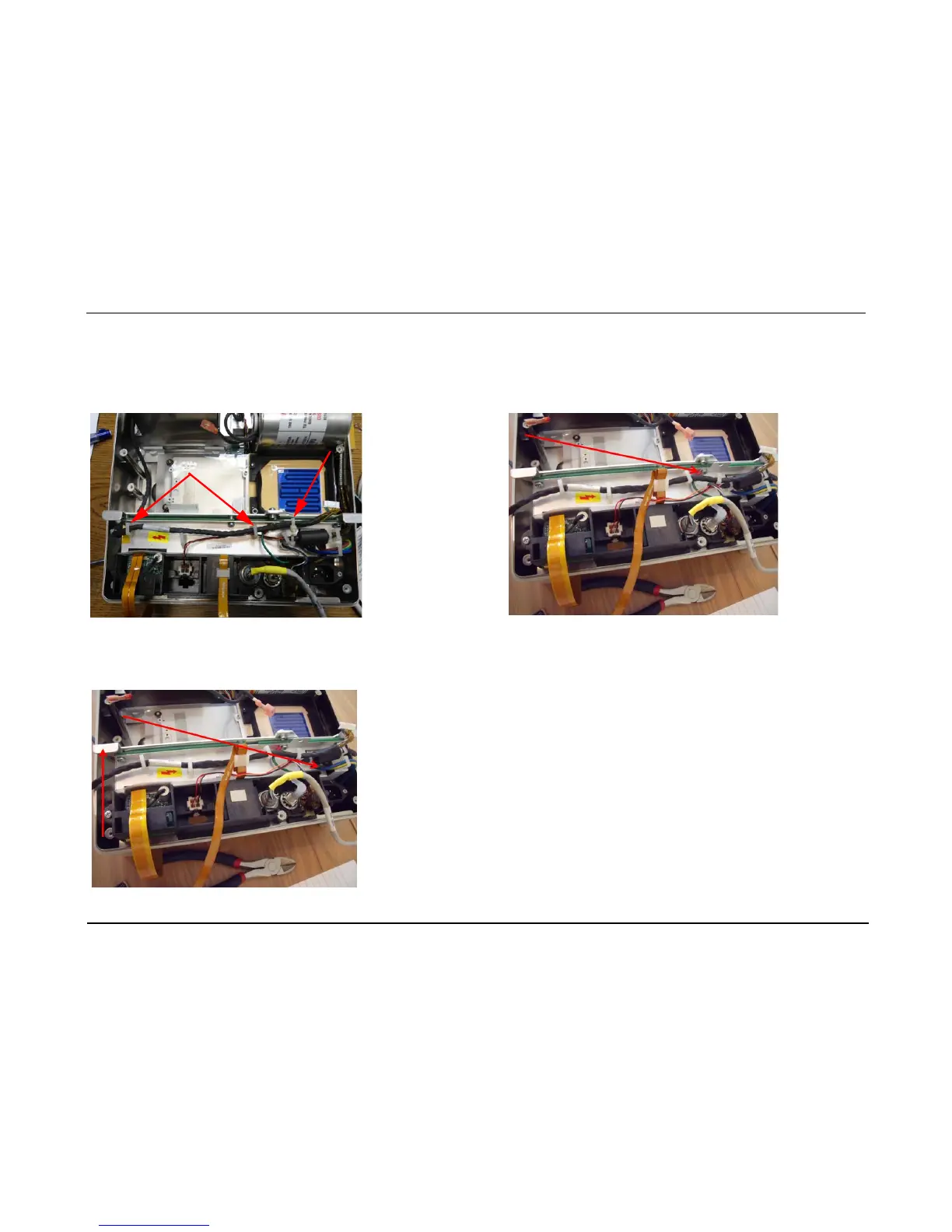

1. Remove cables from cable harnesses, and disconnect tie wrap
on the MFC signal cable.
2. Remove screw from A/C ground cable.
3. Disconnect A/C connector cable by pulling down on latch and
pull towards you. Remove cable from wire loom. Lift A/C charger
assembly out of the case.
E Series Service Manual
5-26 9650-1450-01 Rev. D
A/C Charger Assembly Removal

ZOLL E Series Specifications

General

Display Type	Color LCD
ECG Monitoring	Yes
Pacing	Yes
Pacing Rate	30-180 ppm
SpO2	Optional
NIBP	Optional
EtCO2	Optional
Printer	Integrated
Data Management	Yes
CPR Feedback	Yes
IP Rating	IP55
Pacing Output	0 - 140 mA
Battery Type	Rechargeable lithium ion
Battery Life	4 hours
Energy Selection	1-360 Joules
Display Size	6.5 inches
