E Series Service Manual
5-28 9650-1450-01 Rev. D

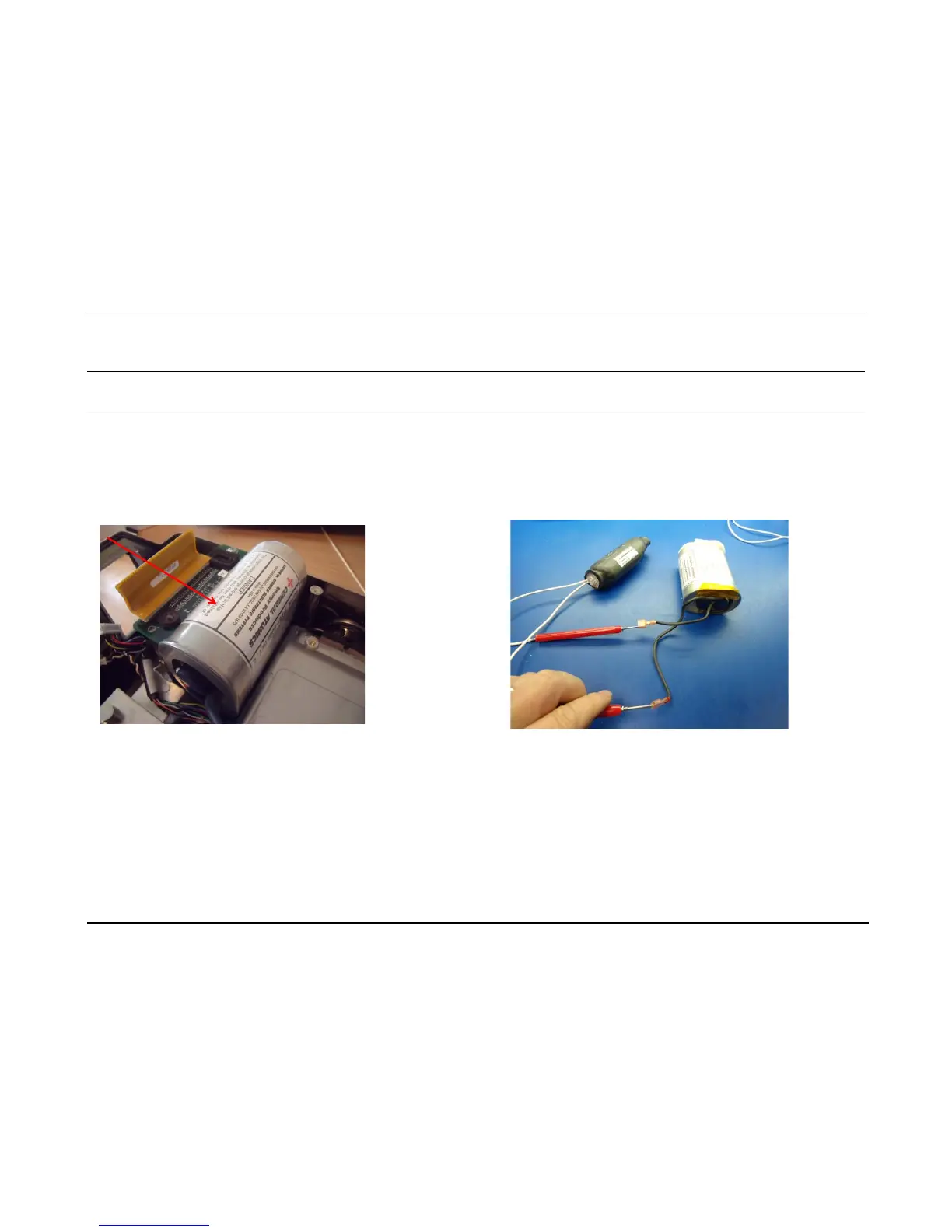

Capacitor Removal
1. Lift capacitor out. 2. Bleed the excess voltage using a resistor with values of
approximately 5 kohms, 25 watts for 10-20 seconds.
Measure the voltage on the capacitor terminals.
WARNING! This unit may contain lethal voltages. You MUST completely discharge the high voltage capacitor before removing from unit. DO NOT SHORT
THE TERMINAL ENDS OF THE CAPACITOR.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ZOLL E Series and is the answer not in the manual?

ZOLL E Series Specifications

General IconGeneral
Display TypeColor LCD
ECG MonitoringYes
PacingYes
Pacing Rate30-180 ppm
SpO2Optional
NIBPOptional
EtCO2Optional
PrinterIntegrated
Data ManagementYes
CPR FeedbackYes
IP RatingIP55
Pacing Output0 - 140 mA
Battery TypeRechargeable lithium ion
Battery Life4 hours
Energy Selection1-360 Joules
Display Size6.5 inches
