Displaying the CPR Compressions
Bar Graph
To manually display the CPR compression bar graph,
press the Wave 2 softkey until the bar graph is displayed.

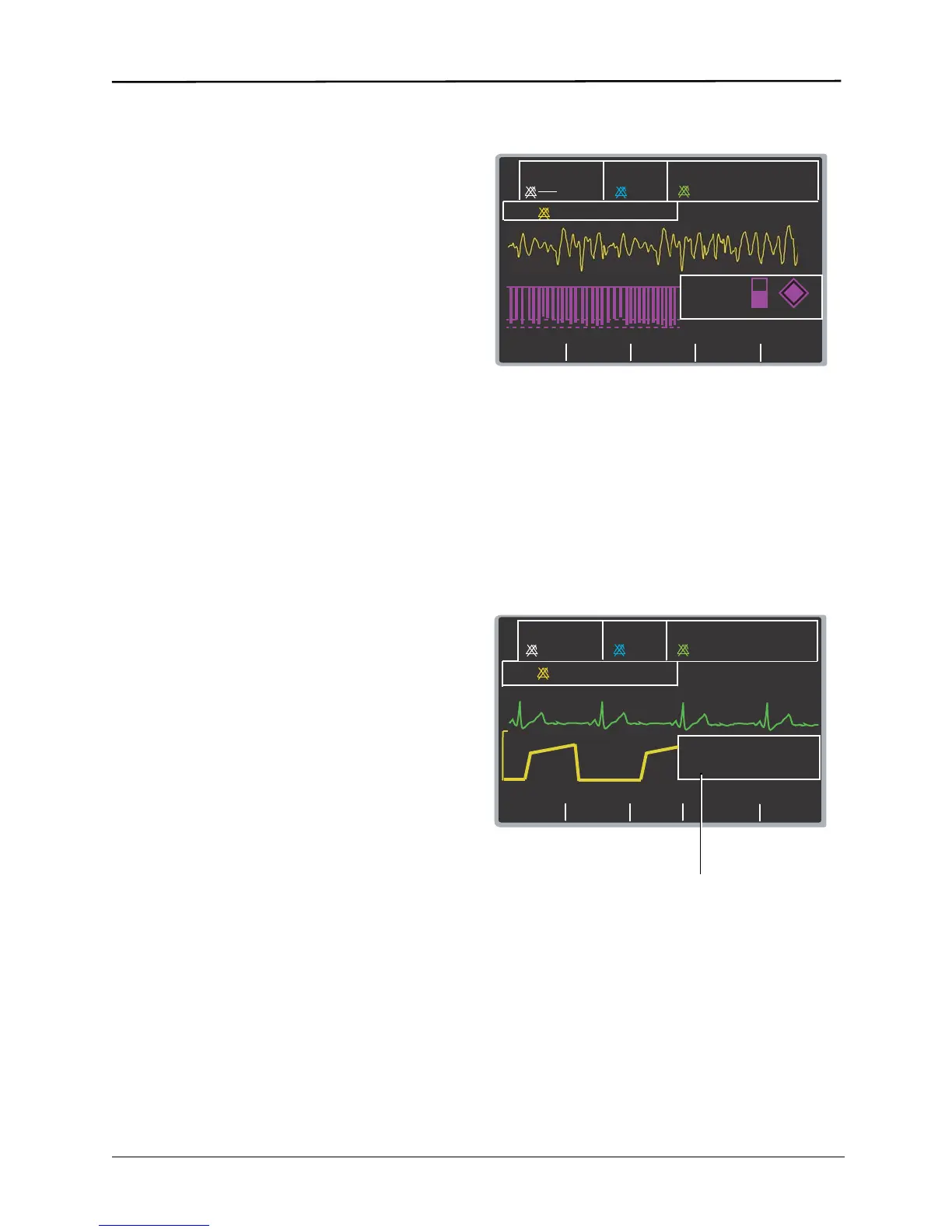

CPR Dashboard
Whenever CPR-D-padz or CPR stat-padz are connected
to the E Series unit and the CPR Dashboard is
configured on, the unit illuminates the CPR Dashboard,
replacing the right half of the Wave 2 display area. You
can use the Wave 2 softkey to select other data for Wave
2, including full width displays of the waveforms.
The Dashboard includes the indicators described in the
following sections.
CPR Feedback Indicators and CPR Index
The diamond-shaped figure provides a quick, overall
indicator of how well the rescuer's combined rate and
depth of chest compressions match the AHA/ERC
recommendations for adult CPR.
Before chest compressions begin (and after each shock),
the Chest Compression Indicator appears as a hollow
outline. This indicator starts to fill with color as
compressions begin (filling from the center out), and
becomes filled when consistent chest compression
depths exceed 1.5 or 2 inches and the compression rate
exceeds 90 compressions per minute (cpm)
simultaneously. Should the chest compression rate or
depth begin to fall below the AHA/ERC recommended
levels, the indicator will only partially fill to indicate the
need for more vigorous efforts. When compressions
cease, the indicator’s fill level gradually decreases until a
hollow outline appears.
The Compression Release Bar shows the release of the
chest compression by the rescuer. When the release of
the chest is properly administered, the bar will fill all the
way to the top.
CPR Rate and Depth Display
If the CPR Dashboard is configured On and the CPR Idle
Time is not displayed, the Rate and Depth values will be
displayed in the CPR Dashboard. The values will be
highlighted and displayed in red if they are below the
appropriate values.
When an appropriate rate and depth are achieved, these
labels are not highlighted.
CPR Idle Time Display
This display indicates the elapsed time in minutes and
seconds since the last detected chest compression.
When compressions are being delivered at a rate of 35
cpm or higher, the idle time is not displayed. The idle
time is displayed in place of the Rate and Depth values
after compressions have ceased for ten seconds. As
soon as new compressions are detected, the idle time is
removed from the screen.
If no compressions have been delivered for more than 20
minutes, dashes (---) will be displayed in this time field.
