E Series Service Manual

5-24 9650-1450-01 Rev. D

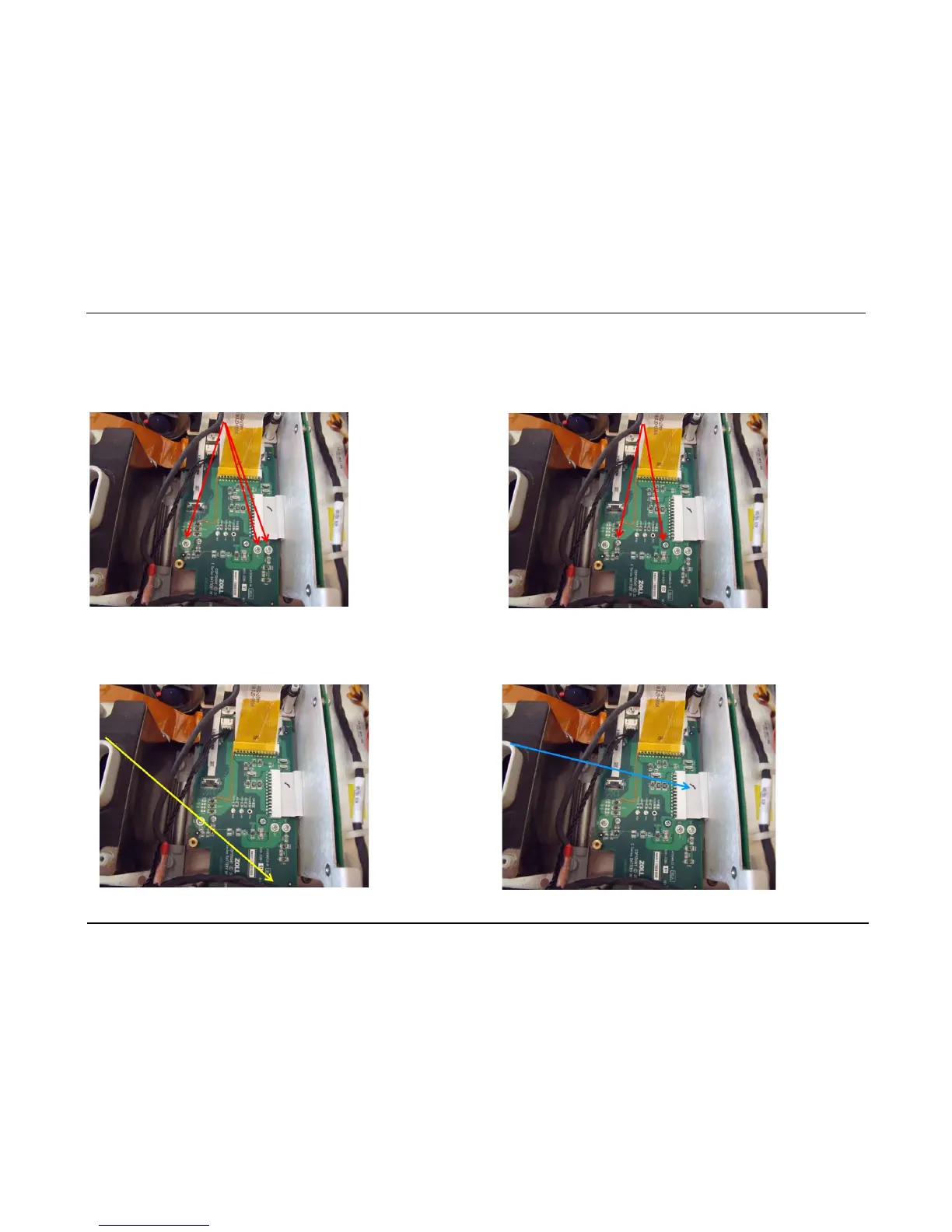

Battery Interconnect Board Removal

1. Remove the 3 machine screws from the battery pins (J100,

J101, J102).

2. Remove the 2 screws securing the board.

3. Gently remove board by lifting from this end. 4. Disconnect flat cable by pulling gently.

Note: Slightly lifting up on the charger assembly will allow for easier

removal.
