and pacing current are also recorded. If async pace is active, the annotation “ASYNC PACE” is recorded. AED units
additionally include shock count and AED mode annotations.
Analyze Format

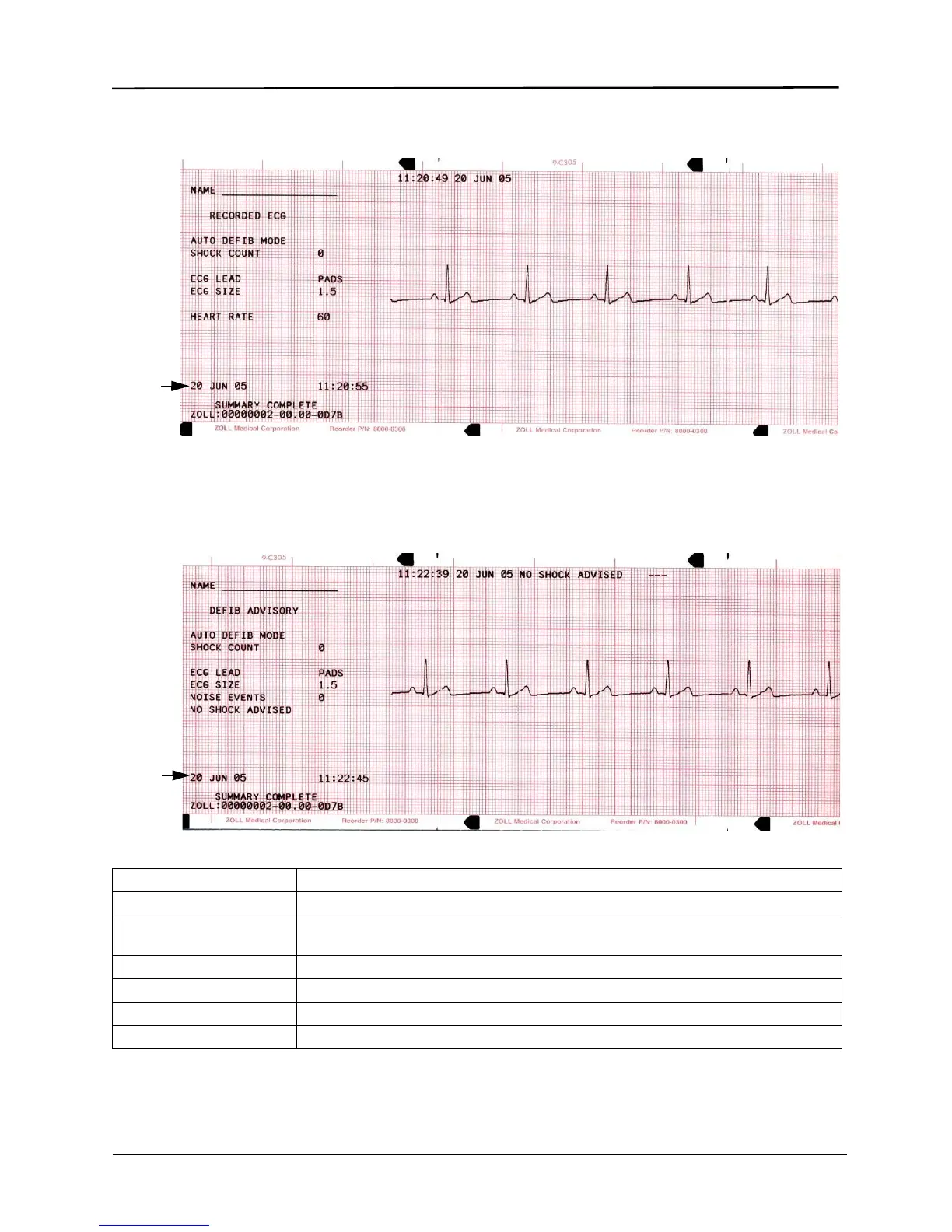

The summary report function records six seconds of pre analysis ECG and 12 seconds of ECG recorded during the
ECG analysis interval with the annotation “SHOCK ADVISED” or “NO SHOCK ADVISED.” AED units additionally
include shock count and AED mode annotations. The date/time printed on the top of the strip corresponds to the ECG
data occurring 6 seconds before the event.
The following annotations may also appear at the top of the Analyze Format printout:
Annotation Description
POOR PAD CONTACT The MFE Pads are detected as having poor connection.
ANALYSIS HALTED The ECG analysis is halted due to either the ANALYZE button being pushed or a fault
condition.
NOISY ECG Excessive noise is detected.
SHOCK ADVISED Shockable rhythm has been detected at the end of user-initiated ECG analysis.
NO SHOCK ADVISED No shockable rhythm has been detected at the end of user-initiated ECG analysis.
ECG TOO LARGE The amplitude of the ECG signal is too large for proper rhythm analysis.
