E Series Service Manual
9650-1450-01 Rev. D 5-33

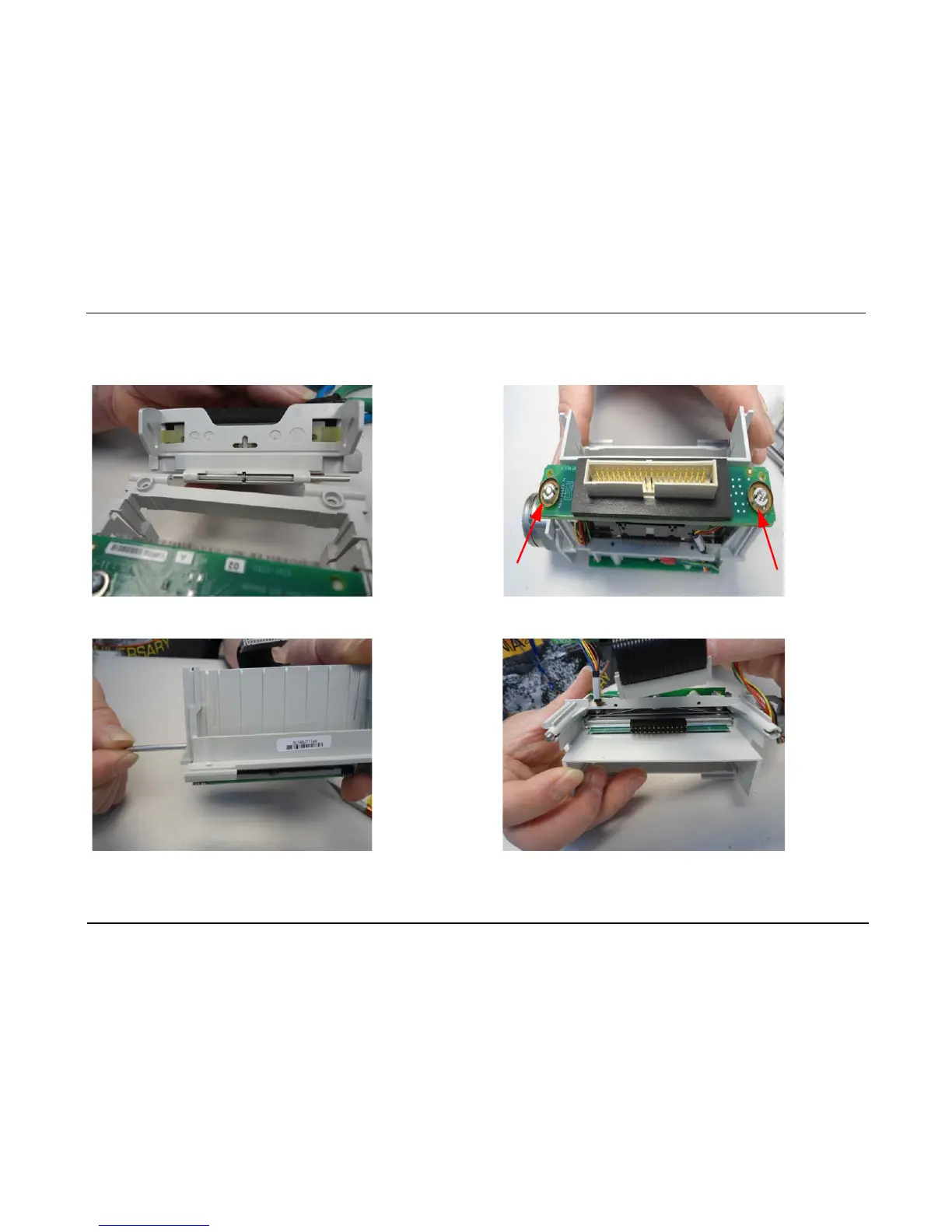

5. Pivot the roller housing back and it will come off. 6. Remove the two washers securing the printer interconnect
board by gently prying up on them. Remove the board.
7. Slide pivot pin out of printer frame. 8. Disconnect printer cable from print head.
