ZOLL E Series Service Manual


?

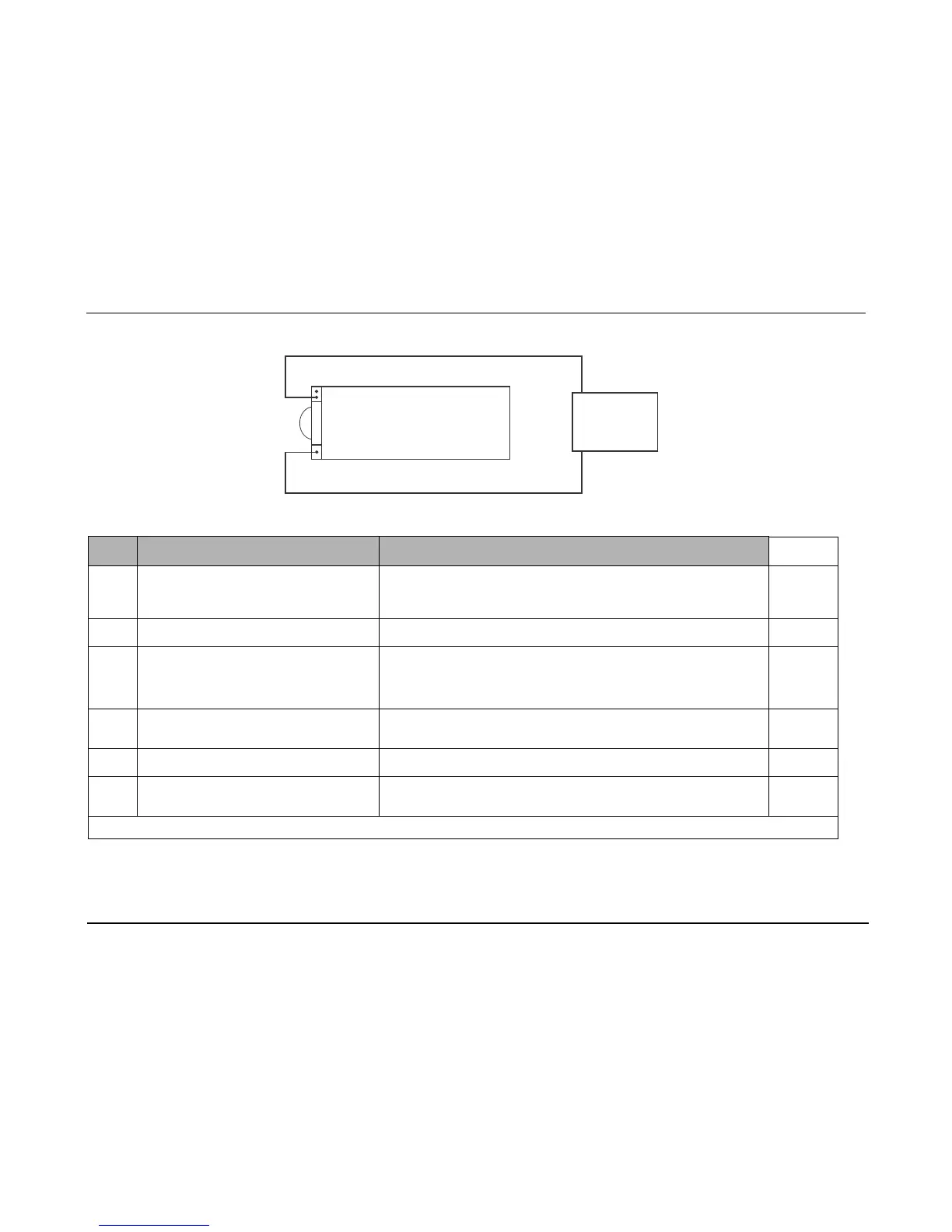

Battery Well
15 Amp
Supply

?
Red
Black
Do this... Verify that... Pass/Fail
4.1
o o
4.2
4.3
o o
4.4
o o
4.5
o o
4.6
o o
E Series Service Manual
1-12 9650-1450-01 Rev. D
Turn the selector switch to MONITOR.
(For AED units, turn the selector switch to ON
and select Manual mode.)
The unit does not turn on.
Turn the selector switch to the OF
F position.
Adjust the power supply voltage to 10.3V and
turn the selector switch to MONIT
OR (for AED
units, turn the selector switch to the ON
position).
The unit turns on.
Low Battery Test
Se
t voltage to 9.9V.
The unit does not display the LOW BATTERY message.
Set voltage to 9.4V. The unit displays the LOW BA
TTERY message within 30 seconds.
Shut Down Voltage Test
Se
t voltage to 8.5V.
The unit shuts off within 30 seconds.
Record your results on the Maintenance Tests Checklist.

ZOLL E Series Specifications

General

Display Type	Color LCD
ECG Monitoring	Yes
Pacing	Yes
Pacing Rate	30-180 ppm
SpO2	Optional
NIBP	Optional
EtCO2	Optional
Printer	Integrated
Data Management	Yes
CPR Feedback	Yes
IP Rating	IP55
Pacing Output	0 - 140 mA
Battery Type	Rechargeable lithium ion
Battery Life	4 hours
Energy Selection	1-360 Joules
Display Size	6.5 inches
