Chapter13IPv6PIM-DMConguration

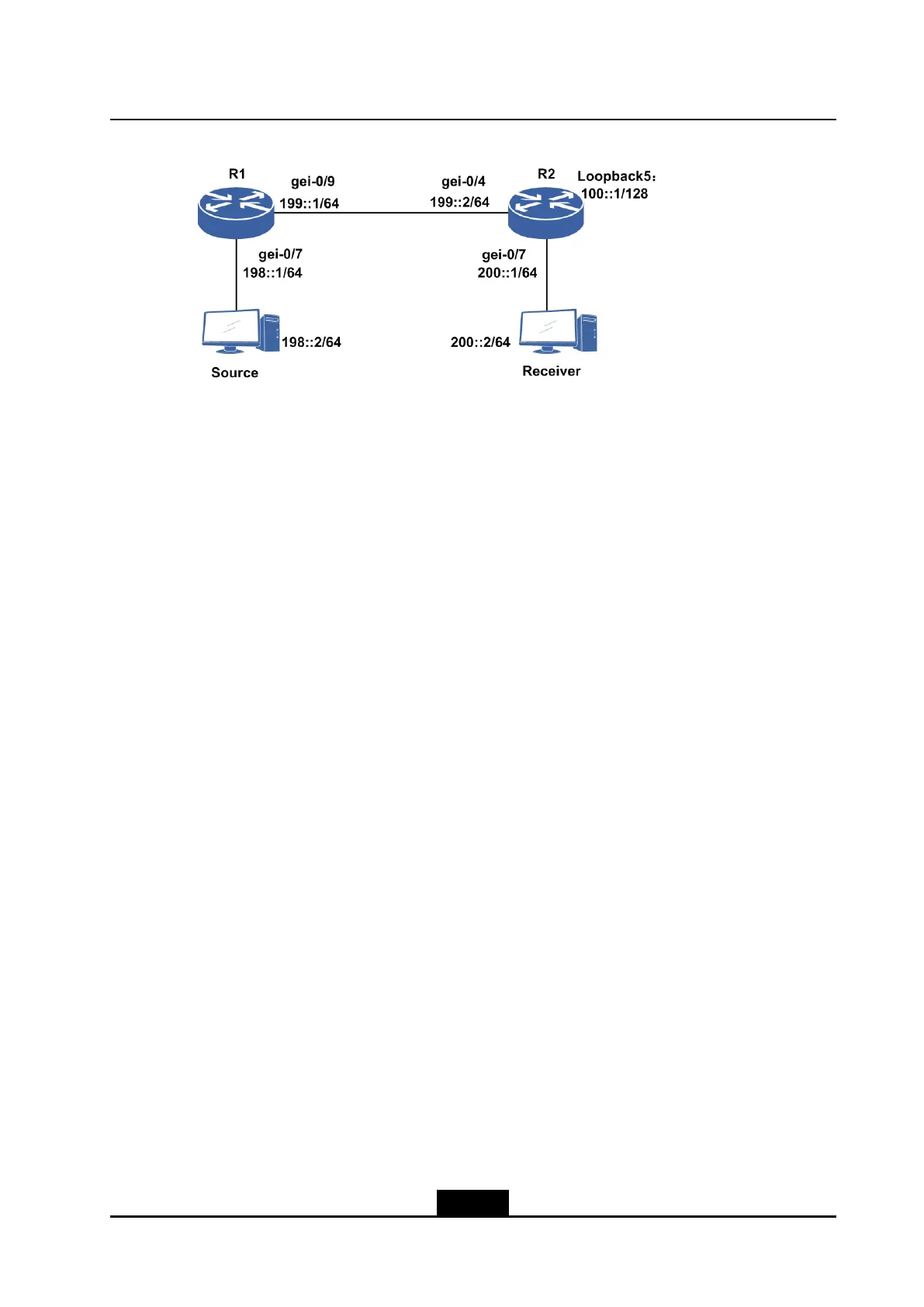

Figure13-1NetworkArchitectureofPIM-DMCongurationExample
CongurationFlow
1.Congureaddressesofrelatedinterfaces.
2.Entersthemulticastmode.
3.EnterstheIPv6PIMmode.
4.EnablethePIM-DMfunctionforcorrespondinginterfaces.
CongurationCommands
RunthefollowingcommandsonR1:
R1(config)#interfacegei-0/9
R1(config-if-gei-0/9)#ipv6enable
R1(config-if-gei-0/9)#ipv6address199::1/64
R1(config-if-gei-0/9)#noshutdown
R1(config-if-gei-0/9)#exit
R1(config)#interfacegei-0/7
R1(config-if-gei-0/7)#ipv6enable
R1(config-if-gei-0/7)#ipv6address198::1/64
R1(config-if-gei-0/7)#noshutdown
R1(config-if-gei-0/7)#exit
R1(config)#ipv6multicast-routing
R1(config-mcast-ipv6)#routerpim
R1(config-mcast-ipv6-pim)#interfacegei-0/9
R1(config-mcast-ipv6-pim-if-gei-0/9)#pimdm
R1(config-mcast-ipv6-pim-if-gei-0/9)#exit
R1(config-mcast-ipv6-pim)#interfacegei-0/7
R1(config-mcast-ipv6-pim-if-gei-0/7)#pimdm
R1(config-mcast-ipv6-pim-if-gei-0/7)#end
RunthefollowingcommandsonR2:
R2(config)#interfacegei-0/4
R2(config-if-gei-0/4)#ipv6enable
R2(config-if-gei-0/4)#ipv6address199::2/64
