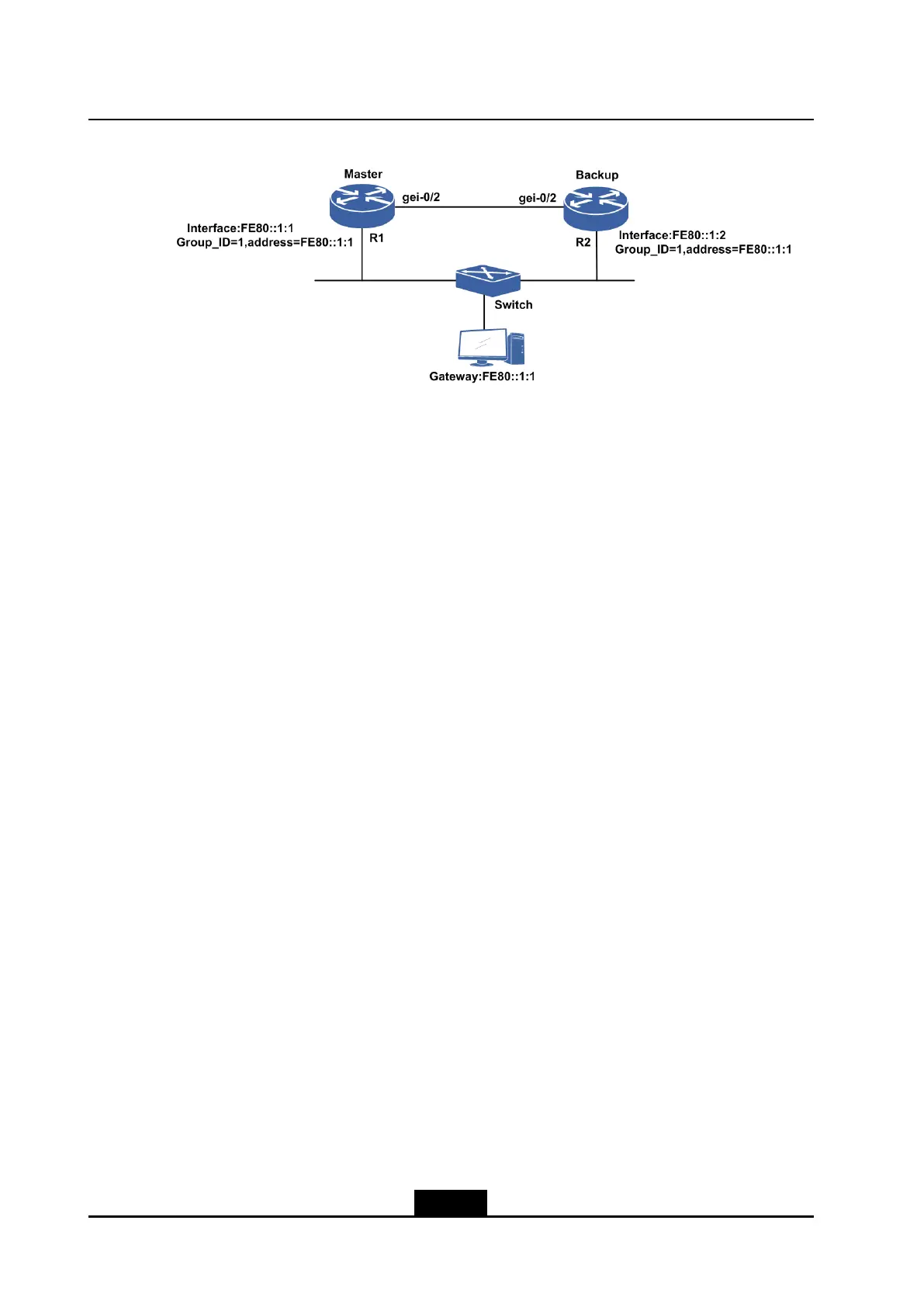

Figure23-3VRRPHeartbeatConguration(IPv6)
CongurationFlow
1.EntertheinterfacesonwhichVRRPshouldbeenabled.EnableIPv6,andcongure
IPv6addresses.
2.EnterVRRPcongurationmodefromglobalcongurationmode,andthenenterthe
interfacestocongureVRRP .
3.CongurethesameVRRPgroupIDandvirtualaddressesforR1andR2.Tomake
R1asthemasterrouter,setapriorityforR1higherthanthatforR2inthesamegroup,
orcongureittobetheIPaddressownerbysettingtheIPaddressofaninterfacefor
R1tobethevirtualaddress.
4.InVRRPinterfacecongurationmode,setandenableegressinterfacesoverwhich
packetsaretransmittedforVRRPgroups.
CongurationCommands
CongurationonR1:
R1(config)#interfacegei-0/2
R1(config-if-gei-0/2)#noshutdown
R1(config-if-gei-0/2)#ipv6enable
R1(config-if-gei-0/2)#ipv6addresslink-localfe80::1:1
R1(config-if-gei-0/2)#exit
R1(config)#vrrp
R1(config-vrrp)#interfacegei-0/2
R1(config-vrrp-if-gei-0/2)#vrrp1ipv6fe80::1:1
R1(config-vrrp-if-gei-0/2)#vrrp1out-interfacegei-0/2
R1(config-vrrp-if-gei-0/2)#end
CongurationonR2:
R2(config)#interfacegei-0/2
R2(config-if-gei-0/2)#noshutdown
R2(config-if-gei-0/2)#ipv6enable
R2(config-if-gei-0/2)#ipv6addresslink-localfe80::1:2
R2(config-if-gei-0/2)#exit
R2(config)#vrrp
