3Com EtherLink 3C509B - Connecting the AUI Cable

Connecting to the Network 5-7
2. Connect the AUI cable to the AUI connector on
the adapter, as shown in Figure 5-5.
Move the slide latch to the closed position to lock the
cable in place.
AUI connector


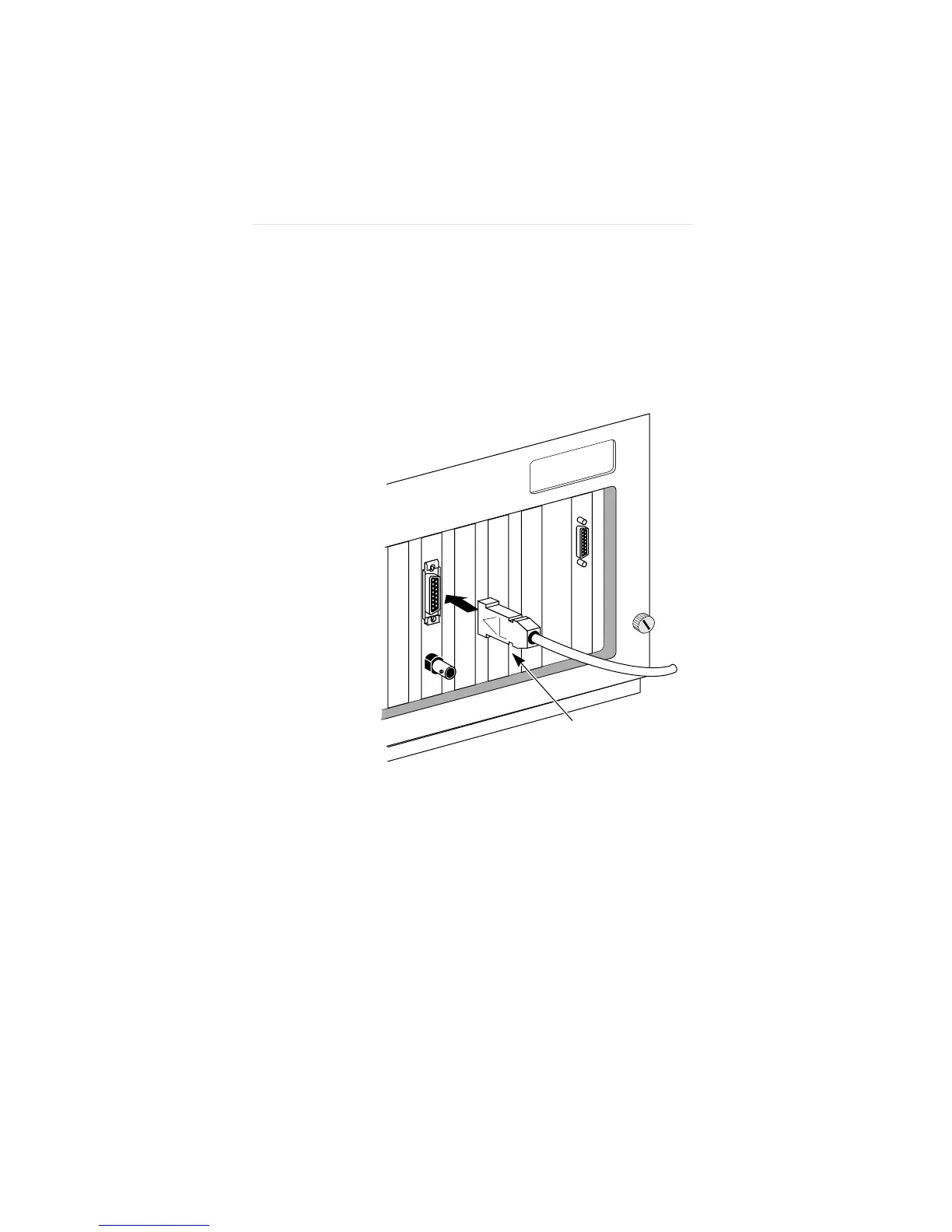

Figure 5-5. Connecting the AUI Cable
