Event browser
The Event browser tool is composed of 4 tabs:
• Version tab
It lists the different software versions and when they have been installed.
• Manufacturing tracking tab
Each event occured during a preparation or a job is traced and stored on a tracking le. Each time a new sintering plate is
loaded into the printer, a tracking le is created. As long as a tracking le is existing on the printer, it can be viewed and
exported.
When the plate is unloaded, its tracking plate le will be closed.
The format of the tracking le is ".xml", and is composed by: PrinterType_SerialNumber_PlateNumber
• Printer type (e.g ProX300)
• Serial number (e.g 1122333)
• Plate number: the number entered during the plate loading (see section "Step 4 : Loading plate" on page 41) is
linked to the name of the corresponding tracking le

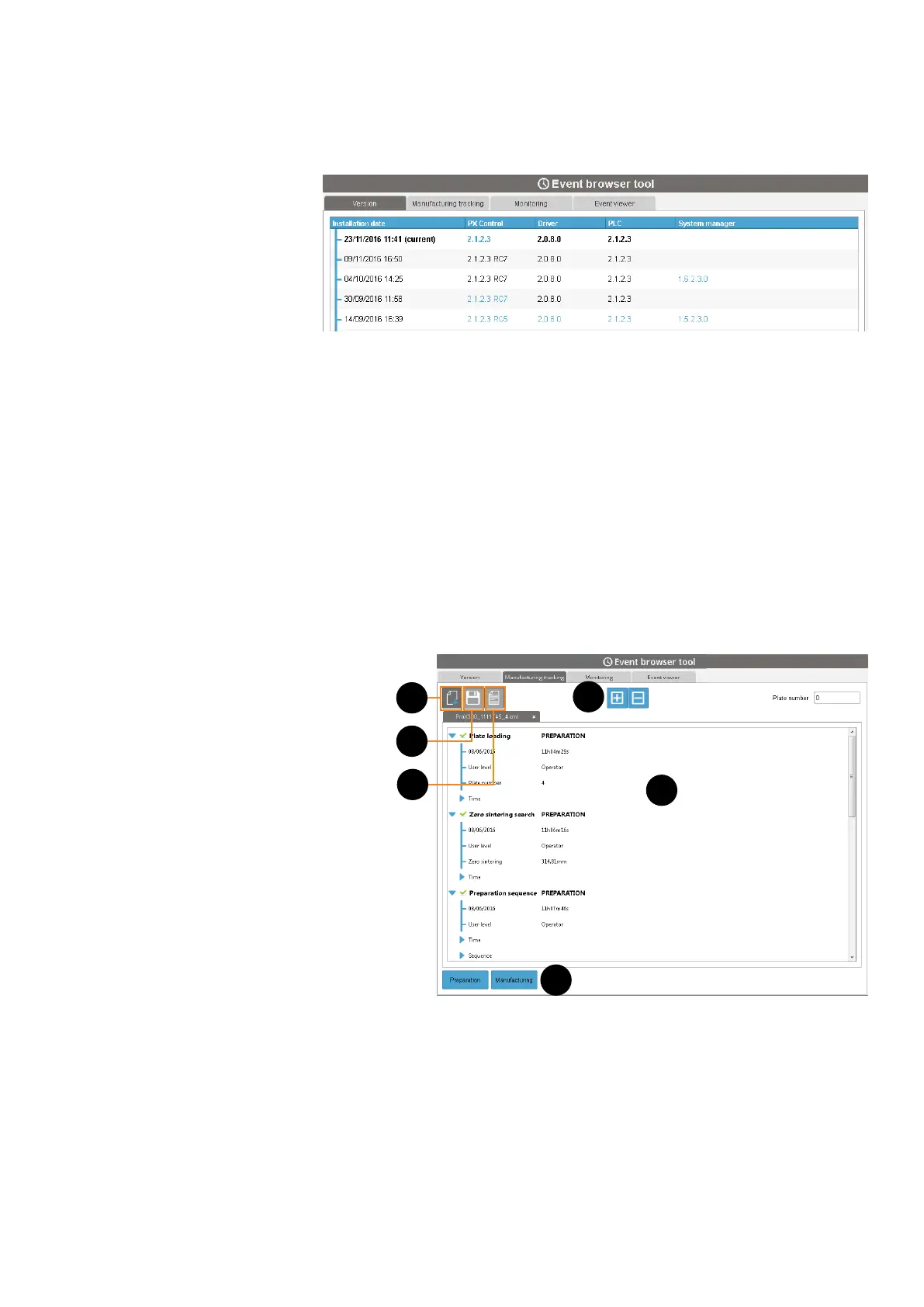

1. Click on the "Open le" button to open a
tracking le (1).
2. Select the desired tracking le from the list.
3. All corresponding events will be indicated on
the information area (2).
4. Optional: use the "Information lter" (3)
to select an event type (Preparation or
Manufacturing).
5. Optional: use the "+" or "-" buttons (4) to
directly open/close all navigation trees.
6. Export functions (5): to export the tracking le
("csv", "xml" or "pdf" formats).
7. The export button (6) creates a manufacturing
report in "pdf" format (see example
"Manufacturing report" on page 55).
