PREPARING FOR INSTALLATION
24 FOX615Installation
2.4 Dimensions and mechanical installation practice
2.4.1 19-inch installation standard
2.4.1.1 Overview
All mechanical parts relevant for the installation of the FOX615 are for 19-
inch installation.

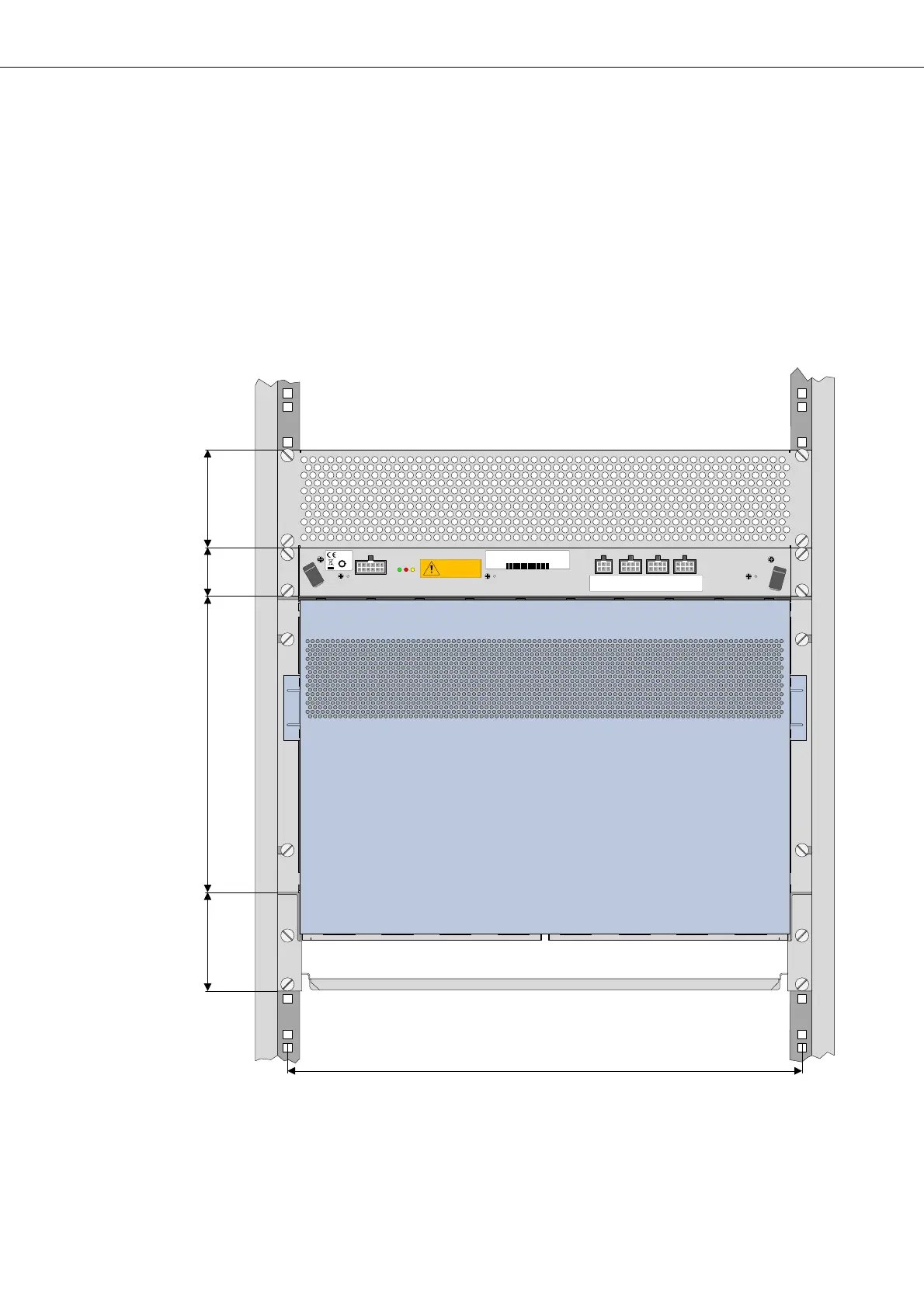

Figure 6: 19-inch installation standard for the FOX615
1 Cable tray
2 Subrack
3FAMO1 or FAMO1-F (option)
4 Heat deflection shield R7AI (option)
88.9 mm
2HU
266.7 mm
6HU
1HU
2HU
88.9 mm
44.45 mm
1
2
3
4
465.1 mm
427.5 mm
20.3 mm
F3: Alarm inputs
1-4
F4: Alarm inputs
5-8
F5: Alarm inputs
9-12
F2: Alarm output
1- 2
50
moving fans
refer to handbook
fan 48VDC 19" 1U
37970003
R2A
2111743473
2011W44
