ABB FOX615 - ETSI installation standard

PREPARING FOR INSTALLATION
FOX615Installation 29

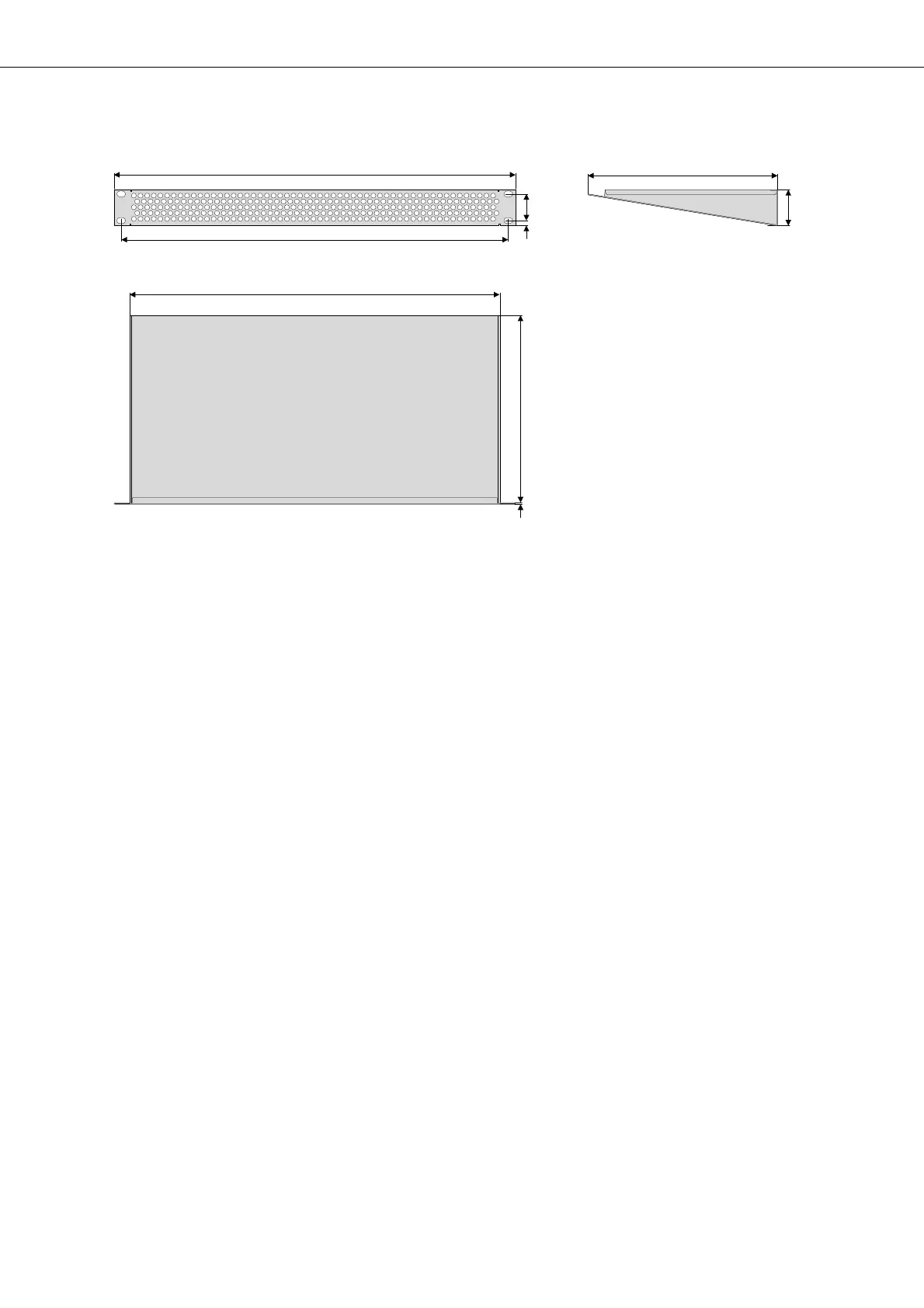

Figure 14: Mechanical dimensions heat deflection shield R7AI 1 HU
2.4.2 ETSI installation standard
2.4.2.1 Overview
The ETSI installation for the FOX615 relies on adapters, which allows you to
install the 19-inch FOX equipment in ETSI racks.
2.0 mm
226.0 mm
444.8 mm
5.8 mm
31.7 mm
465.2 mm
482.6 mm
228.0 mm
43.3 mm
