ABB FOX615 - Subrack, DUPF1, and Cable Tray dimensions

PREPARING FOR INSTALLATION
FOX615Installation 25
Please note:
The standard heat deflection shield R7AI has a height of 2 HU. For subrack
installations with constricted room in a rack, a heat deflection shield R7AI
with a reduced height of 1 HU is available.
Please note:
If you want to protect the subrack (2) from heated air generated below the
subrack, you must install a heat deflection shield below the cable tray (1) as
well.
2.4.1.2 Subrack

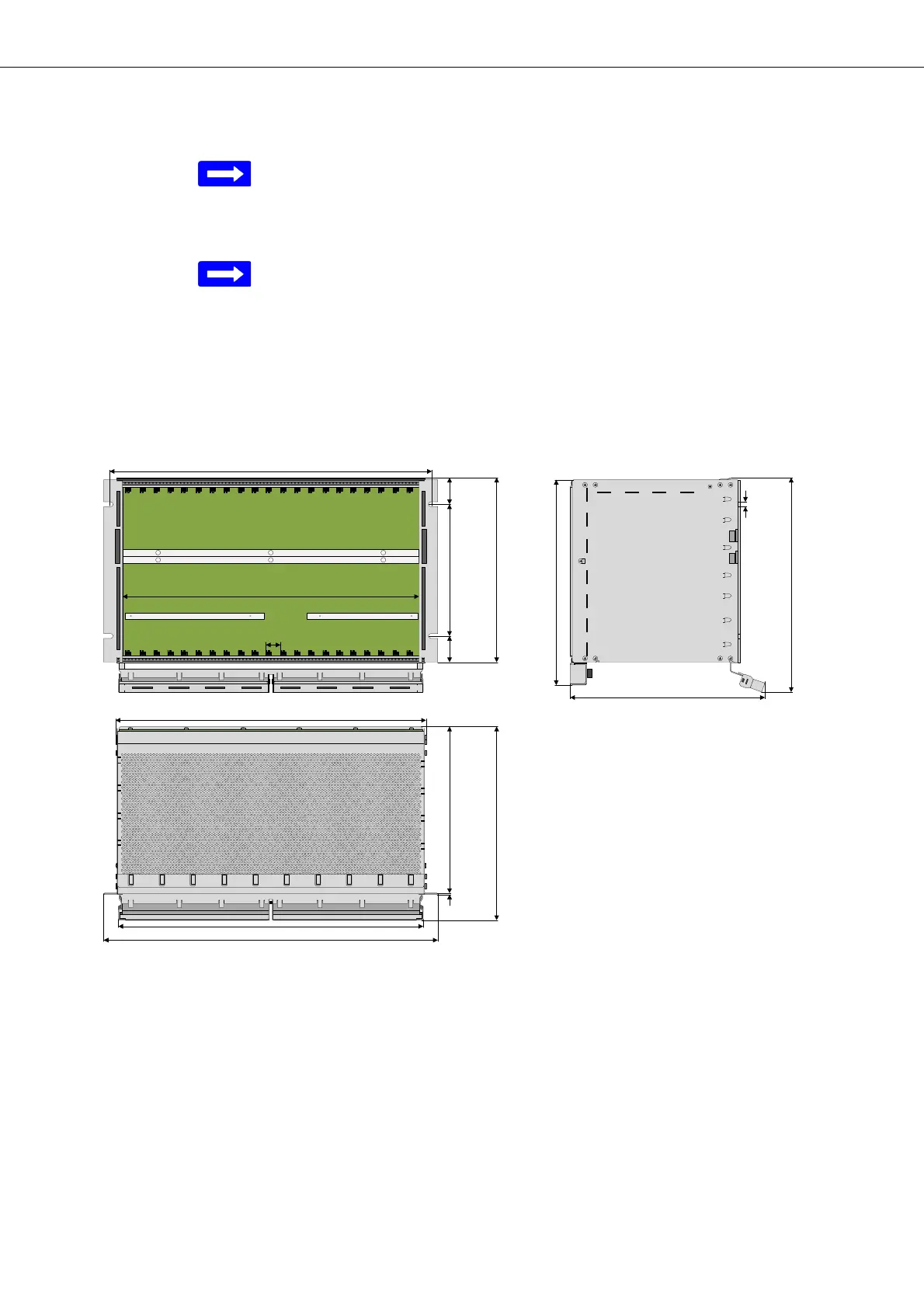

The Figure 7 shows the layout and the mechanical dimensions of the 19-inch
subrack, including earthing bars.
Figure 7: Mechanical dimensions FOX615 subrack
2.4.1.3 Subrack with front cover
The Figure 8 shows the mechanical dimensions of the 19-inch subrack with
front cover and installed DUPF1 option.
38.5 mm
38.1 mm
190.5 mm
267.1 mm
465.1 mm
427.5 mm
20.3 mm
280.4 mm
309.5 mm
7.0 mm
297.2 mm
449.0 mm
440.0 mm
482.6 mm
241.6 mm
2.5 mm
280.3 mm
