ABB FOX615 - Front cover installation;removal

INSTALLATION PROCEDURES
FOX615Installation 81
Please note:
Screws (14) that are unscrewed in such a way that they protrude from the
front panel of the unit can block the outward movement (A) of the levers.
3.9.4 Front cover
3.9.4.1 Mounting the front cover

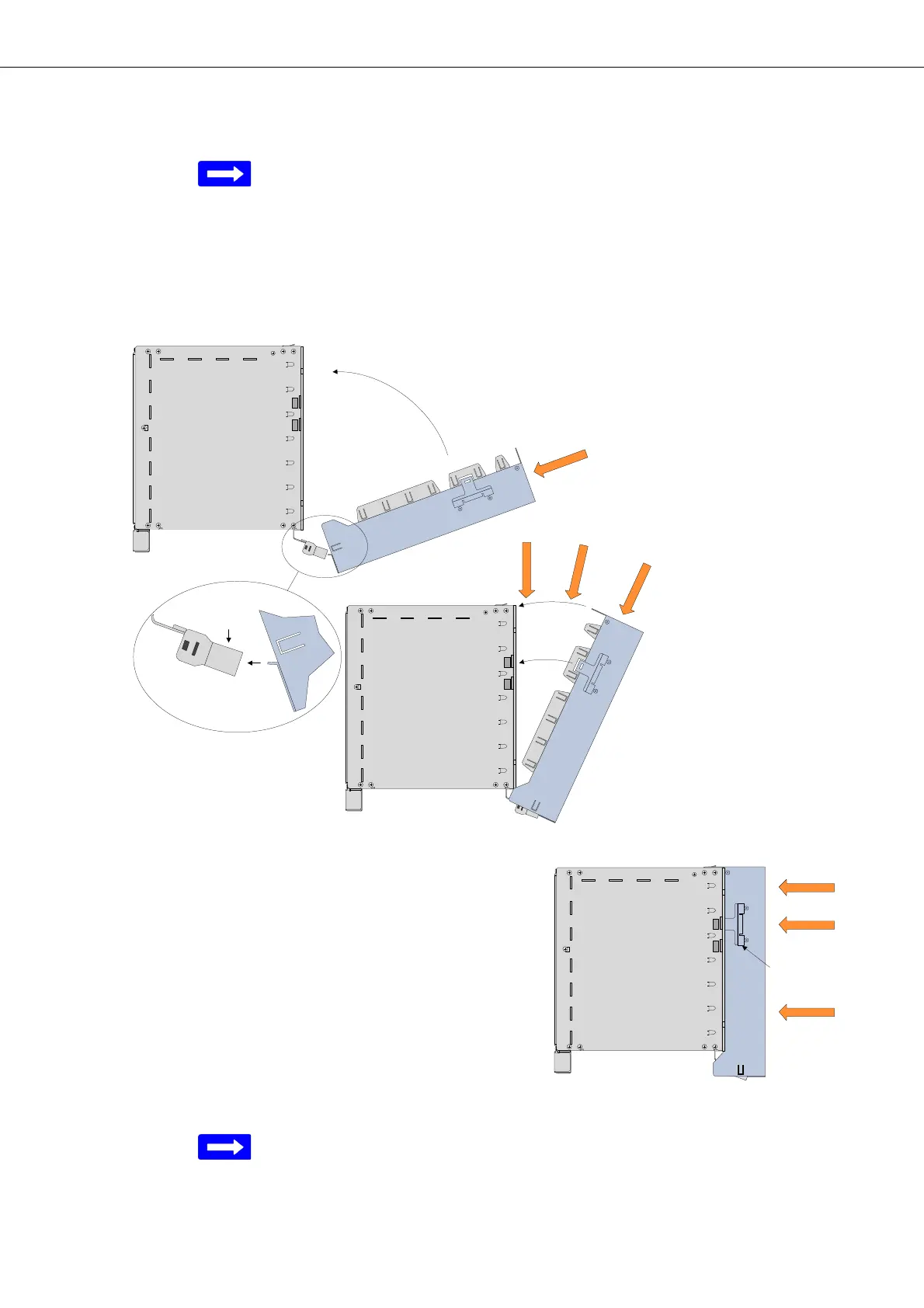

Figure 52: Installing the front cover to the subrack
Please note:
The front cover also covers the earthing bar and a part of the cable tray.
