INSTALLATION PROCEDURES
FOX615Installation 59

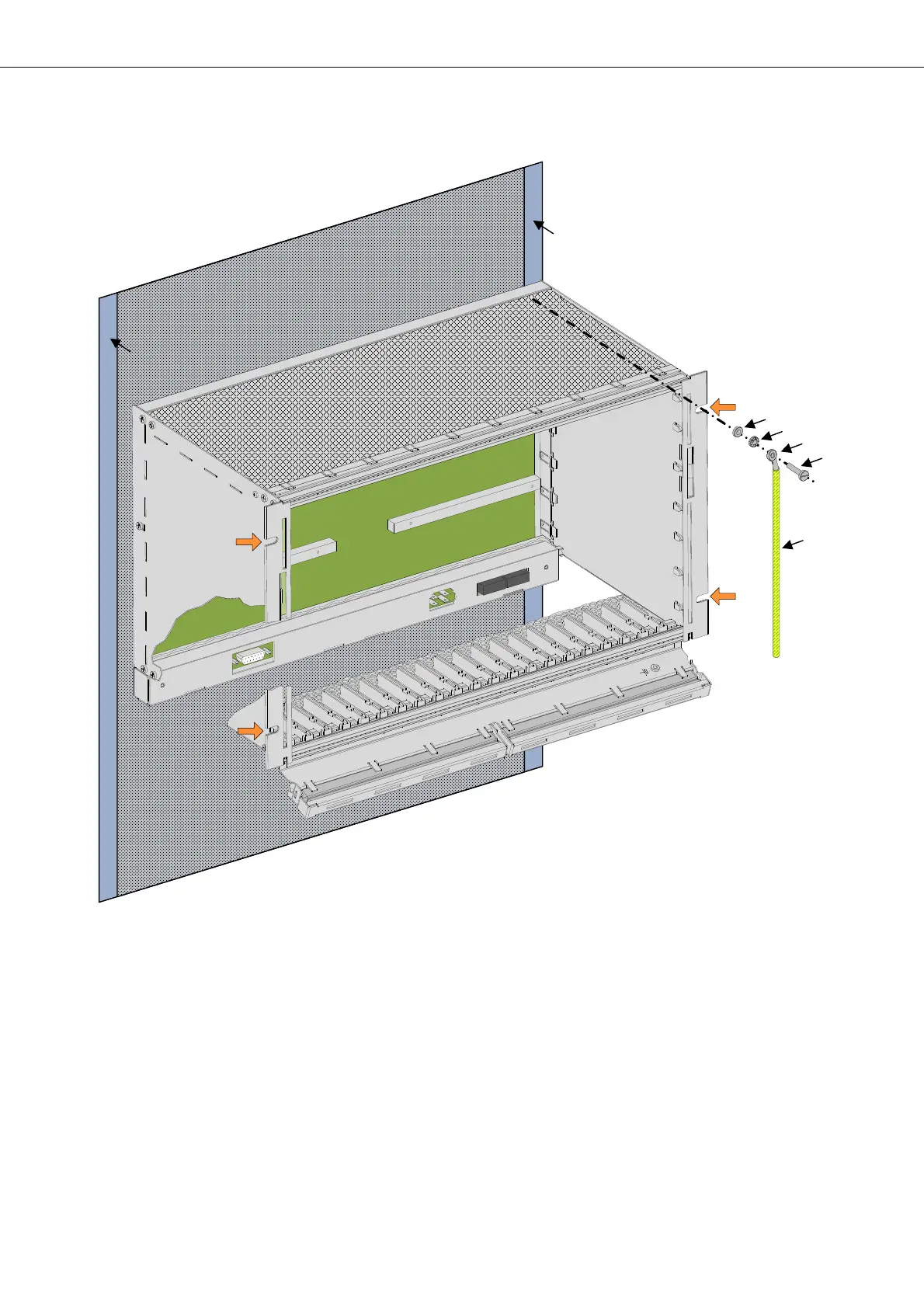

Figure 32: Earthing / bonding points of the FOX subrack
Legend:
1 Earthing cable
2 Crimp lug for M6 screw
3 Toothed washer for M6 screw
4 Washer for M6 screw
5 Flat head screw M6 x 15 mm (min.)
6 Possible earthing / bonding points on the subrack mounting
flange with M6 screw
7 Left and right mounting rail of the rack
The steps to connect the earthing / bonding point of the FOX subrack to the
local Common Bonding Network are as follows:
5
2
1
7
3
4
6
6
6
6
7
