PREPARING FOR INSTALLATION
26 FOX615Installation

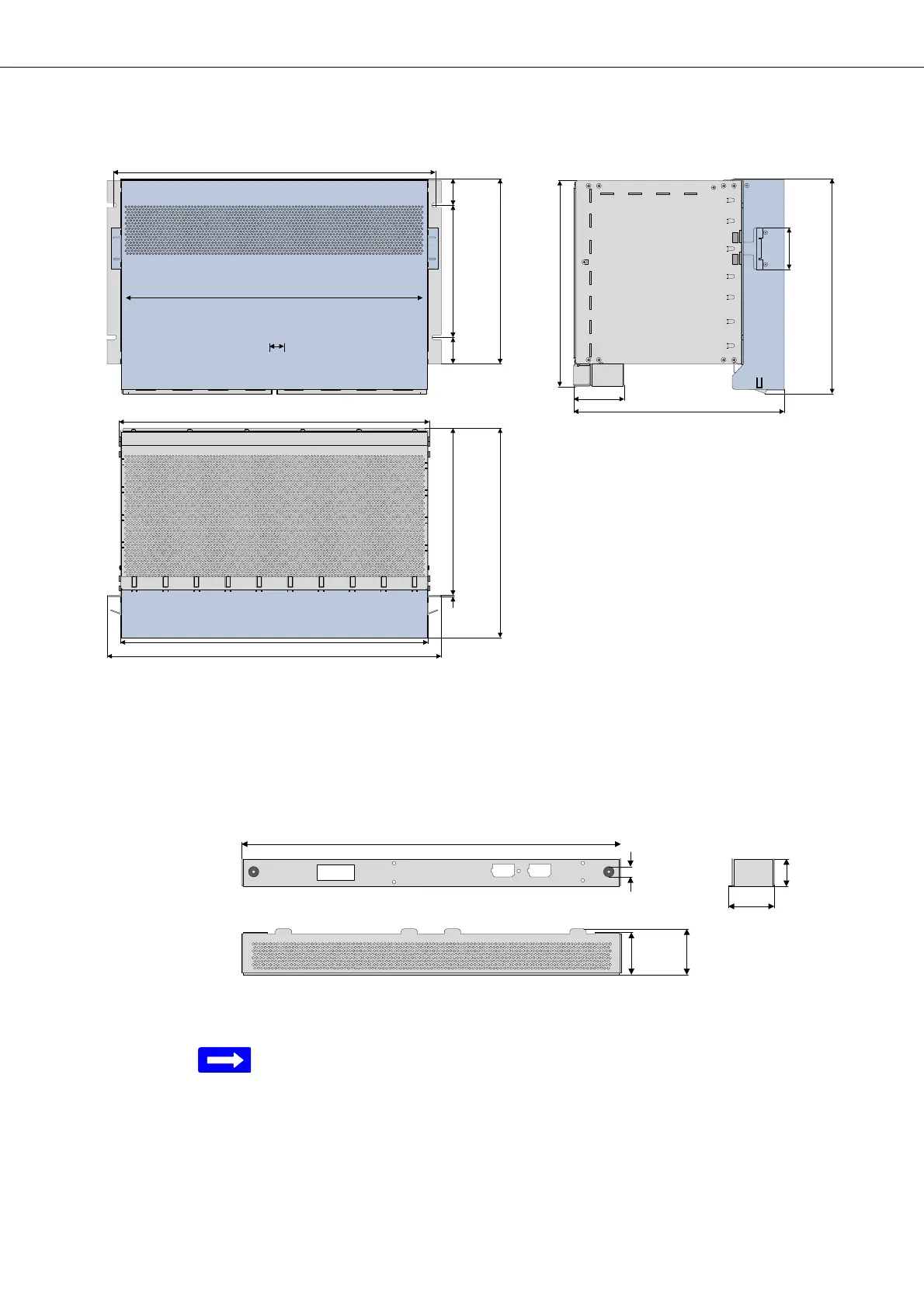

Figure 8: Mechanical dimensions FOX615 subrack with front cover
and DUPF1
2.4.1.4 DUPF1 (option)
The Figure 9 shows the mechanical dimensions of the DUPF1 dual power
supply connection box (option) fitting to the subrack of the FOX615.
Figure 9: Mechanical dimensions DUPF1 dual power supply connec-
tion box (option)
Please note:
Figure 9 shows the DUPF1 without electronic components and cables.
2.4.1.5 Cable tray
The Figure 10 shows the mechanical dimensions of the 19-inch cable tray fit-
ting below the FOX615 subrack.
427.5 mm
20.3 mm
38.5 mm
38.1 mm
190.5 mm
267.1 mm
465.1 mm
427.5 mm
20.3 mm
72.5 mm
309.5 mm
60.4 mm
297.2 mm
449.0 mm
442.0 mm
482.6 mm
241.6 mm
2.5 mm
304.3 mm
304.3 mm
31.7 mm
13.0 mm
438.1 mm
48.5 mm 52.8 mm
52.6 mm
