ABB FOX615 - FAMO1;FAMO1-F and heat shield dimensions

PREPARING FOR INSTALLATION
FOX615Installation 27

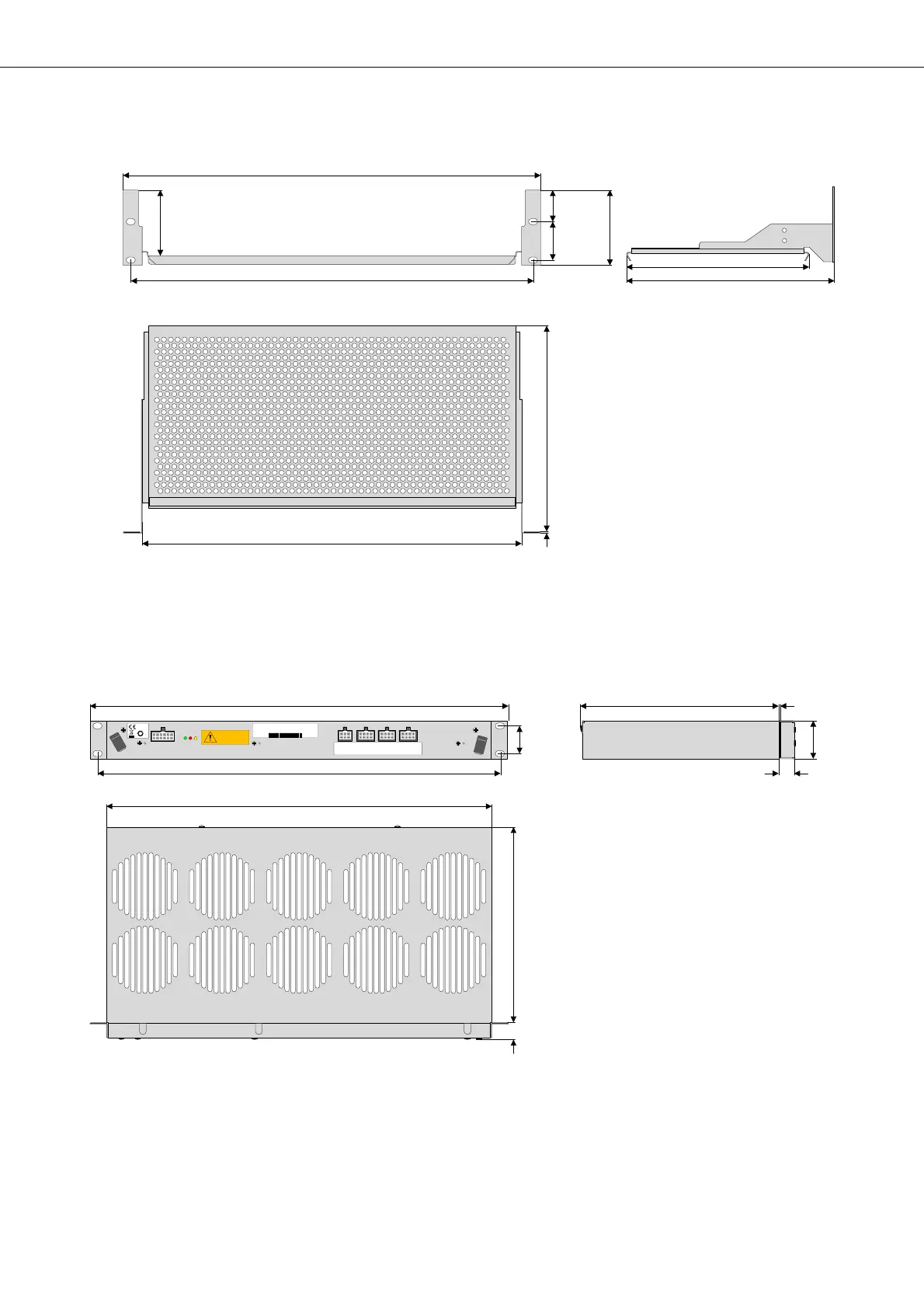

Figure 10: Mechanical dimensions FOX615 cable tray
2.4.1.6 FAMO1
The Figure 11 shows the mechanical dimensions of the 19-inch FAMO1 fan
unit fitting above the FOX615 subrack.
Figure 11: Mechanical dimensions FAMO1 fan unit
2.4.1.7 FAMO1-F
The Figure 13 shows the mechanical dimensions of the 19-inch FAMO1-F
alarm unit fitting above the FOX615 subrack.
2.0 mm
238.0 mm
437.7 mm
87.1 mm
44.5 mm
465.2 mm
482.6 mm
211.0 mm
37.0 mm
76.0 mm
240.2 mm
F3: Alarm inputs
1-4
F4: Alarm inputs
5-8
F5: Alarm inputs
9-12
F2: Alarm output
1-2
50
movi ng fans
refer to handbook
fan 48VDC 19" 1U
37970003
R2A
2111743473
2011W44
20.0 mm
226.2 mm
444.5 mm
31.8 mm
465.2 mm
482.6 mm
228.8 mm
43.6 mm
16.9 mm
2.0 mm
