INSTALLATION PROCEDURES
FOX615Installation 73
3.9 Final steps
3.9.1 Tightening of screws
The FOX subrack equipment is now completely installed in the rack. If
required, the individual subracks can be readjusted for their final in position
in the rack.
If all equipment is in its final position the M6 screws must be tightened defini-
tively. For recommended torques, refer to section Torques (on page 34).
3.9.2 Cable clamps, earthing bar and EMC clips
The subrack of the FOX615 subrack provides a left side and a right side
cable clamp and earthing bar. Each bar has its own clamp, each of which is
independent from the other.

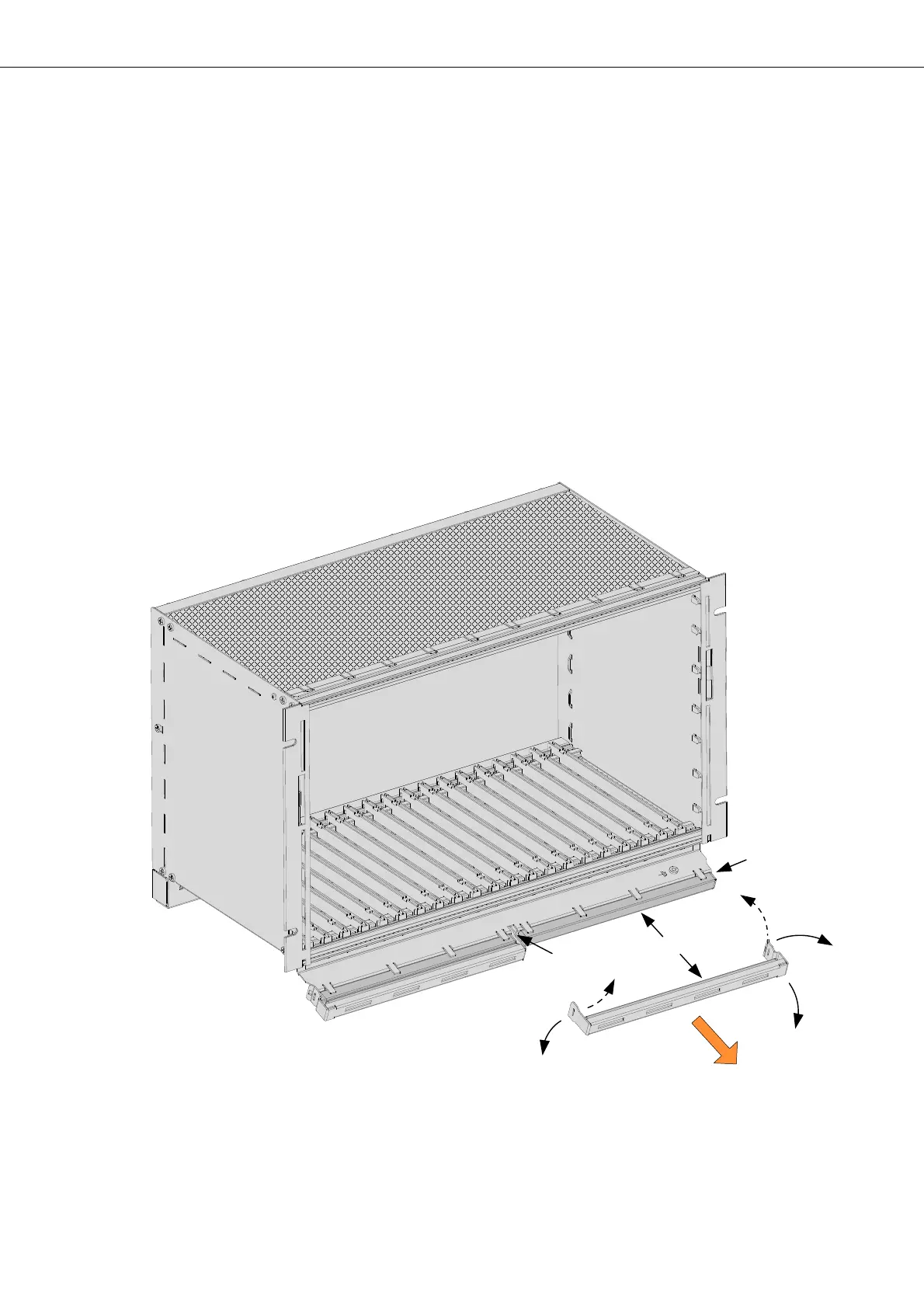

Figure 47: Cable clamps and earthing bars (conductive foam in bars
and clamps is dark shaded)
The steps to remove the right side cable clamp from its earthing bar are as
follows:
11
12
13
21
22
A
14
15
16
