10.8 Interrupt Enable Accept Timing

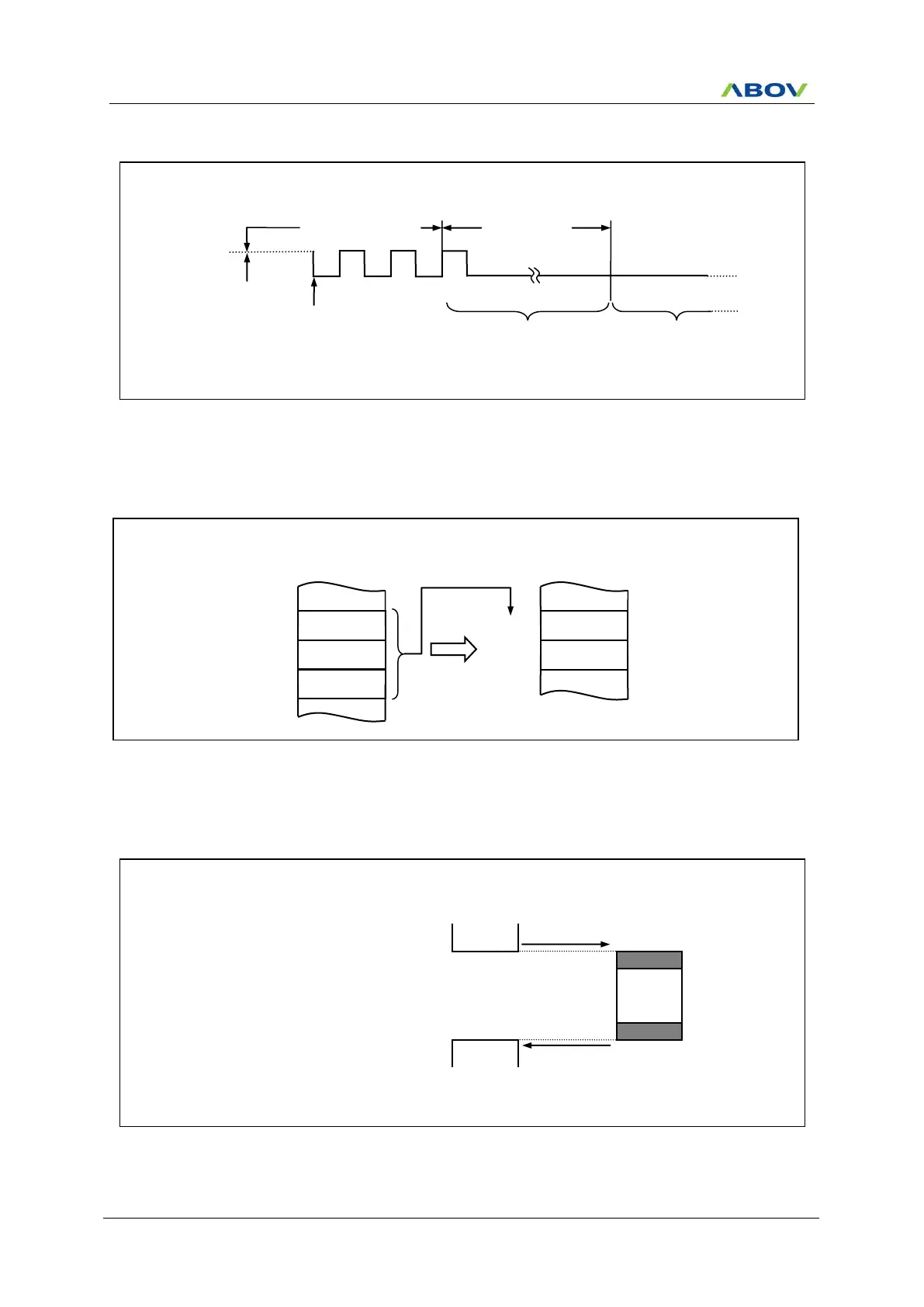

Figure 10.7 Interrupt Response Timing Diagram
10.9 Interrupt Service Routine Address
Figure 10.8 Correspondence between Vector Table Address and the Entry Address of ISR
10.10 Saving/Restore General-Purpose Registers
Figure 10.9 Saving/Restore Process Diagram and Sample Source
INTxx : PUSH PSW
PUSH DPL
PUSH DPH
PUSH B
PUSH ACC
∙
∙
Interrupt_Processing:
∙
∙
POP ACC
POP B
POP DPH
POP DPL
POP PSW
RETI
Basic Interval Timer
Vector Table Address
Basic Interval Timer
Service Routine Address
Interrupt Processing
: LCALL & LJMP
