Abov MC96F6332D - Main Clock Oscillator Characteristics

MC96F6432
June 22, 2018 Ver. 2.9 49

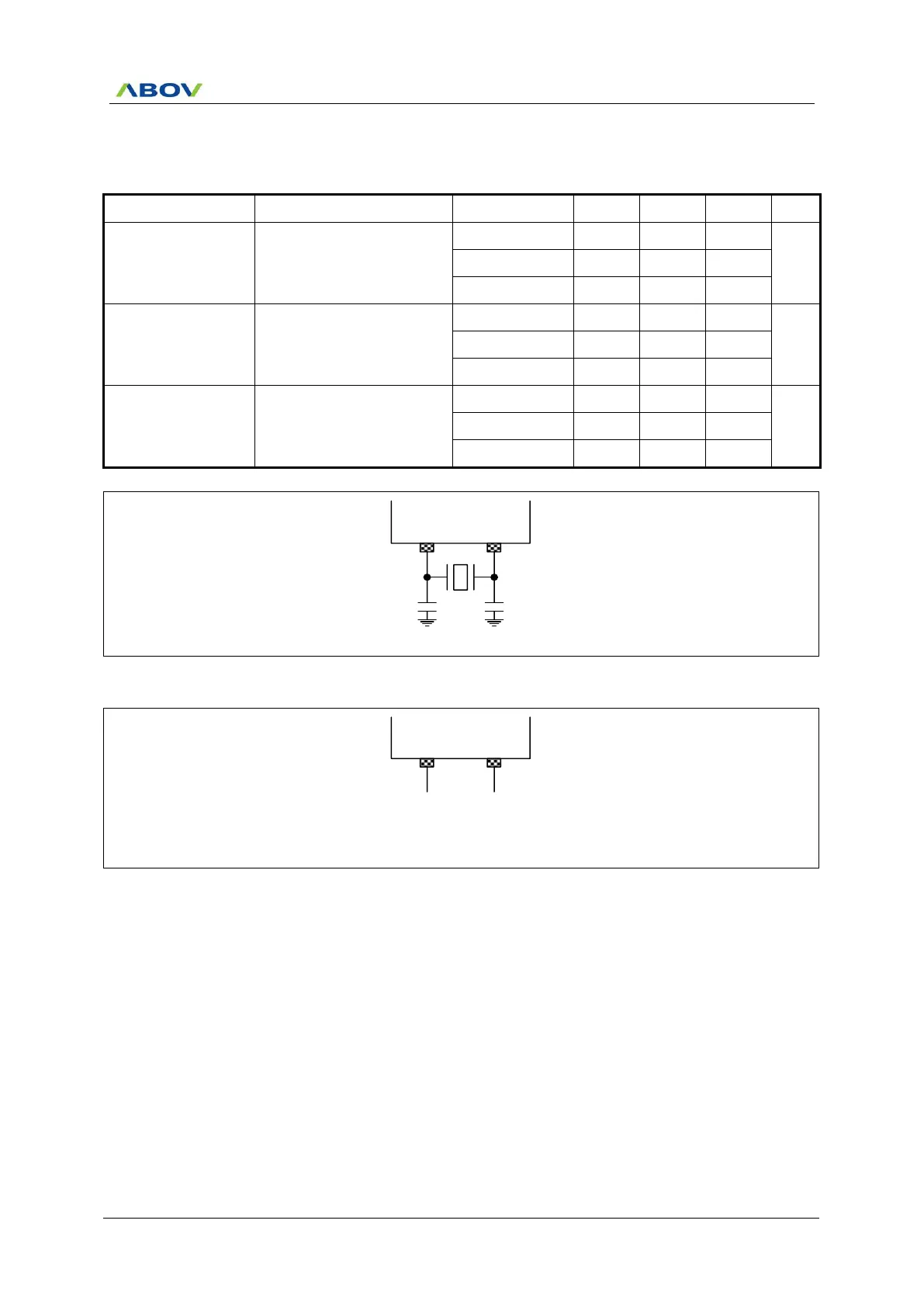

7.17 Main Clock Oscillator Characteristics
Table 7-17 Main Clock Oscillator Characteristics
(T
A
= -40°C ~ +85°C, VDD= 1.8V ~ 5.5V)
Oscillator
Parameter
Condition
MIN
TYP
MAX
Unit
Crystal
Main oscillation frequency
1.8V – 5.5V
0.4
–
4.2
MHz
2.7V – 5.5V
0.4
–
10.0
3.0V – 5.5V
0.4
–
12.0
Ceramic Oscillator
Main oscillation frequency
1.8V – 5.5V
0.4
–
4.2
MHz
2.7V – 5.5V
0.4
–
10.0
3.0V – 5.5V
0.4
–
12.0
External Clock
XIN input frequency
1.8V – 5.5V
0.4
–
4.2
MHz
2.7V – 5.5V
0.4
–
10.0
3.0V – 5.5V
0.4
–
12.0
XIN XOUT
C1
C2
Figure 7.8 Crystal/Ceramic Oscillator
XIN XOUT
External
Clock
Source
Open
Figure 7.9 External Clock
