Abov MC96F6332D User Manual

MC96F6432
June 22, 2018 Ver. 2.9 117
11.3.3 Block Diagram
WDTCNT
WDT Clock
clear
WDTDR
WDTCR
WDTCL WDTRSON
WDTEN
To RESET
Circuit
WDTIFR
To interrupt
block
INT_ACK
clear

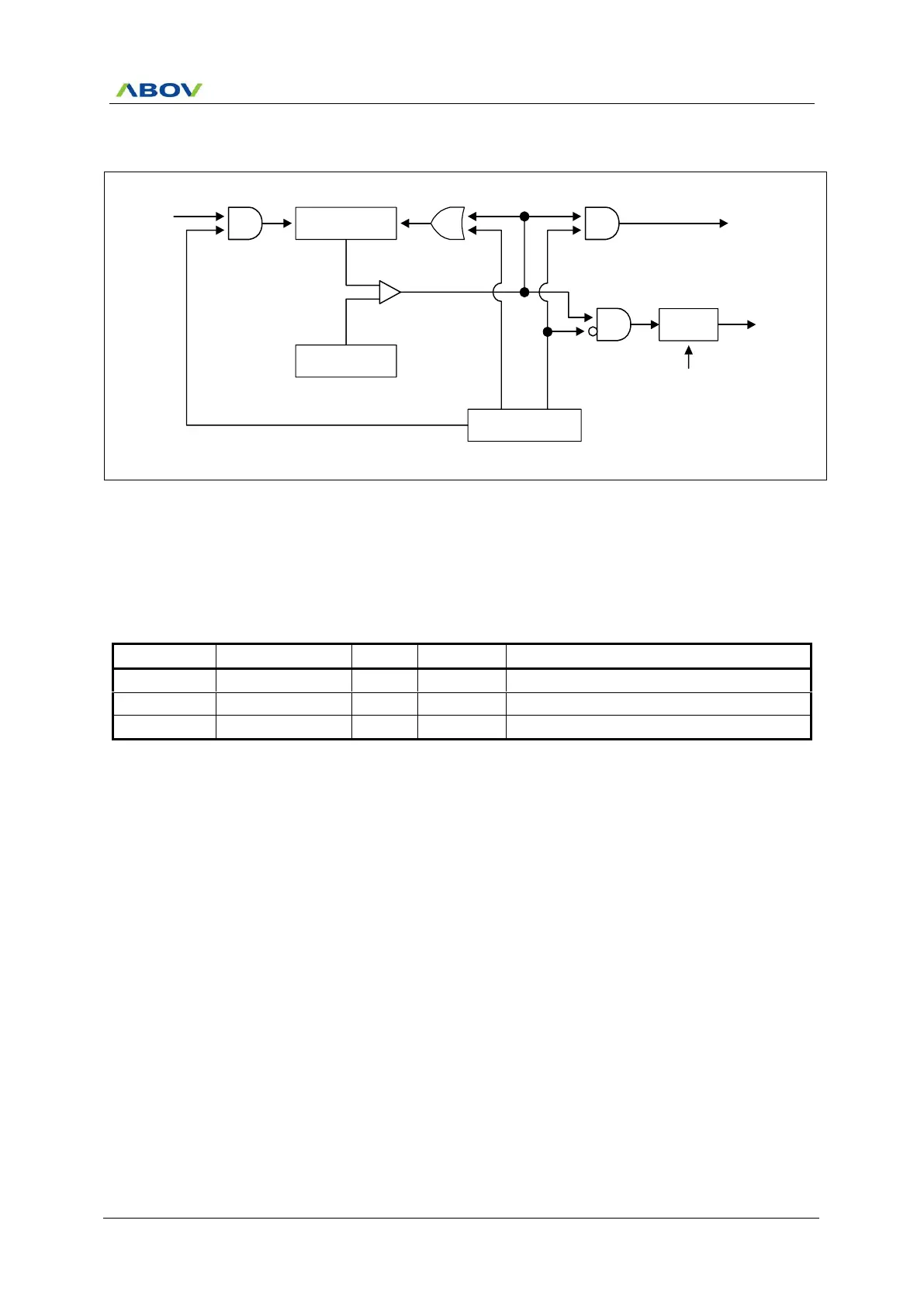

Figure 11.4 Watch Dog Timer Block Diagram
11.3.4 Register Map
Table 11-3 Watch Dog Timer Register Map
Name
Address
Dir
Default
Description
WDTCNT
8EH
R
00H
Watch Dog Timer Counter Register
WDTDR
8EH
W
FFH
Watch Dog Timer Data Register
WDTCR
8DH
R/W
00H
Watch Dog Timer Control Register
11.3.5 Watch Dog Timer Register Description
The watch dog timer register consists of watch dog timer counter register (WDTCNT), watch dog timer data
register (WDTDR) and watch dog timer control register (WDTCR).
