Abov MC96F6332D User Manual

MC96F6432
242 June 22, 2018 Ver. 2.9
The process for detecting stop bit is like clock and data recovery process. That is, if 2 or more samples of 3
center values have high level, correct stop bit is detected, else a frame error (FE1) flag is set. After deciding
whether the first stop bit is valid or not, the Receiver goes to idle state and monitors the RXD1 line to check a
valid high to low transition is detected (start bit detection).

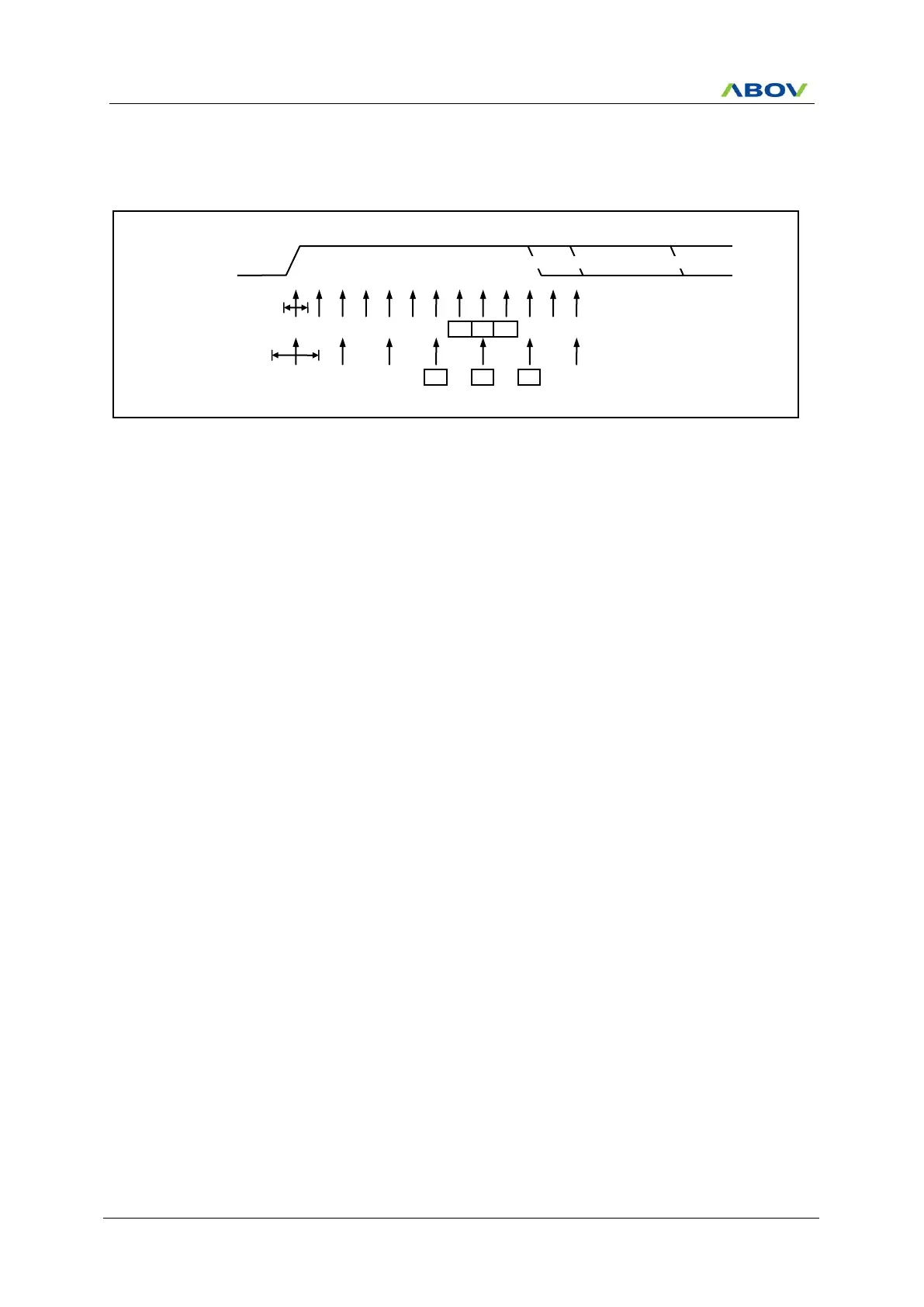

Figure 11.84 Stop Bit Sampling and Next Start Bit Sampling (USI1)
RXD1
1
2
3
4
5
6
7
8
9
10
11
12
13
STOP 1
1
2
3
4
5
6
7
Sample
(DBLS1 = 0)
Sample
(DBLS1 = 1)
(A)
(B)
(C)
