11.7.5 Block Diagram
T2MS[1:0]
T2POL
Reload
A Match
T2CC
T2EN
P
r
e
s
c
a
l
e
r
fx
M
U
X
fx/2
fx/4
fx/32
fx/128
fx/512
fx/8
fx/1
Comparator
16-bit Counter
T2CNTH/T2CNTL
16-bit B Data Register
T2BDRH/T2BDRL
Clear
B Match
Buffer Register B
Comparator
16-bit A Data Register
T2ADRH/T2ADRL
T2IFR
INT_ACK
Clear
To interrupt
block
A Match
Buffer Register A
Reload
Pulse
Generator
T2O/
PWM2O
R
EINT12
T2CNTR
T2EN
3
T2CK[2:0]
Clear
EIPOL1[7:6]
FLAG12
(EIFLAG1.3)
INT_ACK
Clear
To interrupt
block
2
2
T2MS[1:0]
2
T1 A Match
A Match
T2CC
T2EN
A Match
T2CC
T2EN
NOTE) T1 A Match is a pulse for the timer 2 clock source if it is selected.

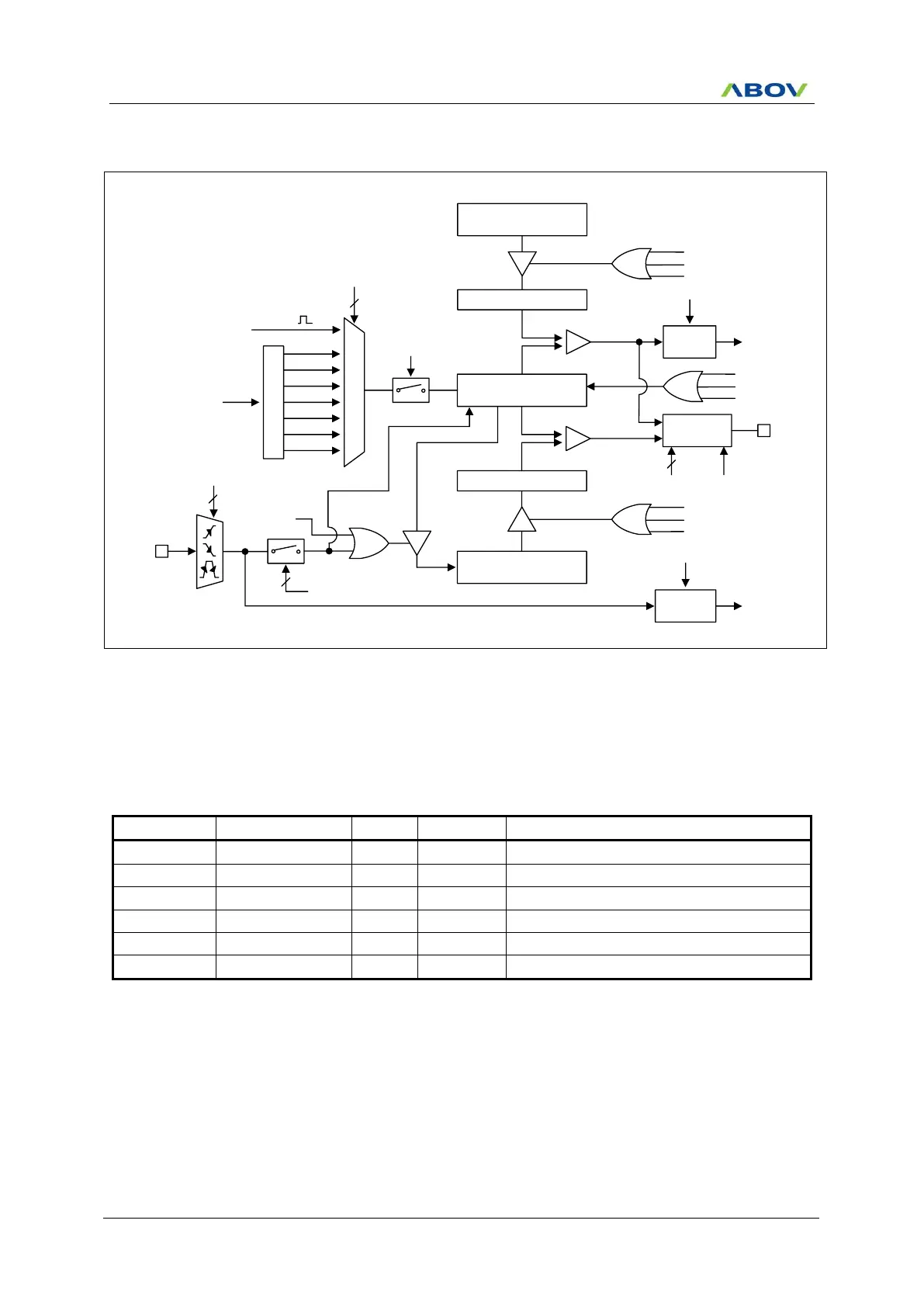

Figure 11.29 16-Bit Timer 2 Block Diagram
11.7.6 Register Map
Table 11-10 Timer 3 Register Map
Name
Address
Dir
Default
Description
T2ADRH
C5H
R/W
FFH
Timer 2 A Data High Register
T2ADRL
C4H
R/W
FFH
Timer 2 A Data Low Register
T2BDRH
C7H
R/W
FFH
Timer 2 B Data High Register
T2BDRL
C6H
R/W
FFH
Timer 2 B Data Low Register
T2CRH
C3H
R/W
00H
Timer 2 Control High Register
T2CRL
C2H
R/W
00H
Timer 2 Control Low Register
