Abov MC96F6332D - Figure 11.42 Example of Force Drive All Channel with A-Ch

MC96F6432
164 June 22, 2018 Ver. 2.9
FORCE Drive ALL Channel with A-ch mode
If FORCA bit sets to ‘1’, it is possible to enable or disable all PWM output pins through PWM outputs which
occur from A-ch duty counter. It is noted that the inversion outputs of A, B, C channel have the same A-ch output
waveform. According to POLAA/BB/CC, it is able to control the inversion of outputs.

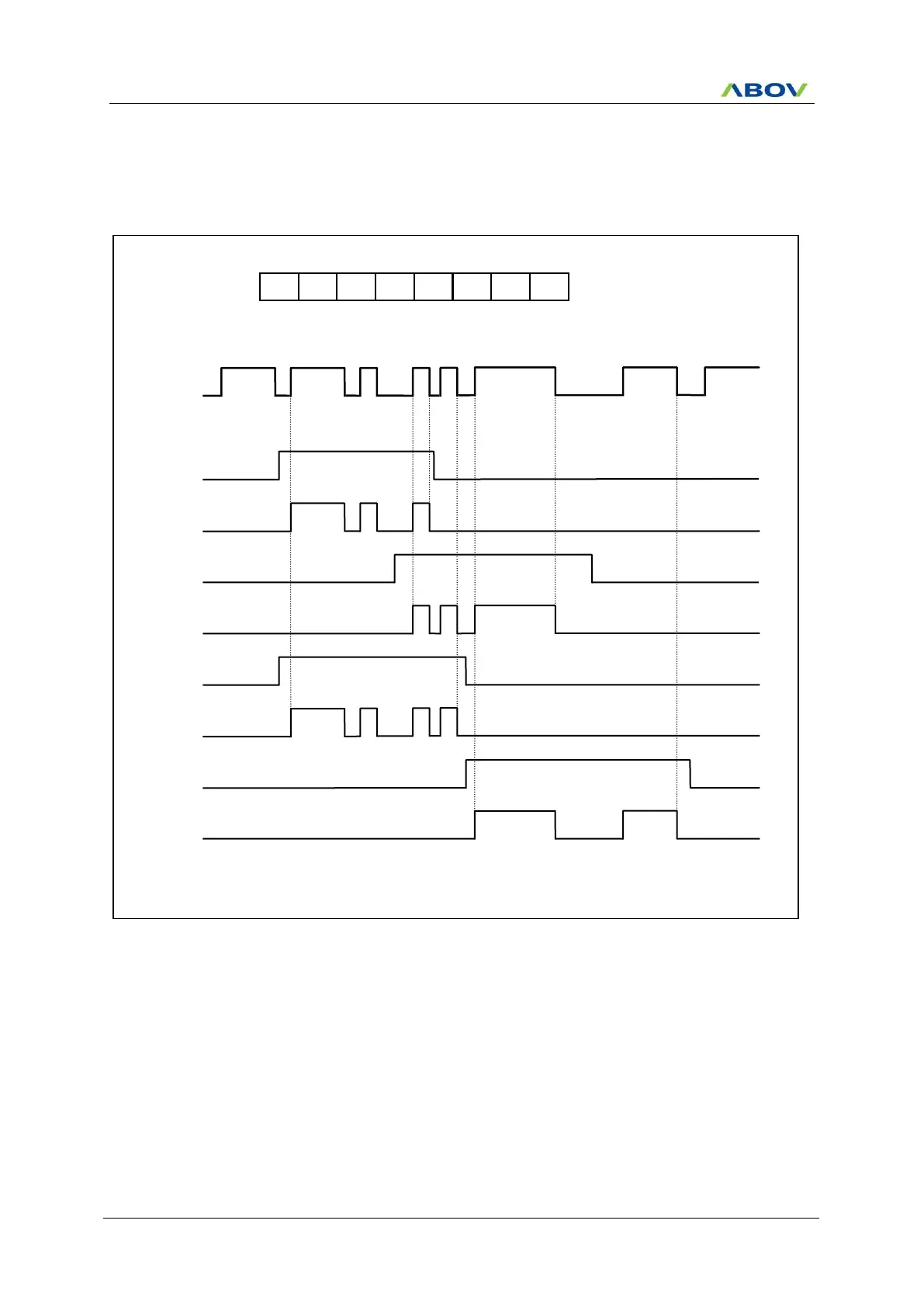

Figure 11.42 Example of Force Drive All Channel with A-ch
PWMA
PAAOE
PWM4AA
PABOE
PWM4AB
PBAOE
PWM4BA
PBBOE
PWM4BB
FORCA
-
PAAOE
PABOE
PBAOE
PBBOE
PCAOE
PCBOE
T4PCR2
1
-
X
X
X
X
X
X
ADDRESS : 1004H (ESFR)
INITIAL VALUE : 0-00_0000B
※C-ch operation is the same with channel A and B waveform
