4.2 Basic Operation
4-7
4.2 Basic Operation
When the power is turned on, this instrument automatically performs the self-test and then proceeds to the
measurement sequence.
For more information on the detail of the self-test, refer to Chapter 8, “MAINTENANCE.”
When the self-test is complete correctly, this instrument enters into the measurement state. If any abnormal
error occurs, the instrument enters into the error display state. Check the error number by operating MENU
and exit from here.
For more information on navigating the menus, refer to Section 5.1, “Menu.”
This instrument saves the set conditions when the power is turned off. The factory defaults are used in the
descriptions in Chapter 4. For more information on how to initialize this instrument, refer to Chapter 8.
4.2.1 Measurement Functions
4.2.1.1 DC Voltage Measurement (DCV)
1. Connect a DUT to the COM and V terminals on the front panel.
2. Press .
WARNING: Do not apply voltage that exceeds the maximum allowable applied voltage. Fire or electric
shocks due to the failure of this instrument may occur.

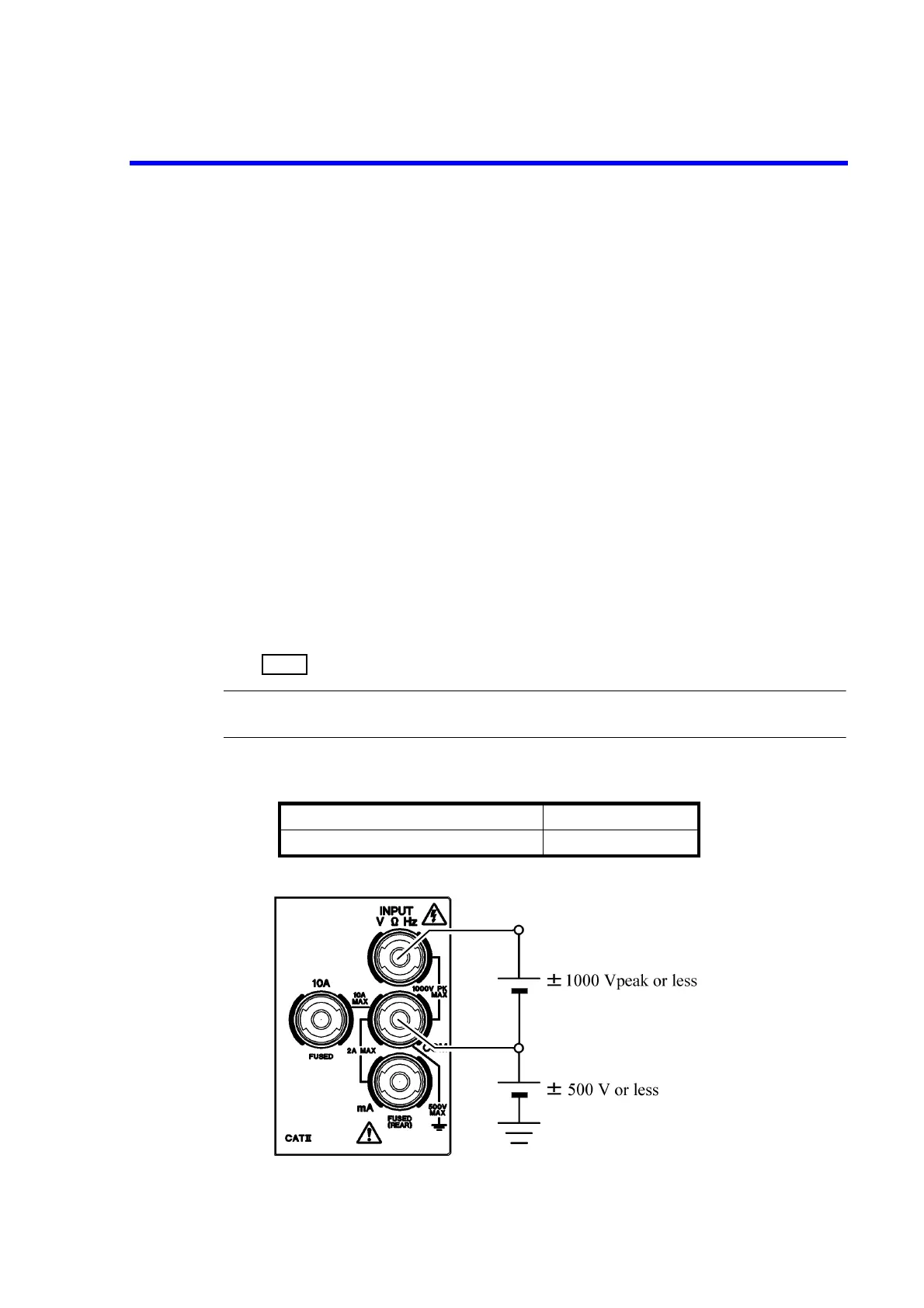

Figure 4-5 DC Voltage Measurement (DCV)
Table 4-1 Maximum Allowable Applied Voltage (DCV)
Between V and COM terminals 1000 Vpeak
Between COM and chassis (grounding) 500 V
