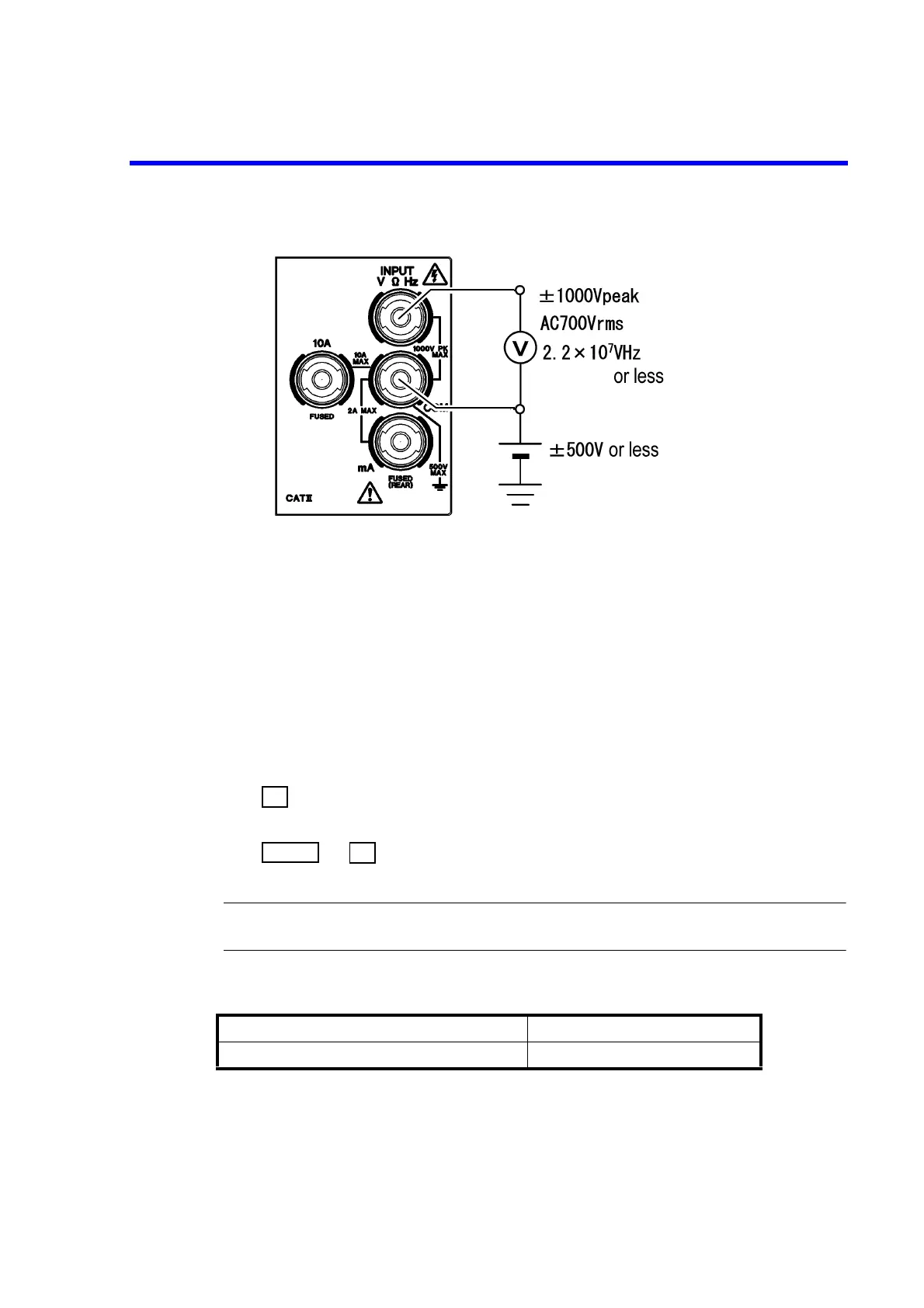

Figure 4-6 AC Voltage Measurement (ACV and ACV (AC+DC))
Measurement method TrueRMS
Input range 5% or more of a full scale
Crest factor 3 (This is restricted to the maximum allowable applied voltage.)
Filter response time Approx. 1 sec (Time until the measurement value reaches within 0.1%
of the final value)
4.2.1.3 Resistance Measurement (2W and LP-2W)
1. Connect a DUT to the  and COM terminals on the front panel.
2. Press .
The resistance is measured by using the 2W.
3. Press and .
The resistance is measured in low-power in which the measurement current is reduced.
WARNING: Do not apply voltage that exceeds the maximum allowable applied voltage. Fire or electric
shocks due to the failure of this instrument may occur.
Table 4-4 Maximum Allowable Applied Voltage (2W and LP-2W)
Between  and COM terminals 1000 Vpeak
Between COM terminal and chassis (grounding) 500 V

