7351 Series Digital Multimeter Operation Manual
5.7 Sampling Operation
5-12
5.7 Sampling Operation
Figure 5-2 shows the measurement sequence of this instrument.
Measurements are performed when the trigger event is received.
When each measurement is complete, the COMPLETE signal is output and the data output starts.
The measurement data is output to the display or interface.
The complete signal output does not exist in the 7351E.

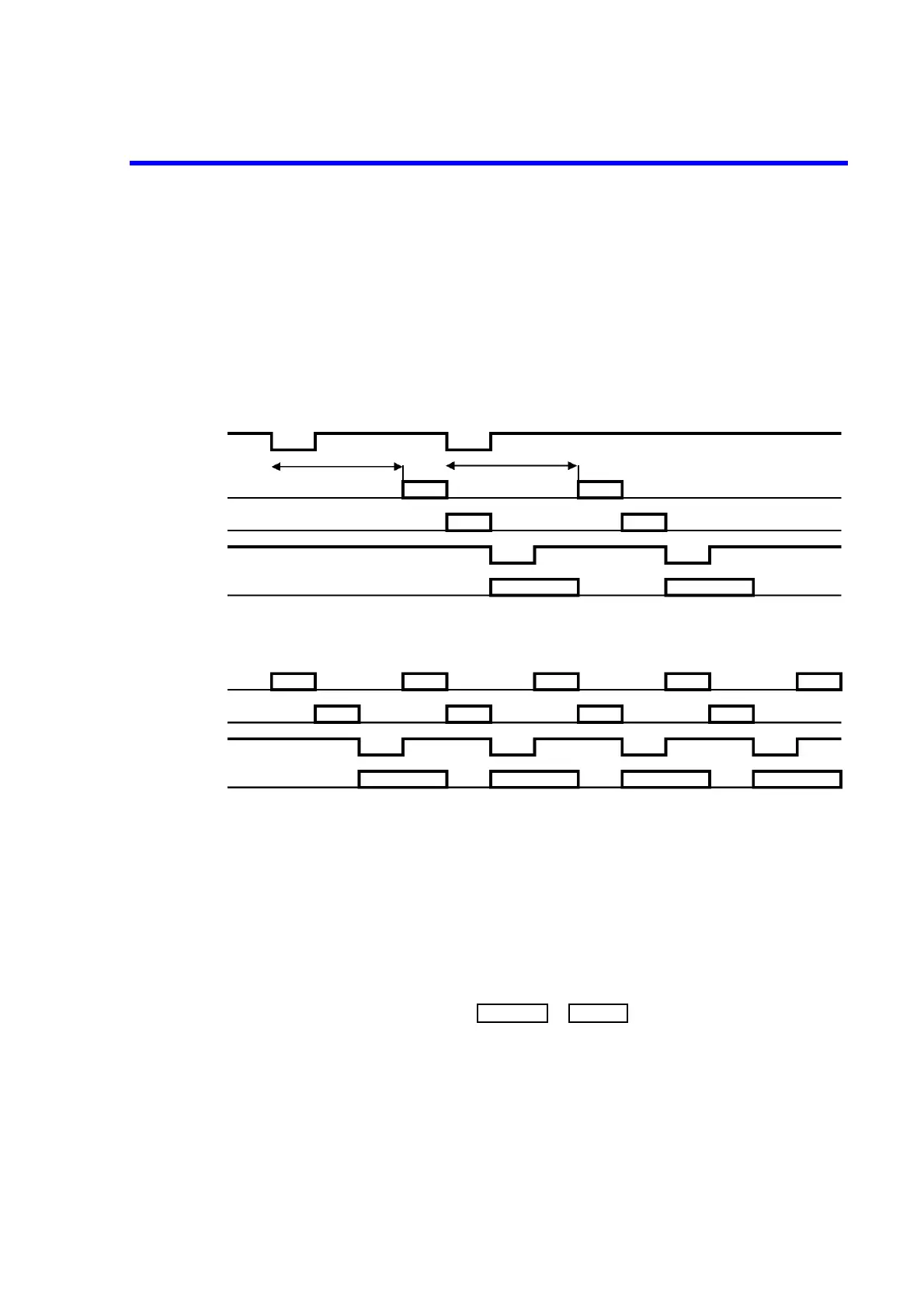

Figure 5-2 Measurement Sequence
5.7.1 Sampling Count Setting
Although sampling is usually performed once when a trigger is detected, sampling can be performed more
than once.
Enter the number of sampling in ‘N.Smpl’ in in .
Sampling count 1 to 20000 samples/trigger
(a) Hold on / Trigger
(b) Hold off
Trigger
Measurement
Calculation
Complete signal
Data output
Td (Trigger delay time)
Td (Trigger delay time)
Measurement 1
Measurement 2
Calculation
Calculation
Data 1 Data 2
Measurement
Calculation
Complete signal
Data output
Measurement 1 Measurement 2 Measurement 3 Measurement 4 Measurement 5
Calculation Calculation
Calculation
Calculation
Data 1 Data 2 Data 3 Data 4
To Next Page
