6.5.2 Measurement Complete Signal Terminal (COMPLETE OUT)
6-13
6.5.2 Measurement Complete Signal Terminal (COMPLETE OUT)
A negative logic pulse is output from the measurement complete signal terminal (COMPLETE OUT) on
the rear panel when the measurement is complete.
Pulse width: Approx. 100 sec
Approx. 900 s (7351E + Option 03)
The measurement complete signal can be used as the TTL level and input signals that can be directly con-
nected to the programmable controller.

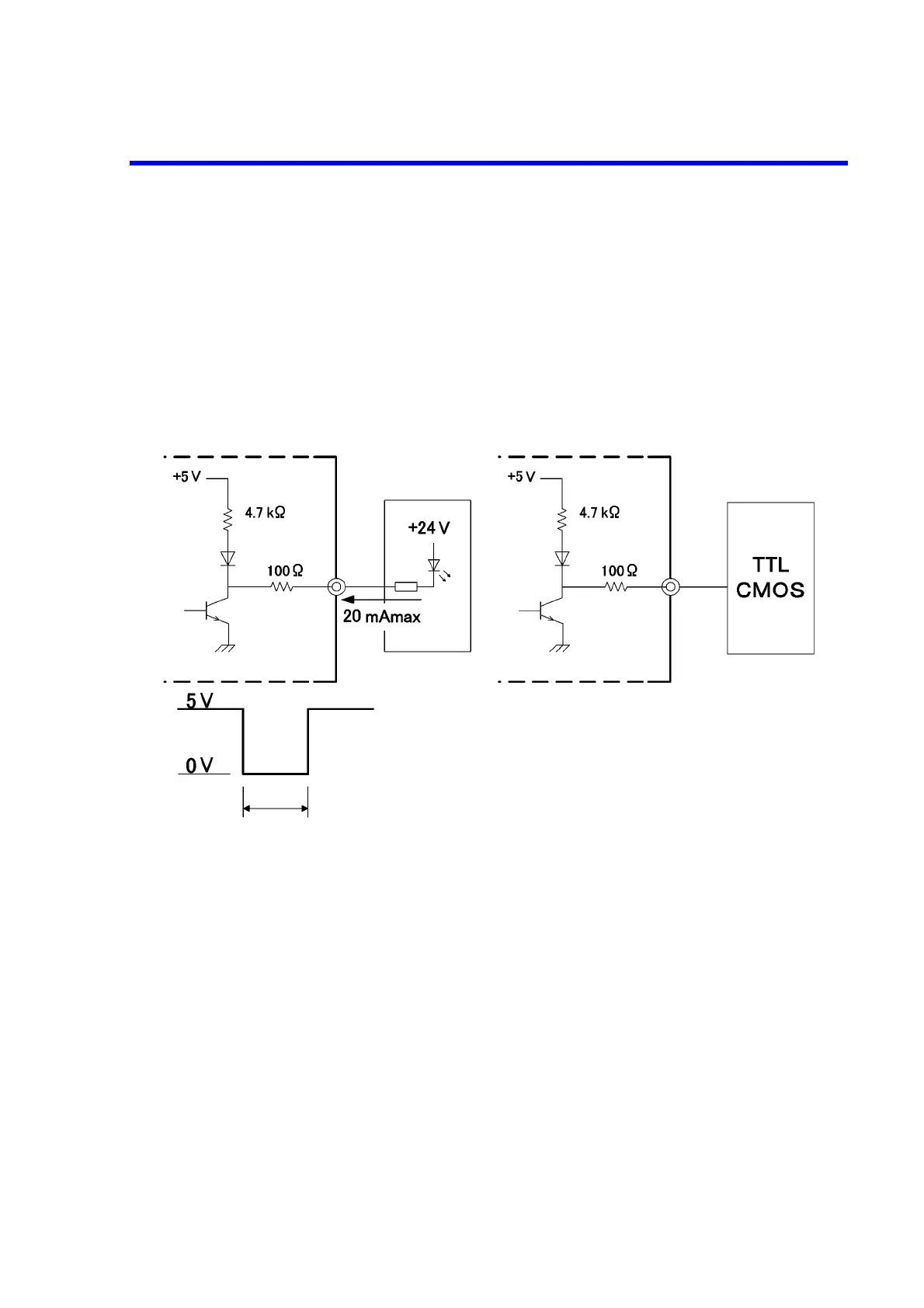

Figure 6-2 Simple Equivalent Circuit of Complete Signal Output Terminal
Approx. 100 s
Approx. 900 s (7351E + Option 03)
