 22.07 Constant frequency source 1
 0: Not selected ----- Initial value
 1: Selected
 2: DI1
 3: DI2
 4: DI3
 5: DI4
 6; DI5
 7: DI6
 8: DI7
 9: DI8
Selects the source of the constant frequency
 Set 0: Not selected
Always off
 Set 1: selected
Always on
 Set 2~9 : DI1~ DI8
It works by digital input which is selected
22.12
ON
ON
ON
ON
22.13
22.14
22.15
22.16
22.11
22.10
F
ON
ON
ON ON
Run command

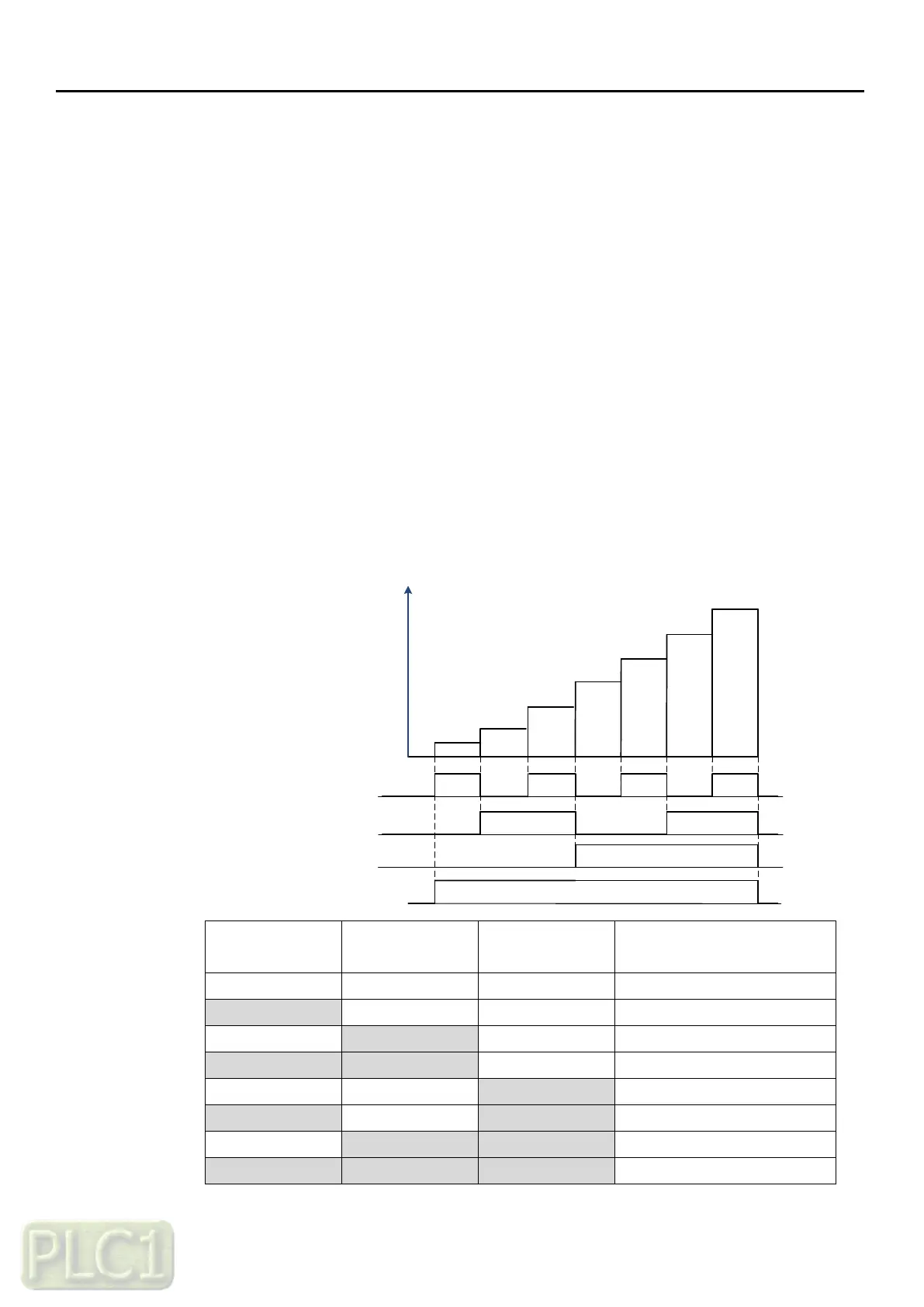

22.07 (Constant frequency source 1)
22.08 (Constant frequency source 2)
22.10 (Constant frequency 1)
22.11 (Constant frequency 2)
22.12 (Constant frequency 3)
22.13 (Constant frequency 4)
22.14 (Constant frequency 5)
22.15 (Constant frequency 6)
22.16 (Constant frequency 7)
22.09 (Constant frequency source 3)
Source defined
by par '22.07'
Source defined
by par '22.08'
Source defined
by par '22.09'
Constant frequency
active
OFF
OFF
OFF
None
ON
OFF
OFF
'22.10' (Constant frequency1)
OFF
ON
OFF
'22.11' (Constant frequency2)
ON
ON
OFF
'22.12' (Constant frequency3)
OFF
OFF
ON
'22.13' (Constant frequency4)
ON
OFF
ON
'22.14' (Constant frequency5)
OFF
ON
ON
'22.15' (Constant frequency6)
ON
ON
ON
'22.16' (Constant frequency7)
