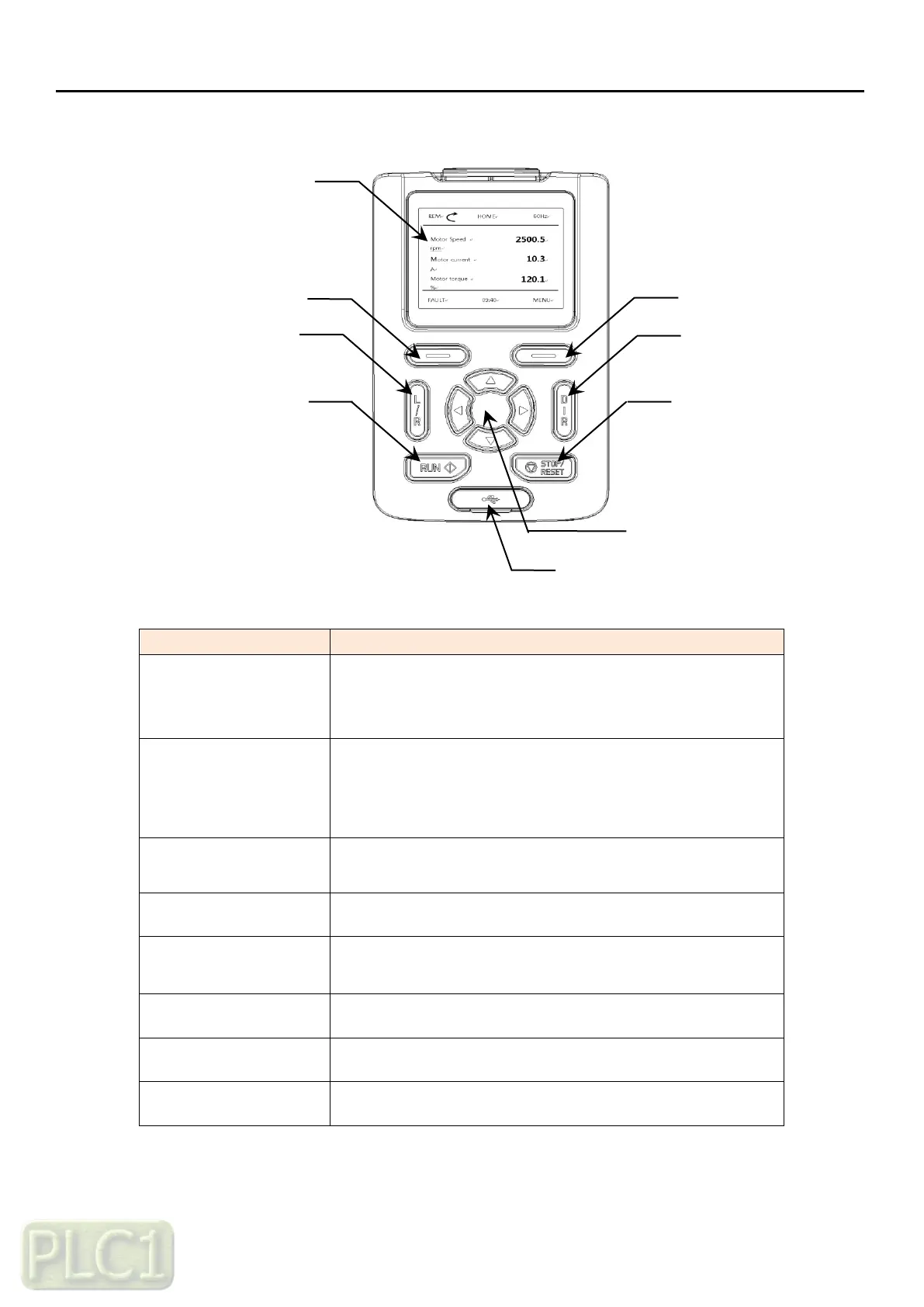

3) Configuration of LCD Keypad
KEY
Function
Left key
• Move to fault history
• previous
• Cancel at setting mode
Right key
• Move to menu
• Reset the fault when the fault is occurred
• Select the parameters
• Save the value of parameter
Arrow keys
• Move to display or group
• Move the position when set the parameter value
Dir key
• Change the direction at local mode
Mode key
• Change local or remote mode
• Start/Stop/Dir keys enable at local mode
Start key
• Start the VFD at local mode
Stop key
• Stop the VFD at local mode
Mini USB
Communicate with PC tool
Left Key
Local/Remote key
Right Key
Direction Key
Stop/Reset Key
Arrow Key
Mini USB
Run Key
LCD
