Aesus AESFill AF1 - Figure 2-3: Rear of Aesfill AF1

AESFill AF1C Machine Manual 11/58 General Description
5. As standard the AF1 is equipped with a 12 L/min AESPump. Also available is the 24 L/min pump. The pump can be rotated
360 degrees around its axis.
6. Power cord plug and On/Off Switch. Please check the rating plate for the voltage of your machine.
7. There is a 19 pin communication port and a 5 pin communication port. The 5 pin communication port is for connecting to
the foot pedal as well as networking AF1 machines together. The 19 pin communication port is for communication with
different automation options such as gating and a dive kit. The 19 pin communication port is also used in networking AF1
machines together.
Power Chord Plug
Exhaust Muffler
Black & Blue
Nozzle air
connections
Rating Plate
19 Pin
Communication
Cable Port
On/Off Switch

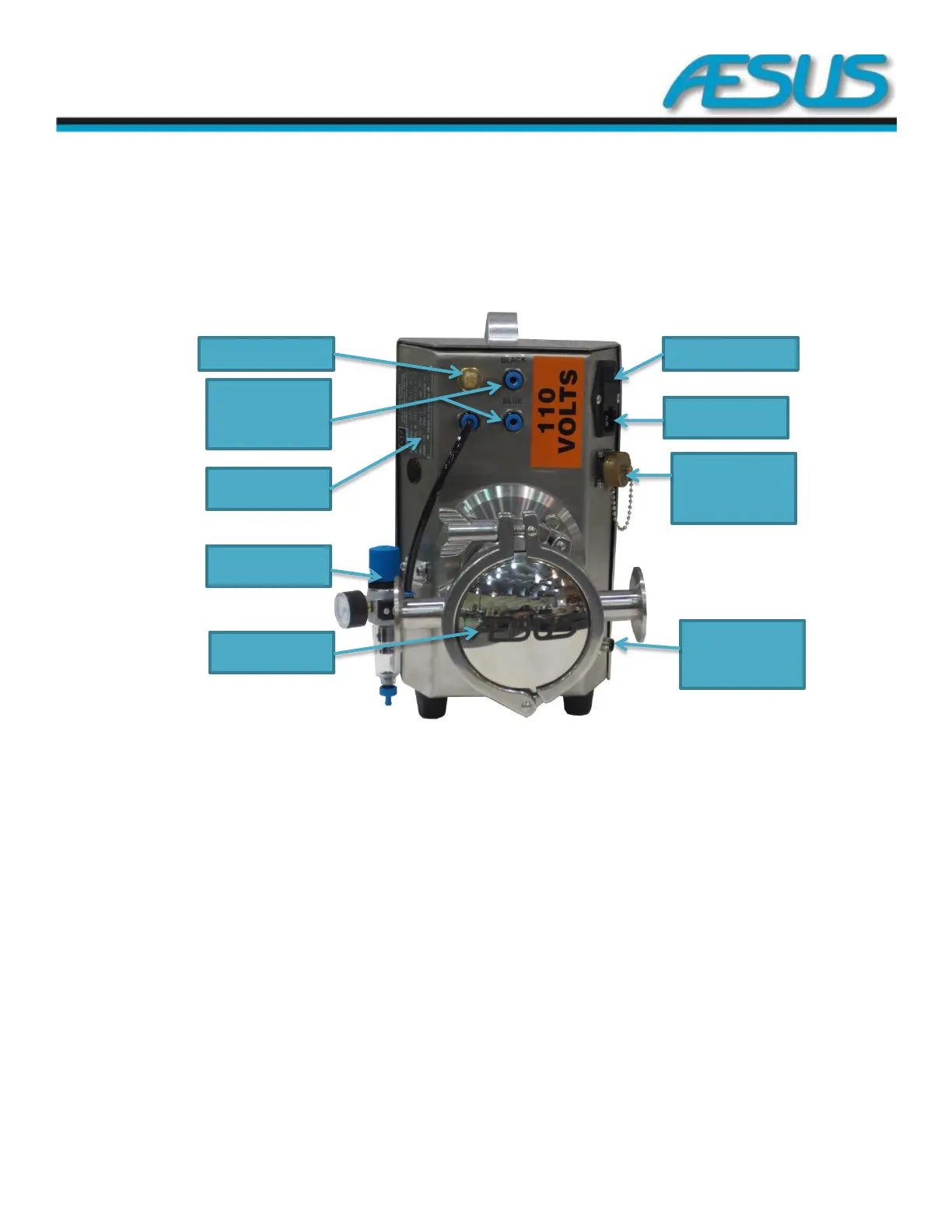

Figure 2-3: Rear of AESFill AF1
Air Regulator
5 Pin
Communication
Cable Port
AESPump
