AESFill AF1C Machine Manual 36/58 Screens
Press the arrow to the right key to access more dive related
settings.
Press the arrow to the left key to go back to the neck delay
screen.
7.13.8 Container height

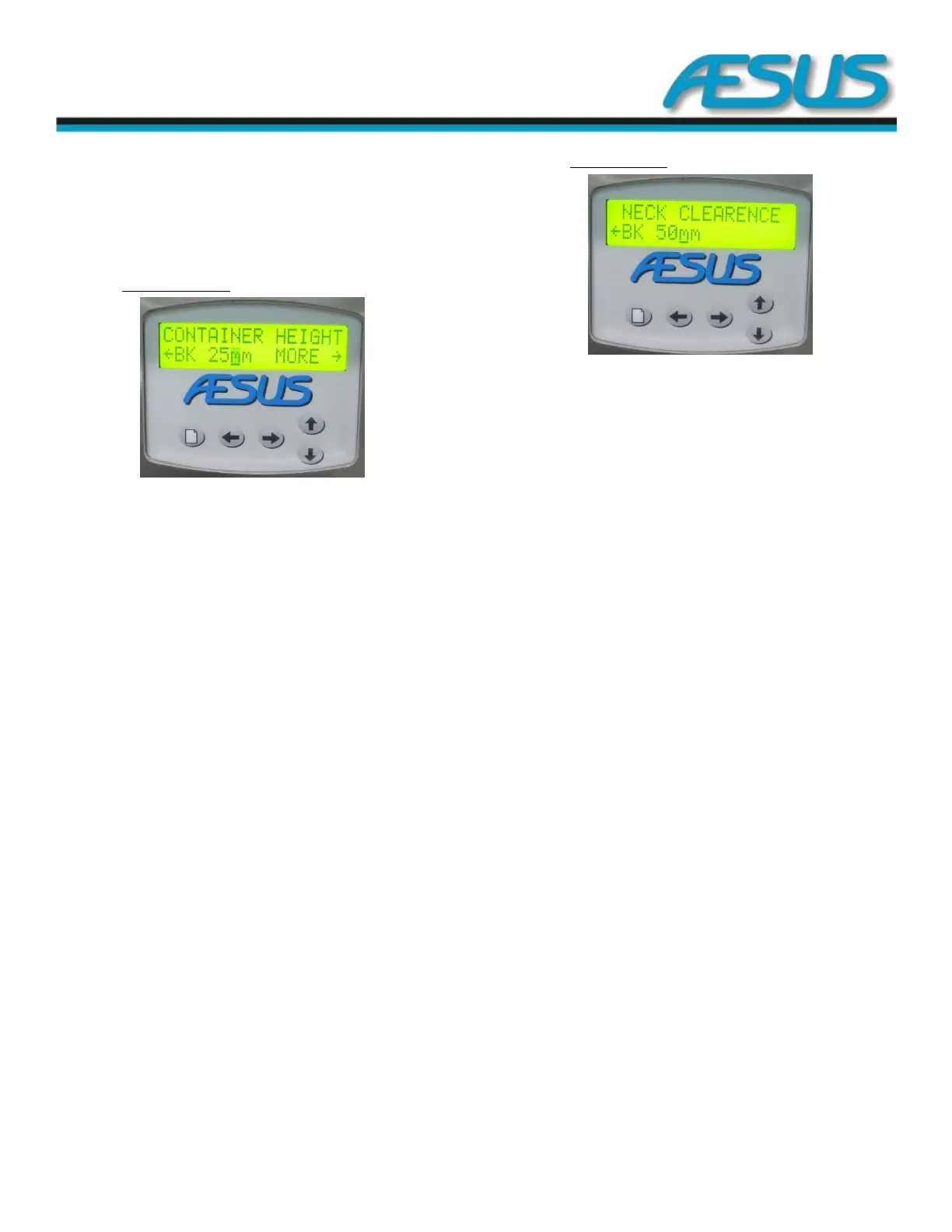

Figure 7-26: Container height Screen
Use the up and down arrow keys to adjust the height of the
filling stop point this is where the nozzle will be when the
filling is completed. The setting can vary from 25 mm to
200 mm. The full length of the nozzle is 200 mm.
Press the arrow to the right key to access more dive related
settings.
Press the arrow to the left key to go back to the neck clamp
screen.
7.13.9 Neck clearance
Figure 7-27: Neck Clearance Screen
Use the up and down arrow keys to adjust the travel of the
nozzle bar to clear the neck and let the containers exit the
filling area. The setting can vary from 5 mm to 50 mm.
Press the arrow to the left key to go back to the Container
height screen.
