Delta AESFill AF4 ā 12 Machine Manual 26/58 Setup

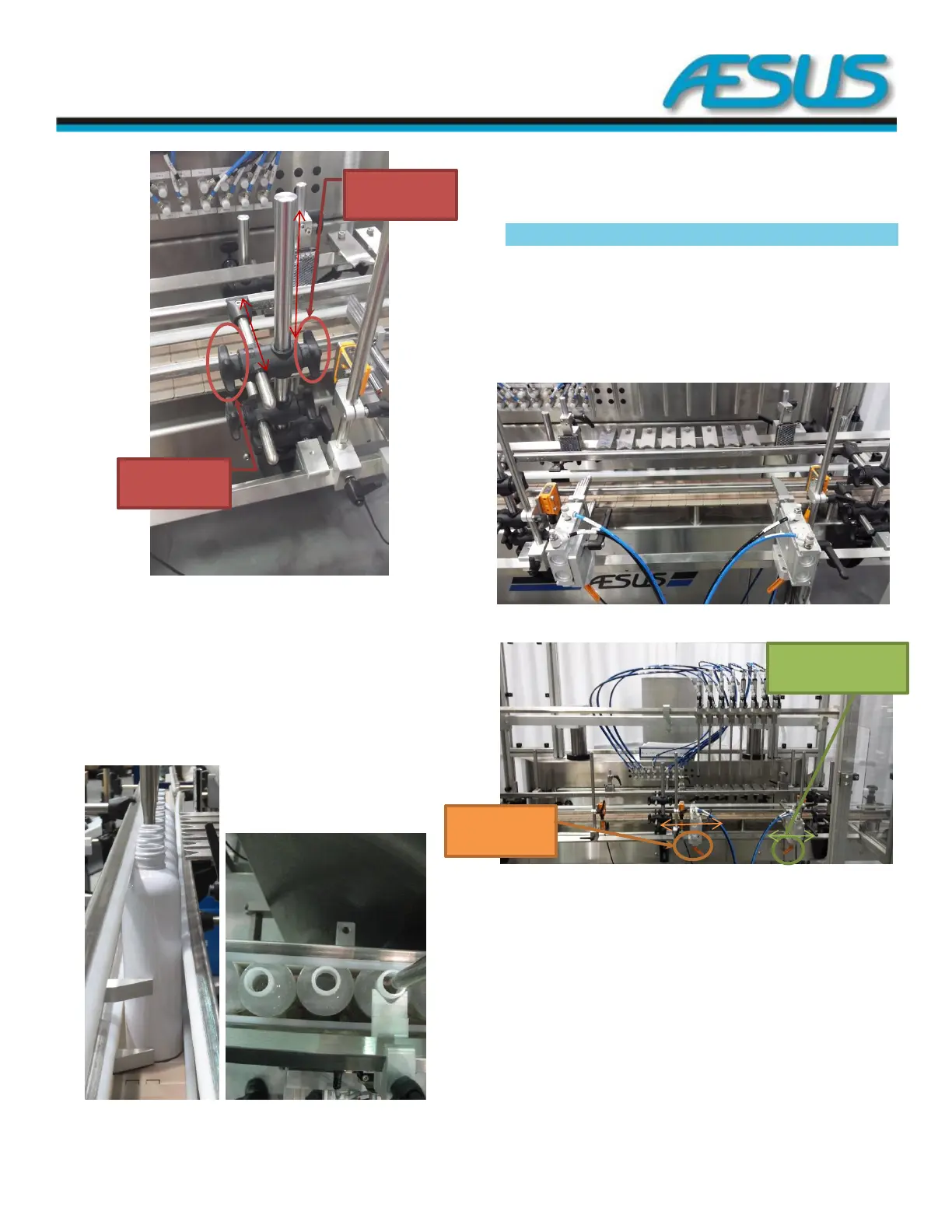

Figure 6-10: Guide rails Adjustment 2
c. Adjust the two bottom guide rails so the containers are
centred underneath each individual nozzle.
d. Tighten the black knob to fix the bottom guide rails
position.
e. Then adjust the top front guide rail so that it is positioned
on a convenient portion of the neck of the container.
f. Tighten those black knobs as well.
Figure 6-11: Bottle placement
**NOTE: The pictures included in this section may not be exactly the
same as your machine depending on your configuration.
Gates adjustments 6.5
This filling machine is equipped with a set of gates to control
the infeed of bottles under the nozzles and also allow the
right amount of bottle to be filled at the same time.
Those gates need to be adjusted in the sideways position
along the conveyor.
Figure 6-12: Gates final position
Figure 6-13: Infeed/Outfeed gate adjustment
a. Adjust the gates so that the container(s) are located in the
filling area of the machine.
b. Place the number of containers to be filled onto the
conveyor between the two gates.
c. Adjust the outfeed gate so that it extends slightly past the
centre of the container.
