Aesus AESFill AF1 - Pump 3 Profile Filling Setup Screen (Optional)

AESFill AF1C Machine Manual 44/58 Cleaning & Accessories
ON/OFF: Enables or disables the profile filling for pump 2.
Start Speed (%): This represents a % of the pump set speed
for the beginning of the dispense process for pump 2.
Duration (%): This represents a % of the full-filling volume for
which you want to keep the start speed for pump 2.
End Speed (%): This represents a % of the pump set speed for
the end of the dispense process for pump 2.
Duration (%): This represents a % of the full-filling volume for
which you want to keep the end speed for pump 2.
**NOTE: The combine % of both duration can be more than
100%.
: Allow to go back to the previous page or go to
the next.
Bottom Banner: Change menu

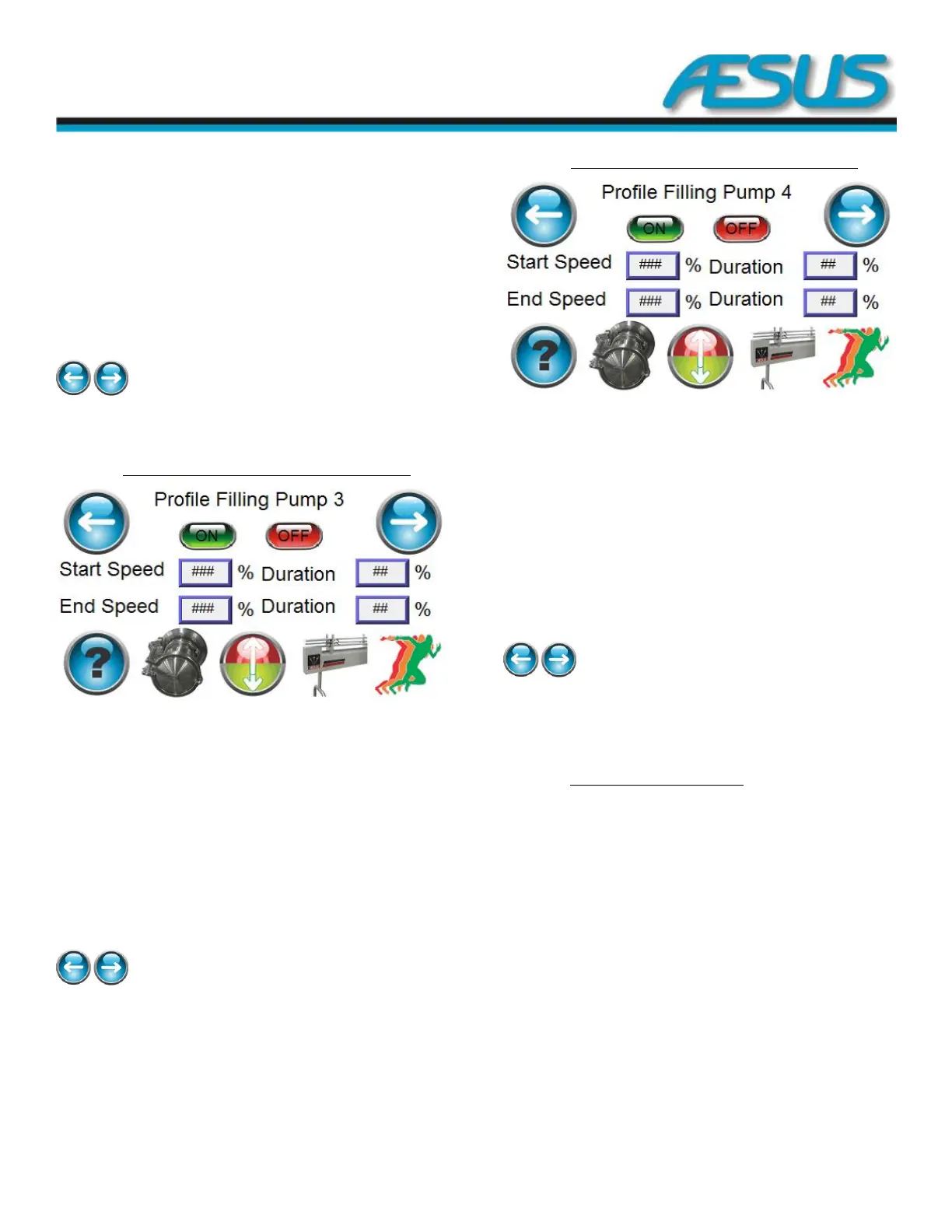

8.1.7.2 Pump 3 Profile Filling Setup Screen (Optional)
Figure 8-16: Pump 3 Profile Filling Setup Screen
ON/OFF: Enables or disables the profile filling for pump 3.
Start Speed (%): This represents a % of the pump set speed
for the beginning of the dispense process for pump 3.
Duration (%): This represents a % of the full-filling volume for
which you want to keep the start speed for pump 3.
End Speed (%): This represents a % of the pump set speed for
the end of the dispense process for pump 3.
Duration (%): This represents a % of the full-filling volume for
which you want to keep the end speed for pump 3.
**NOTE: The combine % of both duration can be more than
100%.
: Allow to go back to the previous page or go to
the next.
Bottom Banner: Change menu
8.1.7.3 Pump 4 Profile Filling Setup Screen (Optional)
Figure 8-17: Pump 4 Profile Filling Setup Screen
ON/OFF: Enables or disables the profile filling for pump 4.
Start Speed (%): This represents a % of the pump set speed
for the beginning of the dispense process for pump 4.
Duration (%): This represents a % of the full-filling volume for
which you want to keep the start speed for pump 4.
End Speed (%): This represents a % of the pump set speed for
the end of the dispense process for pump 4.
Duration (%): This represents a % of the full-filling volume for
which you want to keep the end speed for pump 4.
**NOTE: The combine % of both duration can be more than
100%.
: Allow to go back to the previous page or go to
the next.
Bottom Banner: Change menu
8.1.8 Profile Lifting Setup Screen
The Profile Lifting makes it possible for the nozzle to follow
the liquid level as it rises inside the container. 3 steps can be
used but only 2 can be programmed.
The height of the nozzle bar is always calculated at every
filling pulse. It will lift in a linear fashion between steps until it
reaches the next step.
