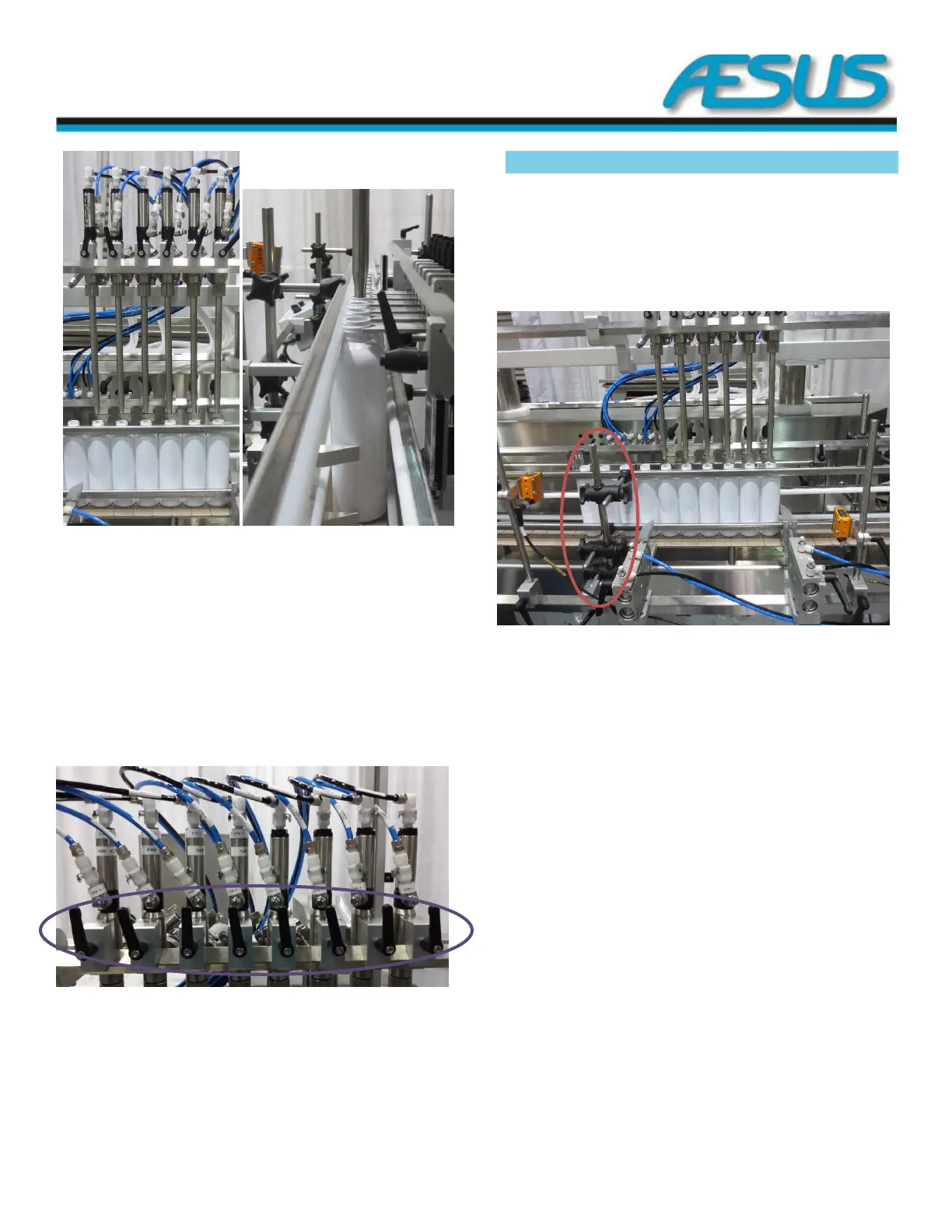

Figure 6-7: Nozzles adjustment
**NOTE: The pictures included in this section may not be exactly the
same as your machine depending on your configuration.
Follow the next step to adjust the nozzles correctly:
a. Unscrew the black handle of each nozzle.
b. Align each nozzle with the centre of the neck of the
container it will fill when the neck clamp is engaged.
c. Tighten the black handle to fix the nozzle position.
d. Repeat for all nozzles.
e. Turn off the neck clamp in the setup screen.
Figure 6-8: Nozzles adjustment 2
Guide rails adjustments 6.4
The AESFill comes with a conveyor to get the bottle to the
filling machine. For each different size of bottle the guide
rails need to be correctly adjusted.
Each guard rail will need to be adjusted in height and in the
IN/OUT position.
Figure 6-9: Guide rails Adjustment
**NOTE: The pictures included in this section may not be exactly the
same as your machine depending on your configuration.
a. Put some container on the conveyor underneath the
nozzles.
b. Unscrew every black knob that controls the rails
movement.
