Delta AESFill AF4 ā 12 Machine Manual 24/58 Setup

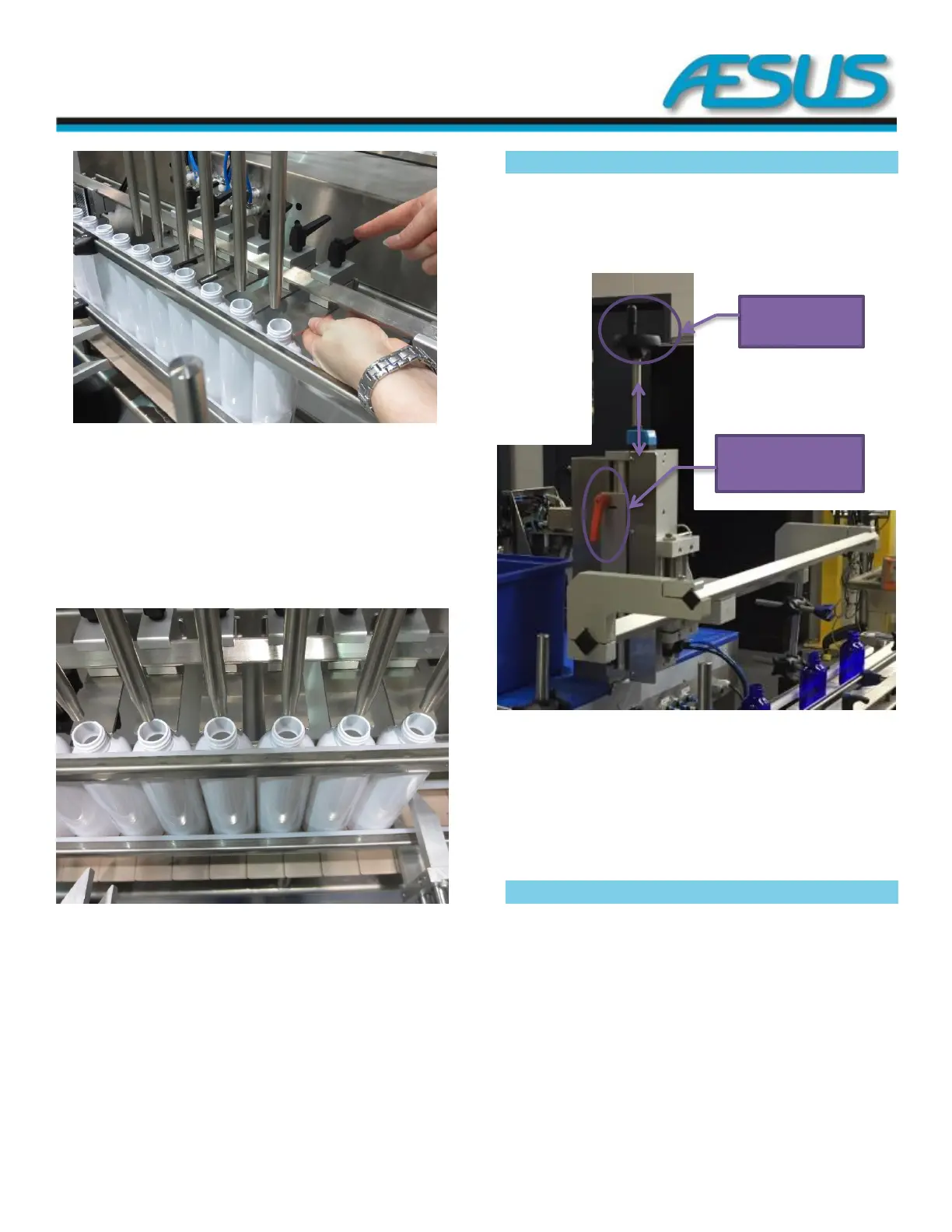

Figure 6-4: Neck clamps Sideway adjustment 3
**NOTE: The pictures included in this section may not be exactly the
same as your machine depending on your configuration.
c. Move the entire neck clamp assembly in so that you can
adjust the individual neck clamps to their associated
container. Tighten the ratchet handle. The neck clamp
should be centred with the neck of the container.
Figure 6-5: Neck clamps Sideway adjustment 4
**NOTE: The pictures included in this section may not be exactly the
same as your machine depending on your configuration.
d. Turn the conveyor on and test the neck clamps. You may
need to fine-tune the neck clamp positions after the
conveyor is moving.
Nozzle Barre Adjustment 6.2
The nozzle barre is used to attach the nozzle. This barre will
move automatically in synch with the gating system, but the
general height of the barre needs to be manually adjusted to
fit the size of the bottle to fill.
Figure 6-6: Nozzle barre adjustment
To adjust:
1. Unscrew the orange ratchet handle.
2. Use the black crank to adjust the height.
3. Tighten the orange ratchet handle to fix the nozzle
barre position.
Nozzles Adjustment 6.3
Like for the neck clamp, the nozzles need to be adjusted so
they are perfectly aligned with the opening of the bottles.
Each nozzle needs to be individually adjusted in the sideways
position along the nozzle bar.
