AESFill AF1C Machine Manual 18/58 Installation
Positioning the Equipment 4.3
As shown below, the AESFill AF1 can be positioned on any flat surface to facilitate your filling operation. It is better to position any
infeed tank so that it is at the same level as the pump to make priming easier. If your product is very thick, it may be best to use an
overhead hopper instead of a filling tank.
As shown below, when attaching multiple AESFill AF1s to a holding tank, do not use “tees” or Y-connections. This can result in
inadequate supply volume, causing inconsistent fills, and may cause starvation to a pump, resulting in damage. Each AESFill AF1
should have its own connection to the tank.

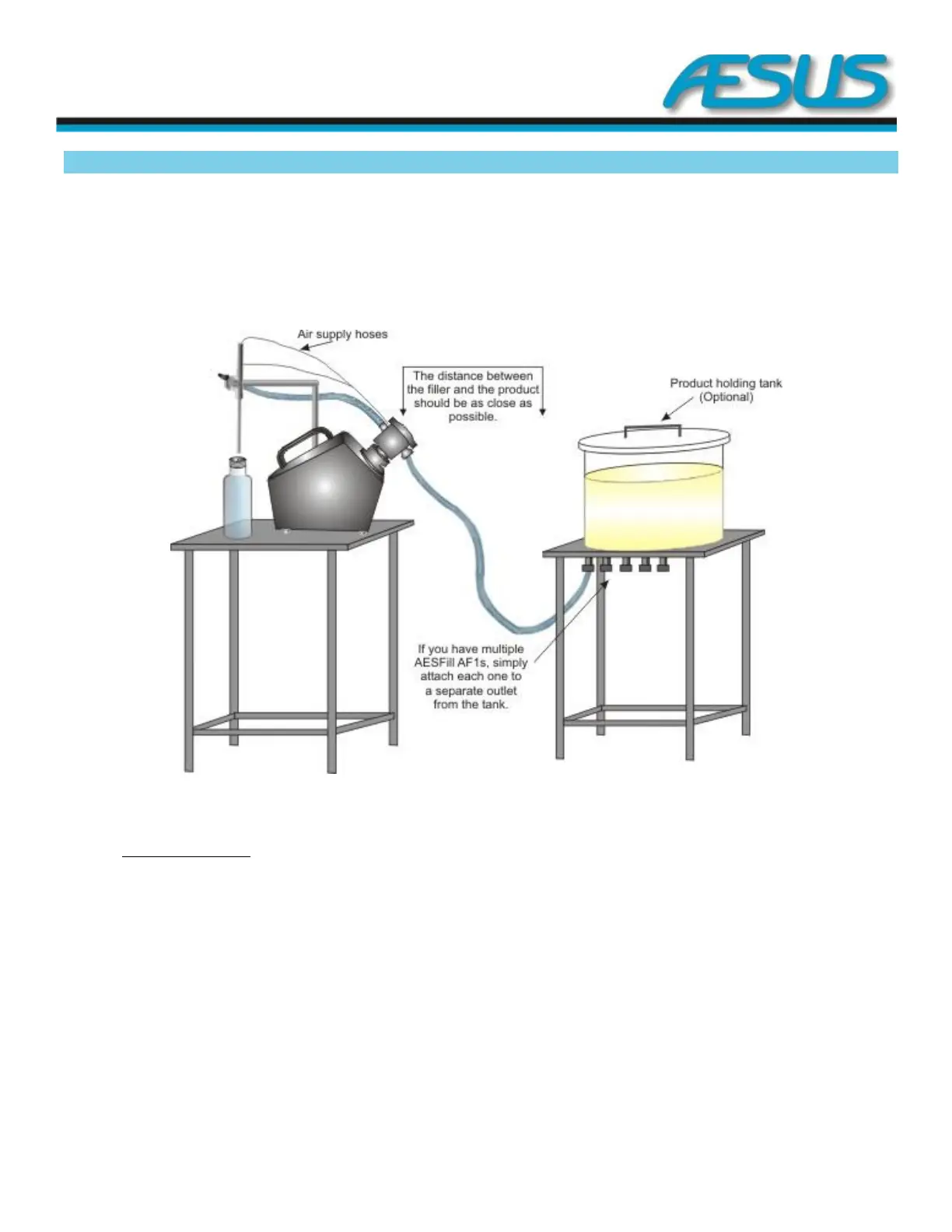

Figure 4-13: Position of the equipment
4.3.1 Height Adjustments
You can raise and lower the nozzle bar attached to the AESFill AF1, so that the nozzle is at the appropriate height for the bottles
that you are filling by loosening the black ratchet handle and sliding the nozzle bar up or down.
